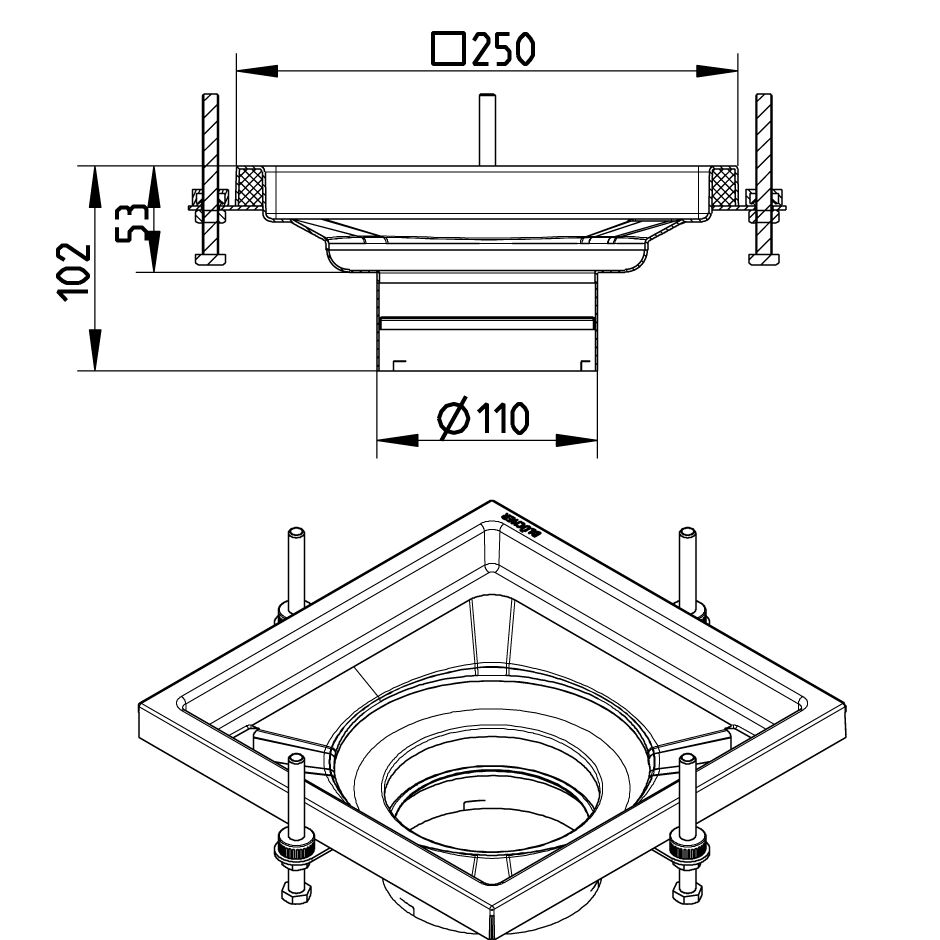

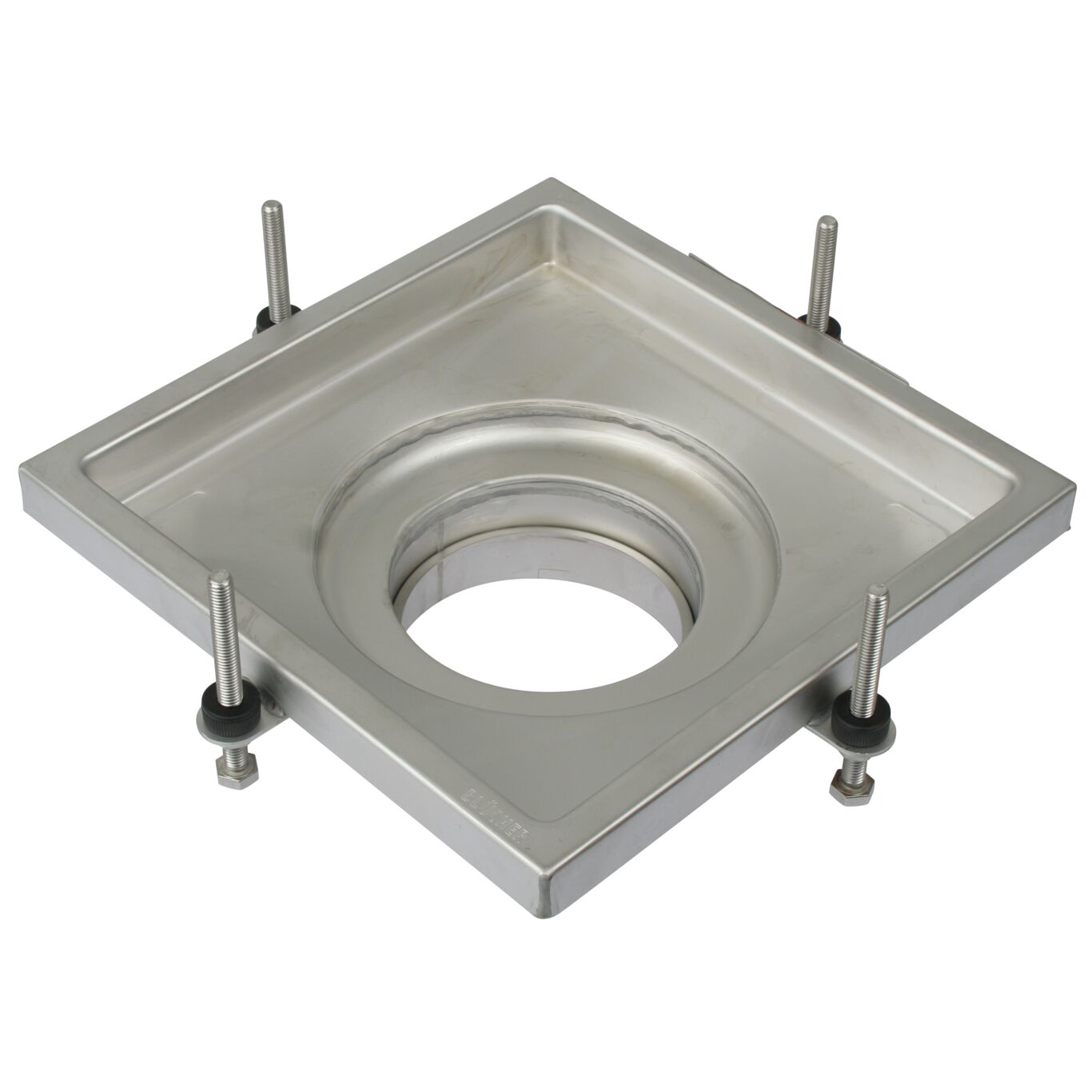

UPPER PART - (710.401.000)
×
![]()
Part Of the Series: Upper part-No membrane-250
Type no.: 710.401.000
EAN no.: 5705499128765
Size: 250x250
UPPER PART
-With supporting ring for water trap
-Floor: concrete and tiled
-Frame: 250x250mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 250x250 |
| Weight (kg) | 1,87 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
