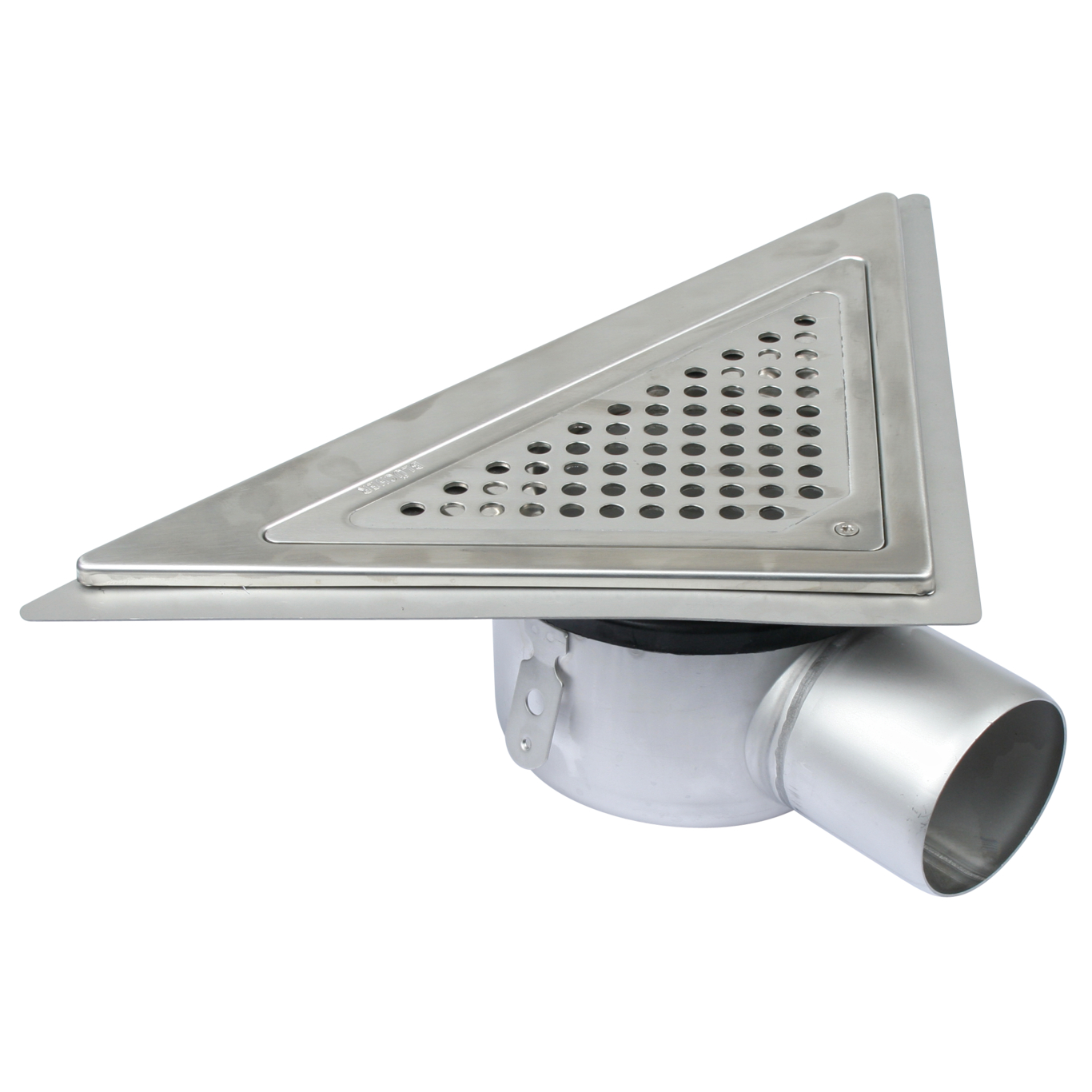

ADJUSTABLE SHOWER DRAIN TRIO - (310.370.075)

Part Of the Series: Drain-Liquid membrane-Triangular

Type no.: 310.370.075

EAN no.: 5705499120073

VVS no.: 153300113

RSK no.: 7119813

NRF no.: 3394621

Product Specification
Floor Concrete / Tiled
Installation Along wall
Load Class EN1253 K3
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 149
Membrane Type Liquid Membrane
Minimum Height (mm) 119
Number of Inlets 0
Number of Screw Holes 1
Outlet Diameter (mm) 75
Outlet Direction Horizontal
Shape Triangular
Weight (kg) 1,80
