ADJUSTABLE SHOWER DRAIN TRIO - (355.370.110)
Part Of the Series: Drain-Liquid membrane-Triangular
Type no.: 355.370.110
EAN no.: 5705499120172
VVS no.: 153305116

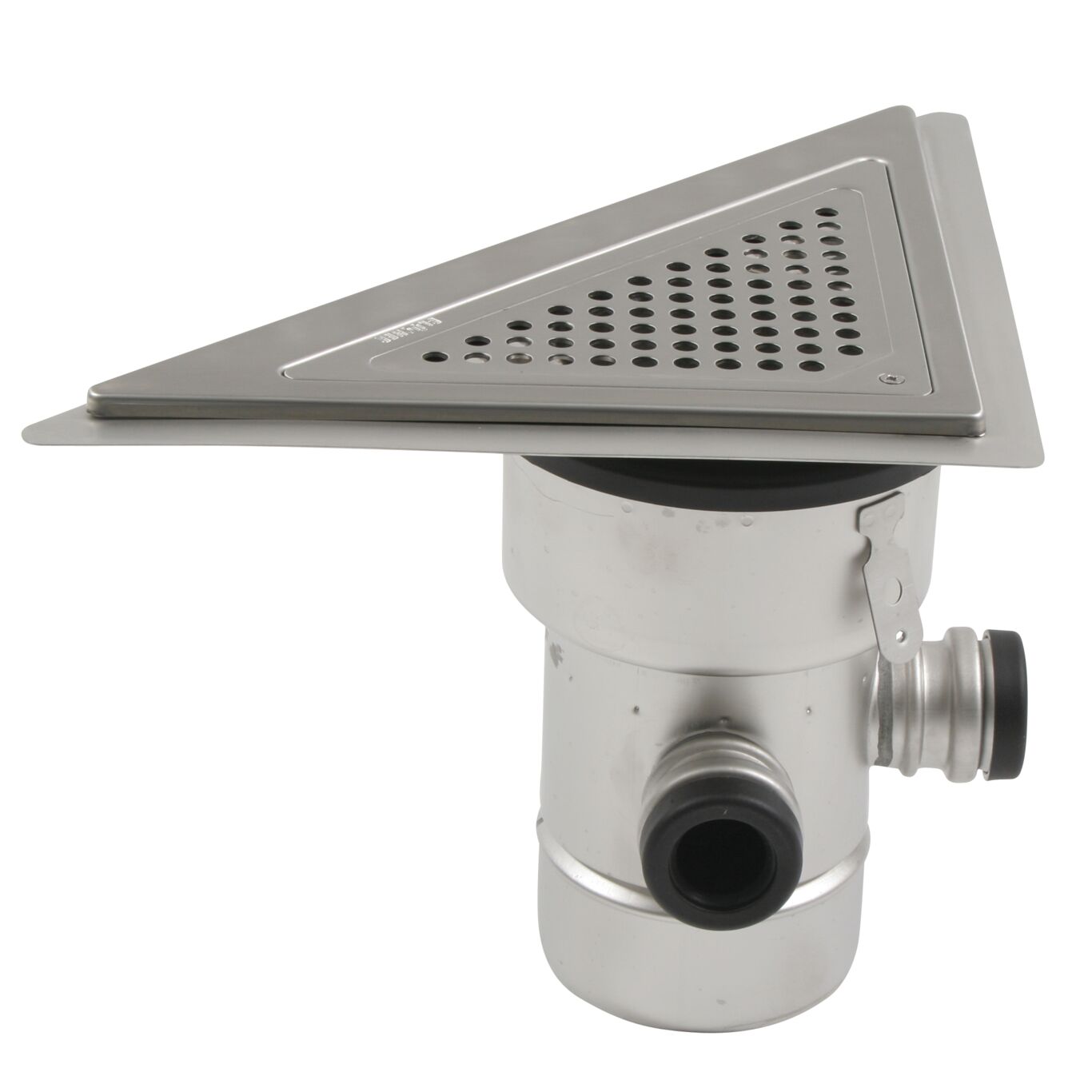

ADJUSTABLE SHOWER DRAIN TRIO
-With side inlets, for installation along wall
-Floor: concrete and tiled
-Liquid membrane, frame: triangular
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Installation | Along wall |
Load Class EN1253 | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 264 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 234 |
Number of Inlets | 2 (Ø32/40mm) |
Number of Screw Holes | 1 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Triangular |
Weight (kg) | 2,14 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
