MINI SHOWER DRAIN TRIO - (381.370.032)
×
![]()
Part Of the Series: Drain-Liquid membrane-Triangular
Type no.: 381.370.032
EAN no.: 5705499120196
VVS no.: 153300110
RSK no.: 7119825
NRF no.: 3394627

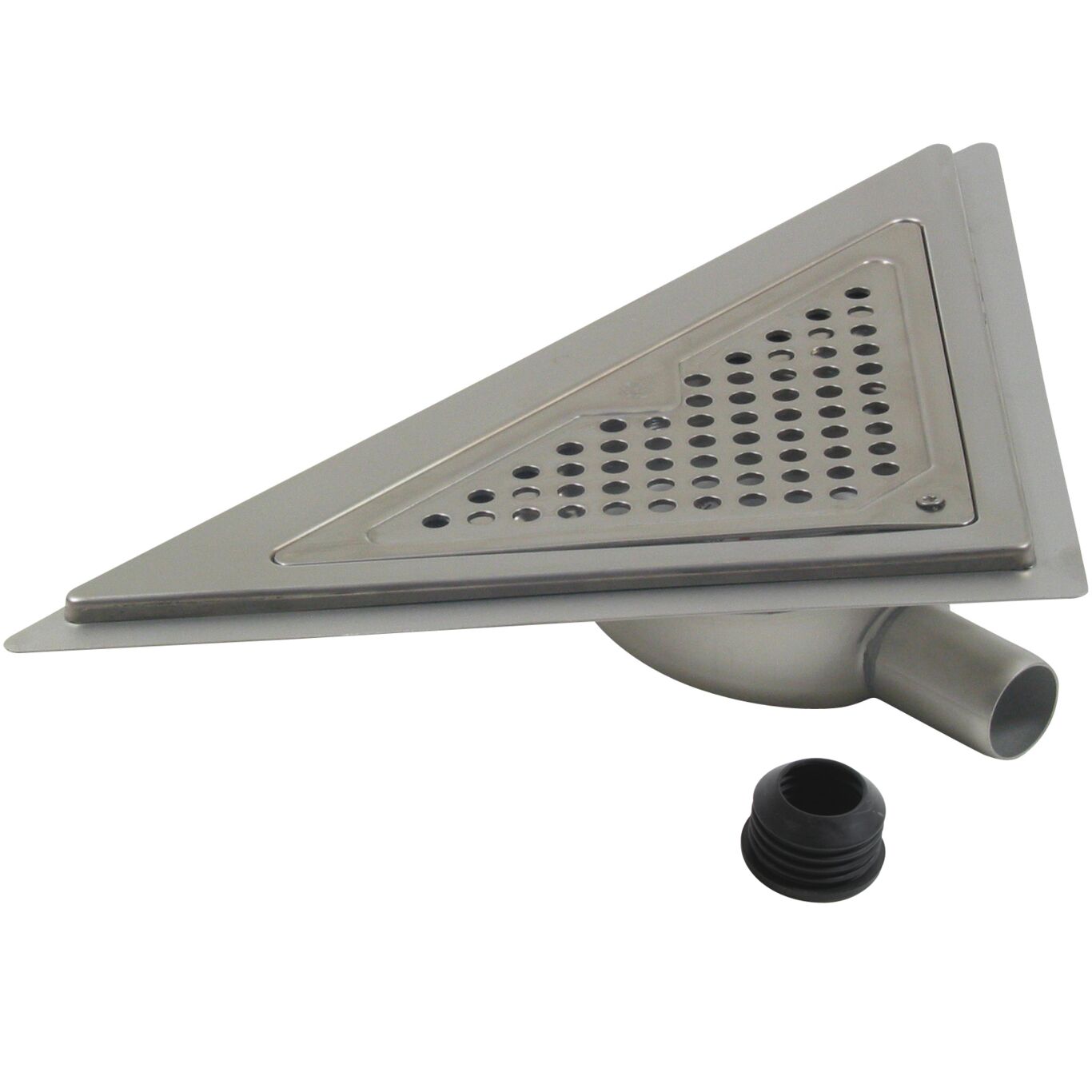

MINI SHOWER DRAIN TRIO
-For installation along wall, removable water trap cannot be used
-Floor: concrete and tiled
-Liquid membrane, frame: triangular
-Outlet: Ø32/40mm, horizontal
-Stainless steel: AISI304/EN1.4301

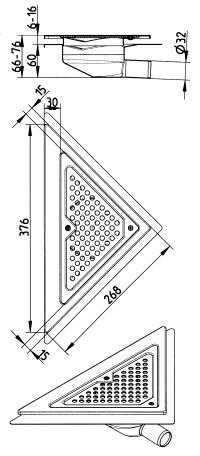

| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Installation | Along wall |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 76 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 66 |
| Number of Inlets | 0 |
| Number of Screw Holes | 1 |
| Outlet Diameter (mm) | 32 |
| Outlet Direction | Horizontal |
| Shape | Triangular |
| Weight (kg) | 1,12 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
