HYGIENICPRO GRATING CHANNEL - (697.250.150.57)
Part Of the Series: Grating-Channel-150
Type no.: 697.250.150.57
EAN no.: 5705499137910
VVS no.: 155086057
NRF no.: 3397183
LVI no.: 3305737
Size: 150x500
HYGIENICPRO GRATING CHANNEL
-Rounded in one end

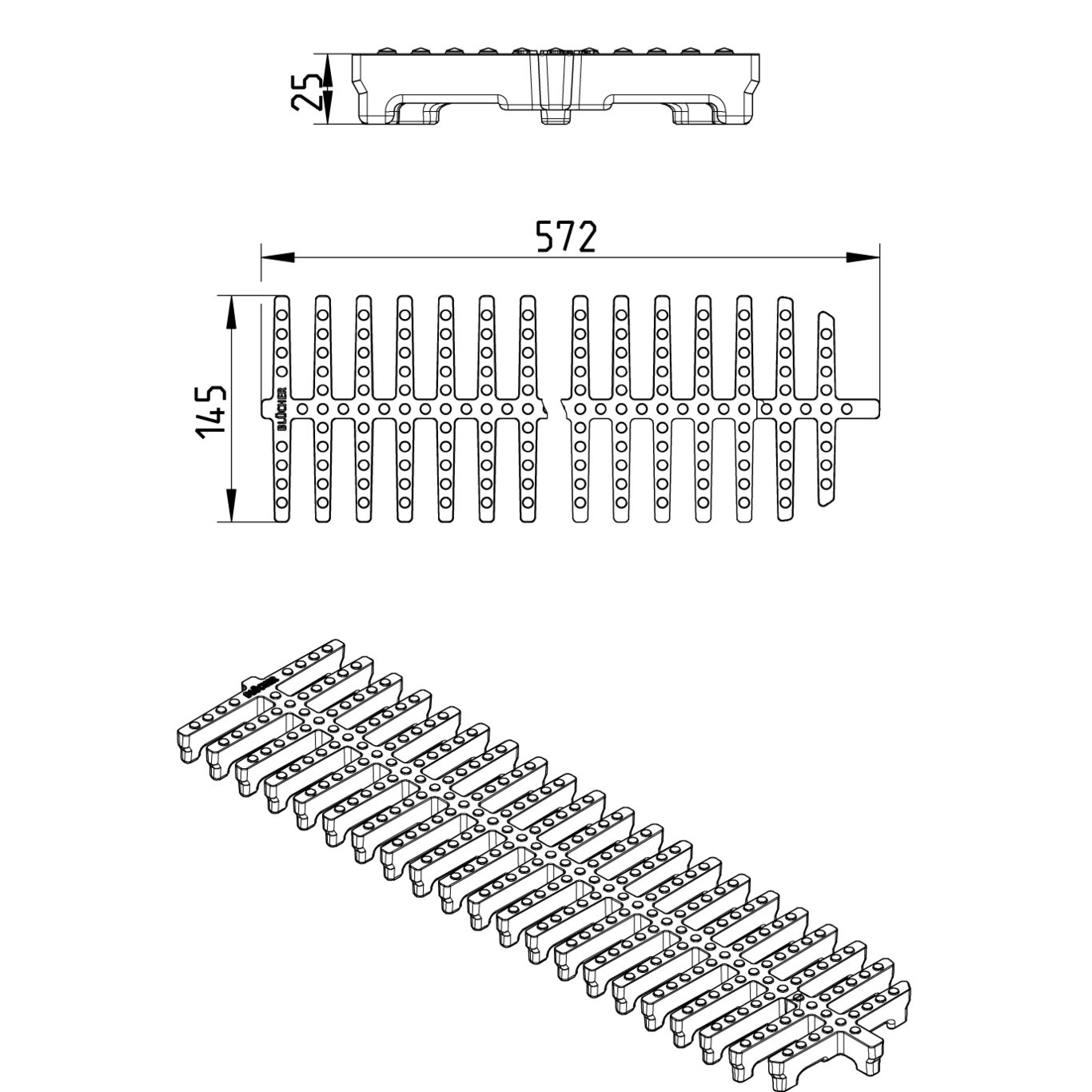

-Grating: 145x573mm
-Stainless steel: AISI304C/EN1.4308
Product Specification | |
---|---|
Load Class EN1253 | M125 |
Load Class EN1253 (kg) | M125 (10000) |
Load Class EN1433 | C250 |
Load Class EN1433 (kg) | C250 (16.666) |
Material | AISI 304C |
Material (EN) | EN 1.4308 |
Minimum Height (mm) | 25 |
Non-slip | R10 |
Number of Screws | 0 |
Shape | Rectangular |
Size (mm) | 150x500 |
Weight (kg) | 5,28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
