SHOWER GRATING CHANNEL - (697.015.150.99 S)
Part Of the Series: Grating-Channel-150
Type no.: 697.015.150.99 S
EAN no.: 5705499117400
Size: 150x1000

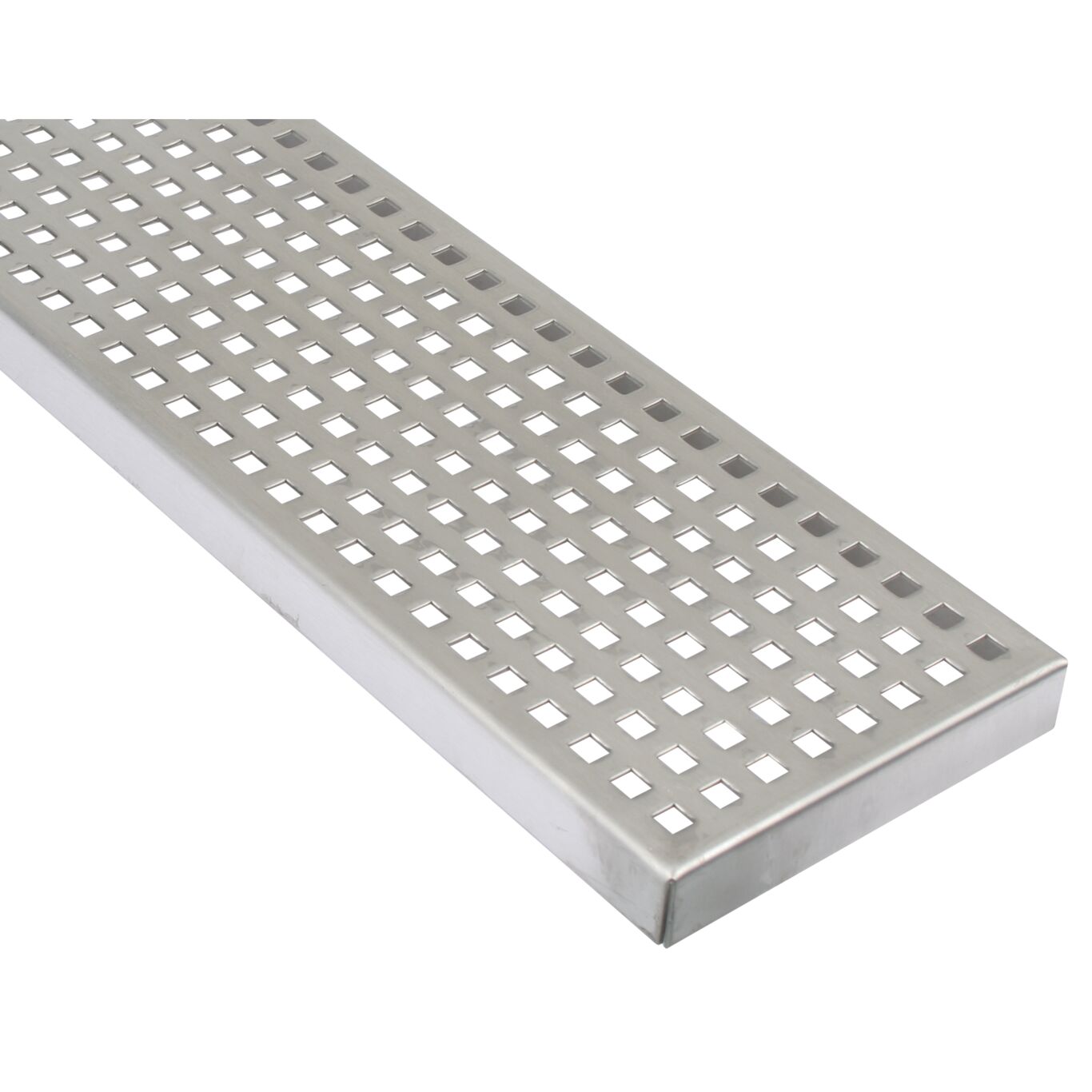

SHOWER GRATING CHANNEL

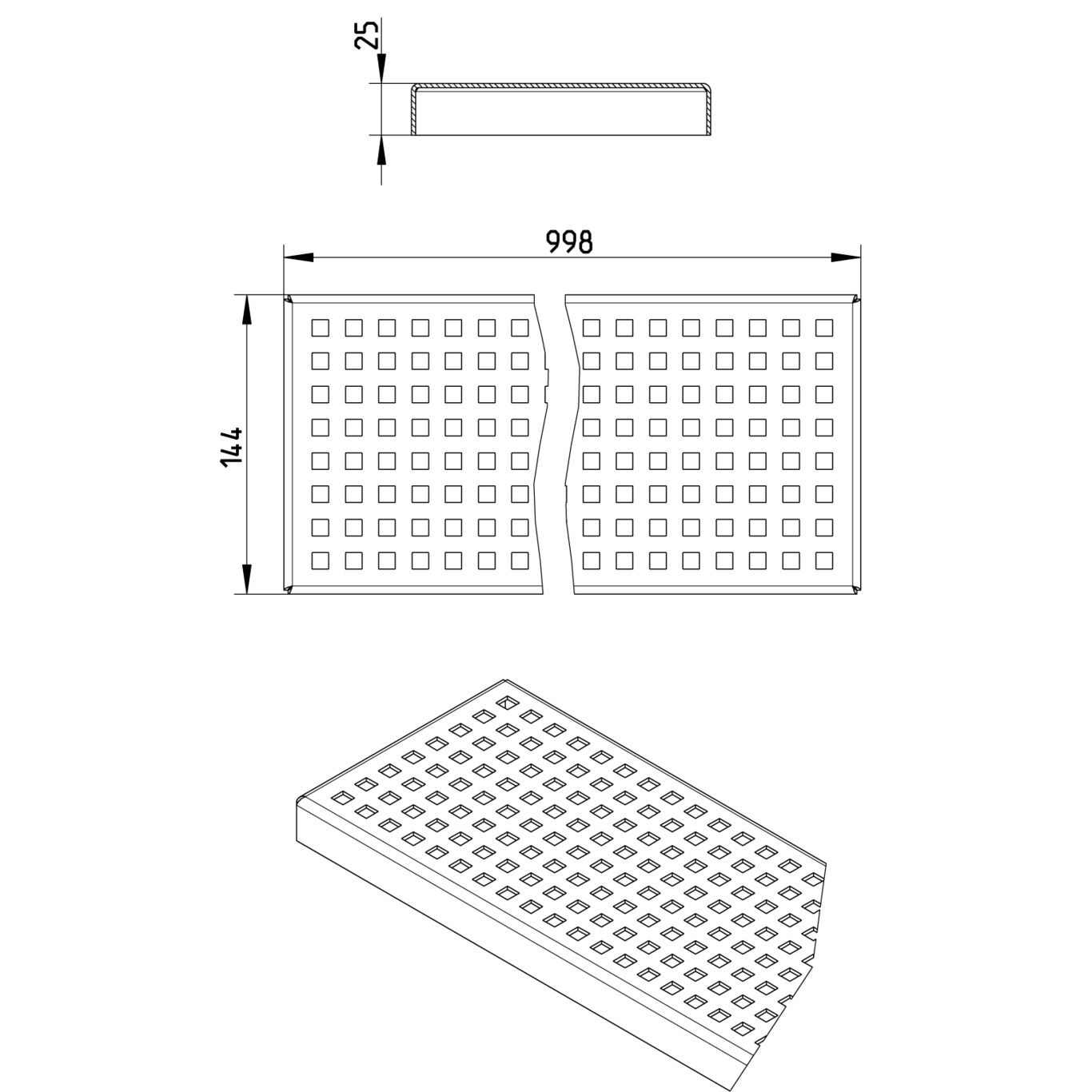

-Grating: 144x998mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 (500) |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 25 |
Non-slip | R10 |
Number of Screws | 0 |
Shape | Rectangular |
Size (mm) | 150x1000 |
Weight (kg) | 2,55 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
