TILED/EPOXY GRATING CHANNEL - (697.020.150.49)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.020.150.49
EAN no.: 5705499128574
NRF no.: 3397158
Size: 150x500

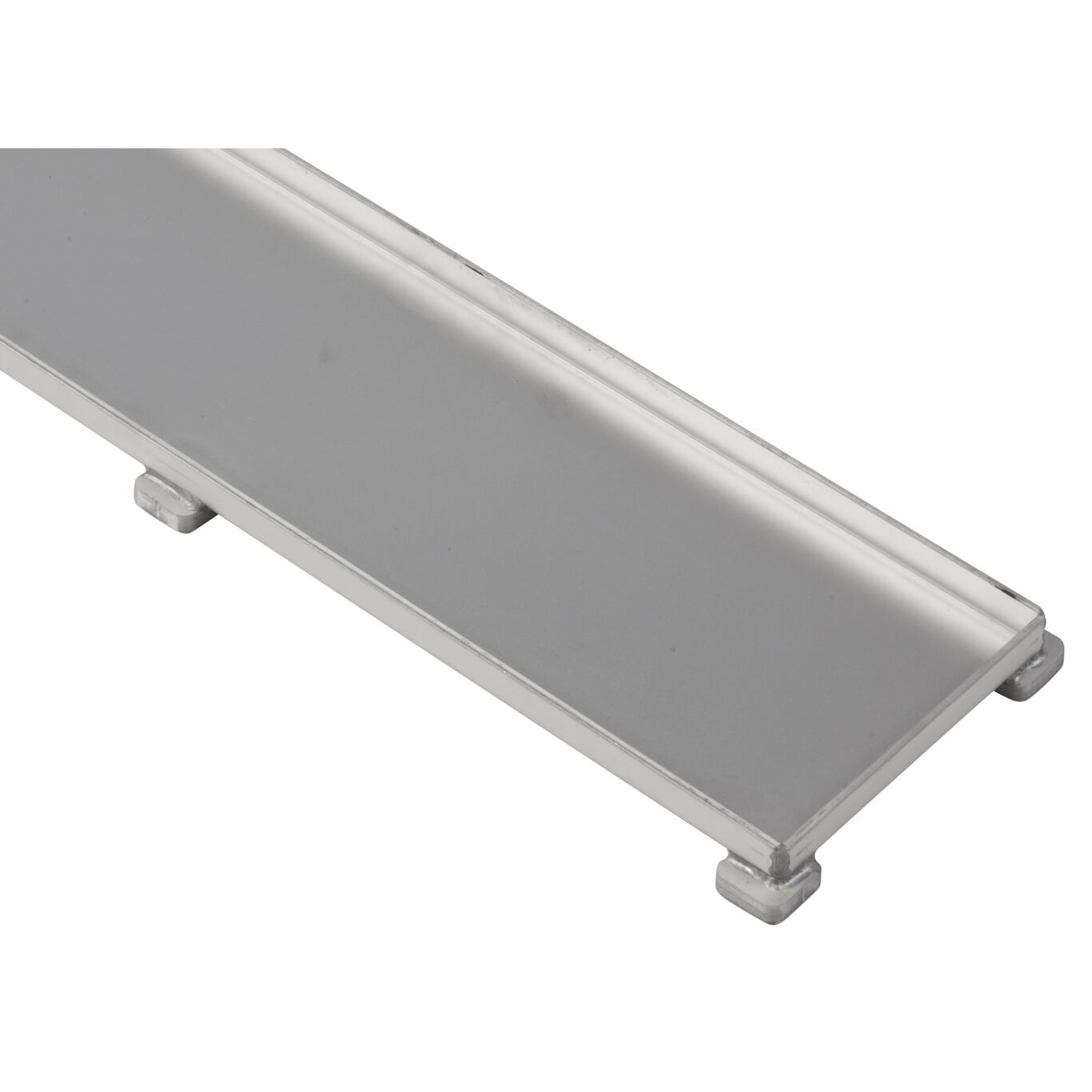

TILED/EPOXY GRATING CHANNEL

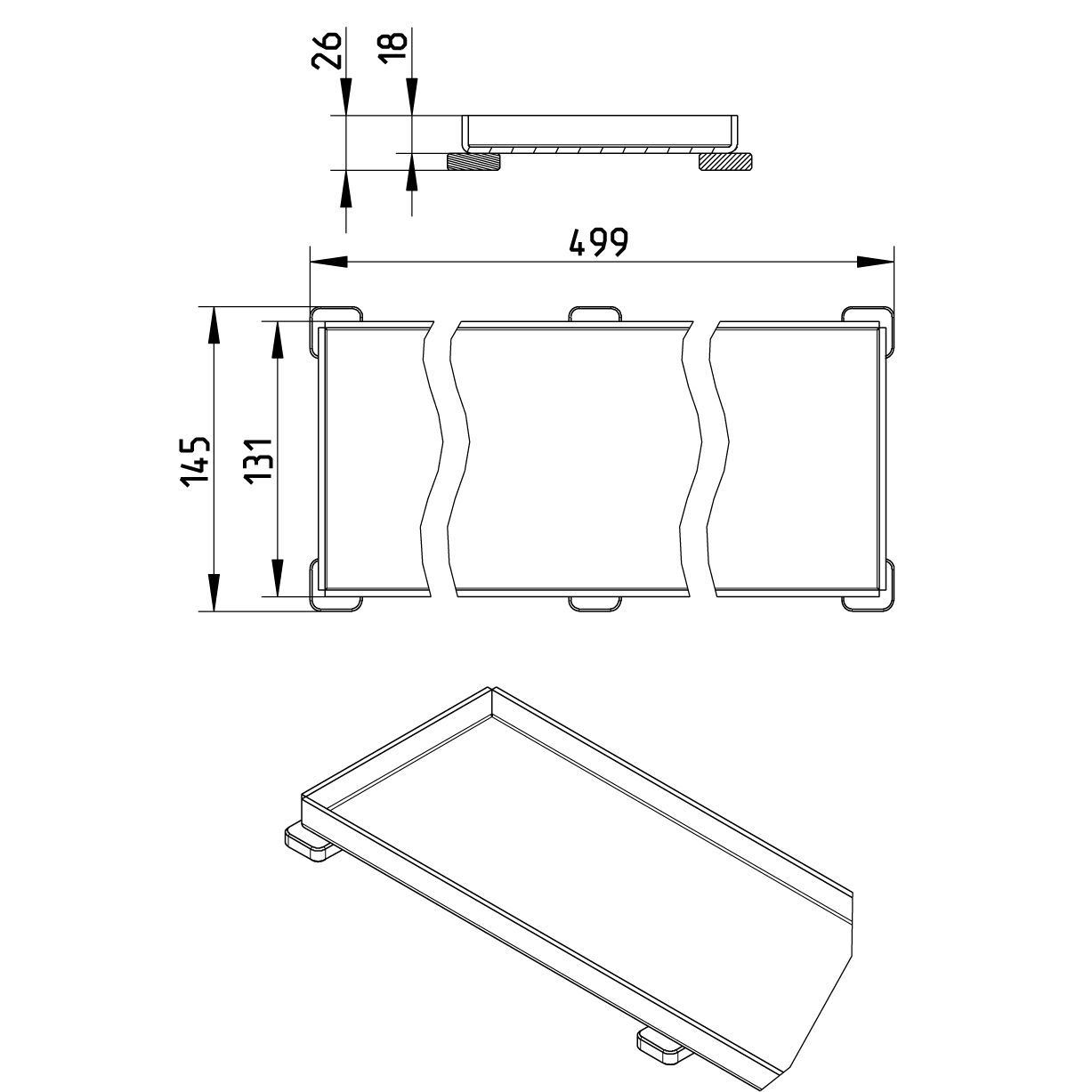

-Grating: 145x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | K3 |
| Load Class EN1433 | A15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 2,07 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
