HYGIENICPRO GRATING CHANNEL - (697.250.200.50 S)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.250.200.50 S
EAN no.: 5705499138597
Size: 200x500

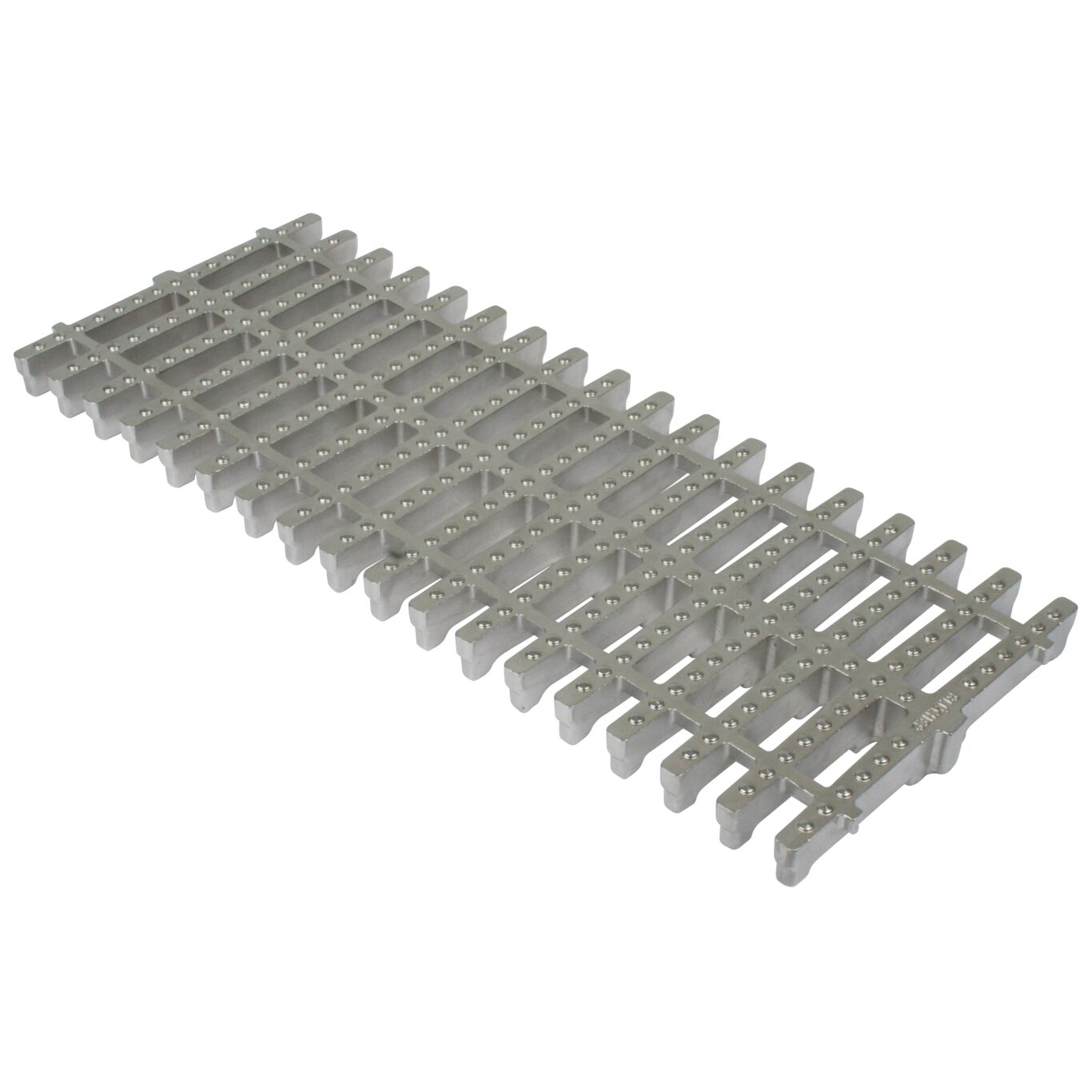

HYGIENICPRO GRATING CHANNEL

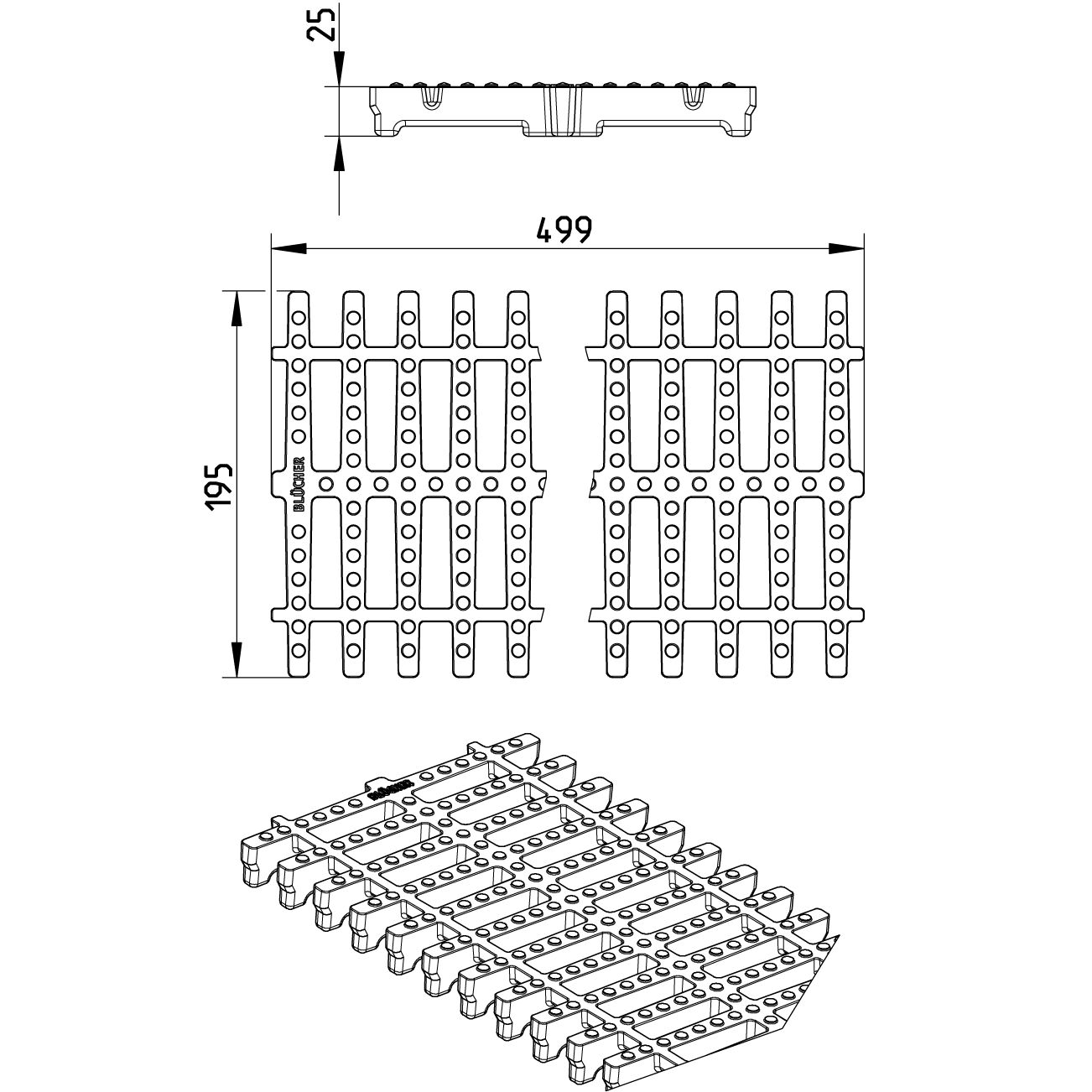

-Grating: 195x499mm
-Stainless steel: AISI316L/EN1.4408
| Product Specification | |
|---|---|
| Load Class EN1253 | M125 |
| Load Class EN1433 | B125 |
| Material | AISI 316L |
| Material (EN) | EN 1.4408 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Weight (kg) | 7,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
