LADDER GRATING CHANNEL - (697.225.200.50)
Part Of the Series: Grating-Channel-200
Type no.: 697.225.200.50
EAN no.: 5705499128659
NRF no.: 3397178
Size: 200x500
LADDER GRATING CHANNEL
-8mm material and fully welded

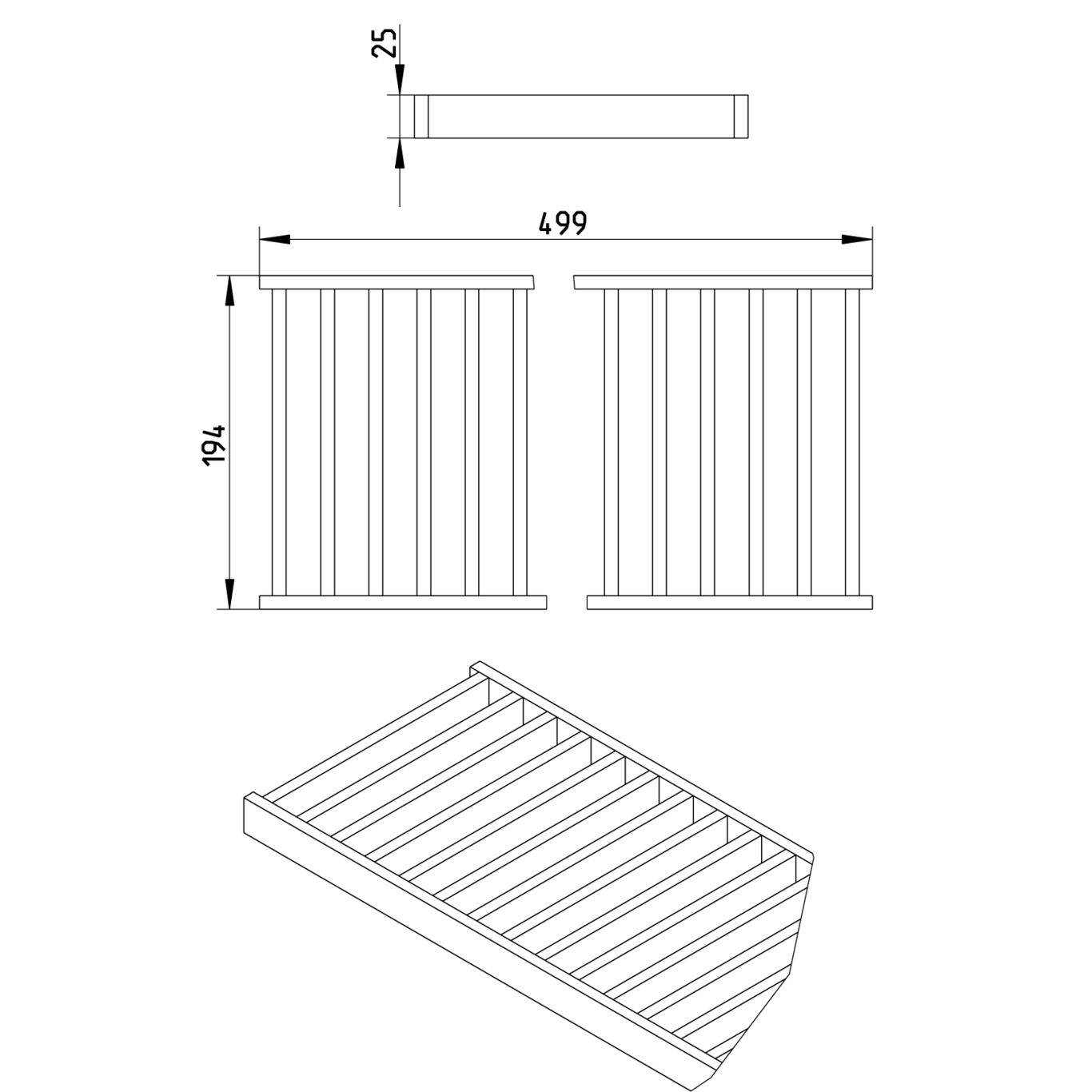

-Grating: 194x499mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Load Class EN1253 | N250 |
Load Class EN1253 (kg) | N250 (20000) |
Load Class EN1433 | C250 |
Load Class EN1433 (kg) | C250 (20.000) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 25 |
Non-slip | R11 |
Number of Screws | 0 |
Shape | Rectangular |
Size (mm) | 200x500 |
Weight (kg) | 6,63 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
