MESH GRATING CHANNEL - (696.223.194.99 S)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 696.223.194.99 S
EAN no.: 5705499124507
Size: 200x1000
MESH GRATING CHANNEL

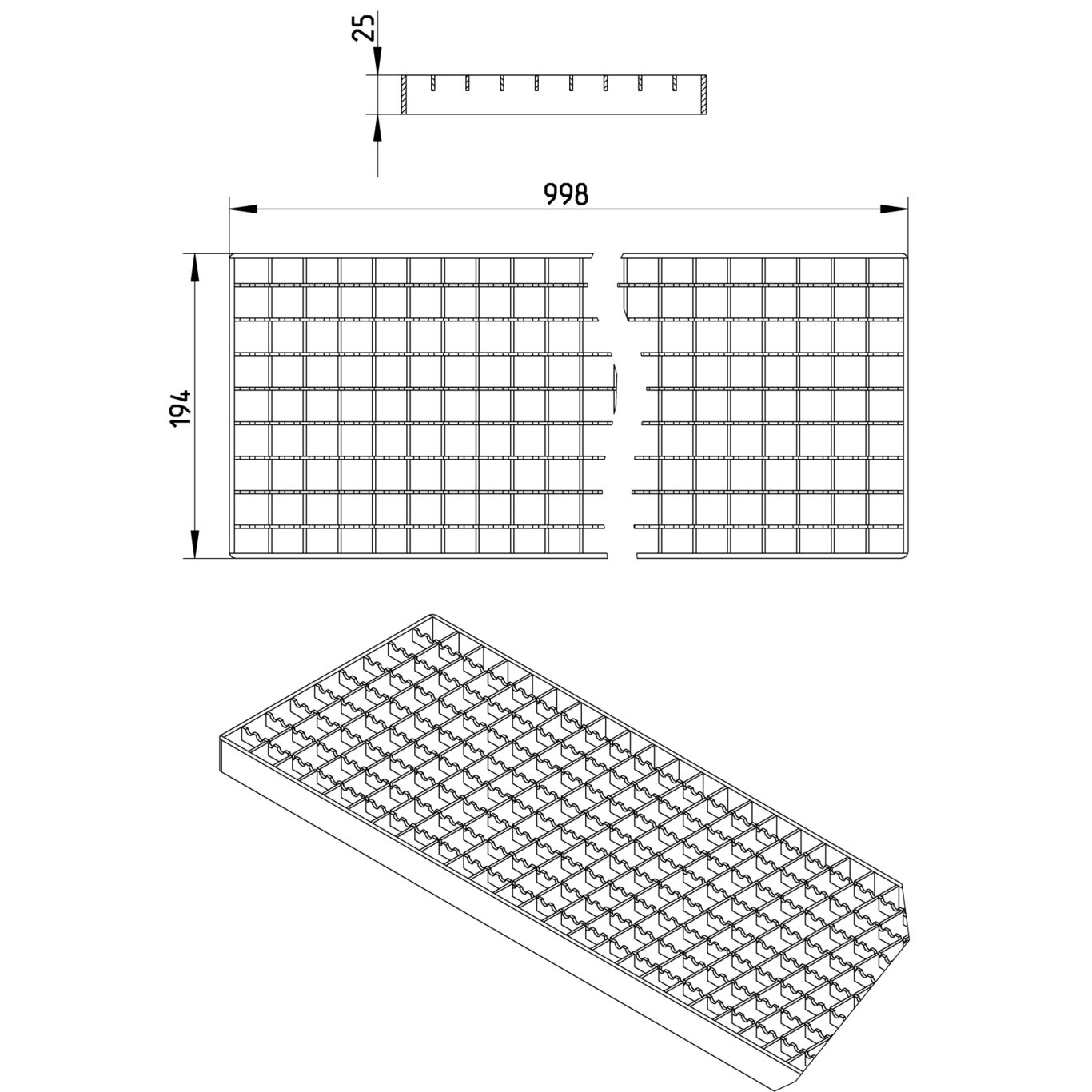

-Grating: 194x998mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1433 | A15 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x1000 |
| Weight (kg) | 5,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
