SHOWER GRATING CHANNEL - (697.015.200.99)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.015.200.99
EAN no.: 5705499124538
NRF no.: 3397157
LVI no.: 3304988
Size: 200x1000

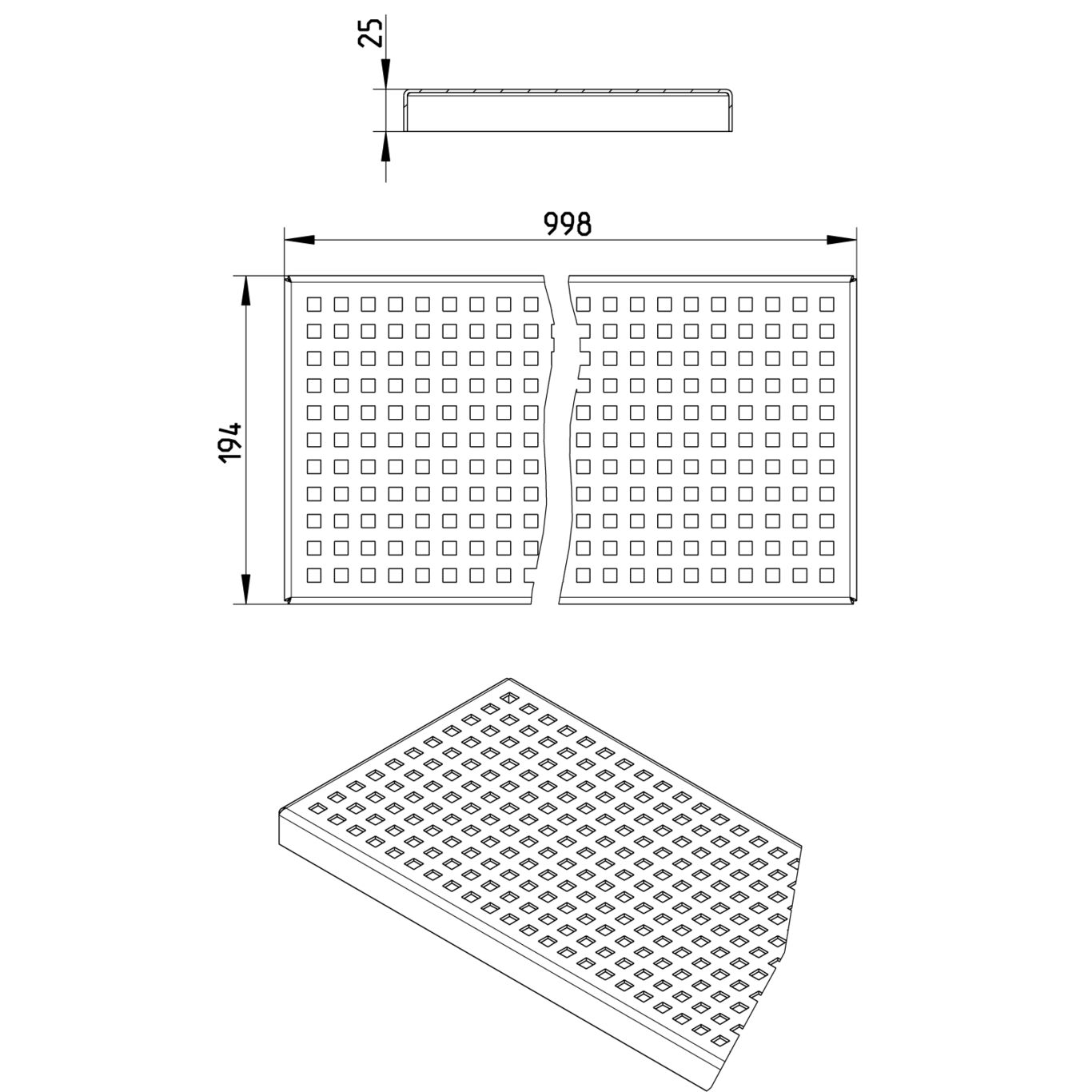

SHOWER GRATING CHANNEL
-Grating: 194x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x1000 |
| Weight (kg) | 3,40 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
