SLOT GRATING CHANNEL - (697.200.200.99)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.200.200.99
EAN no.: 5705499115529
NRF no.: 3397174

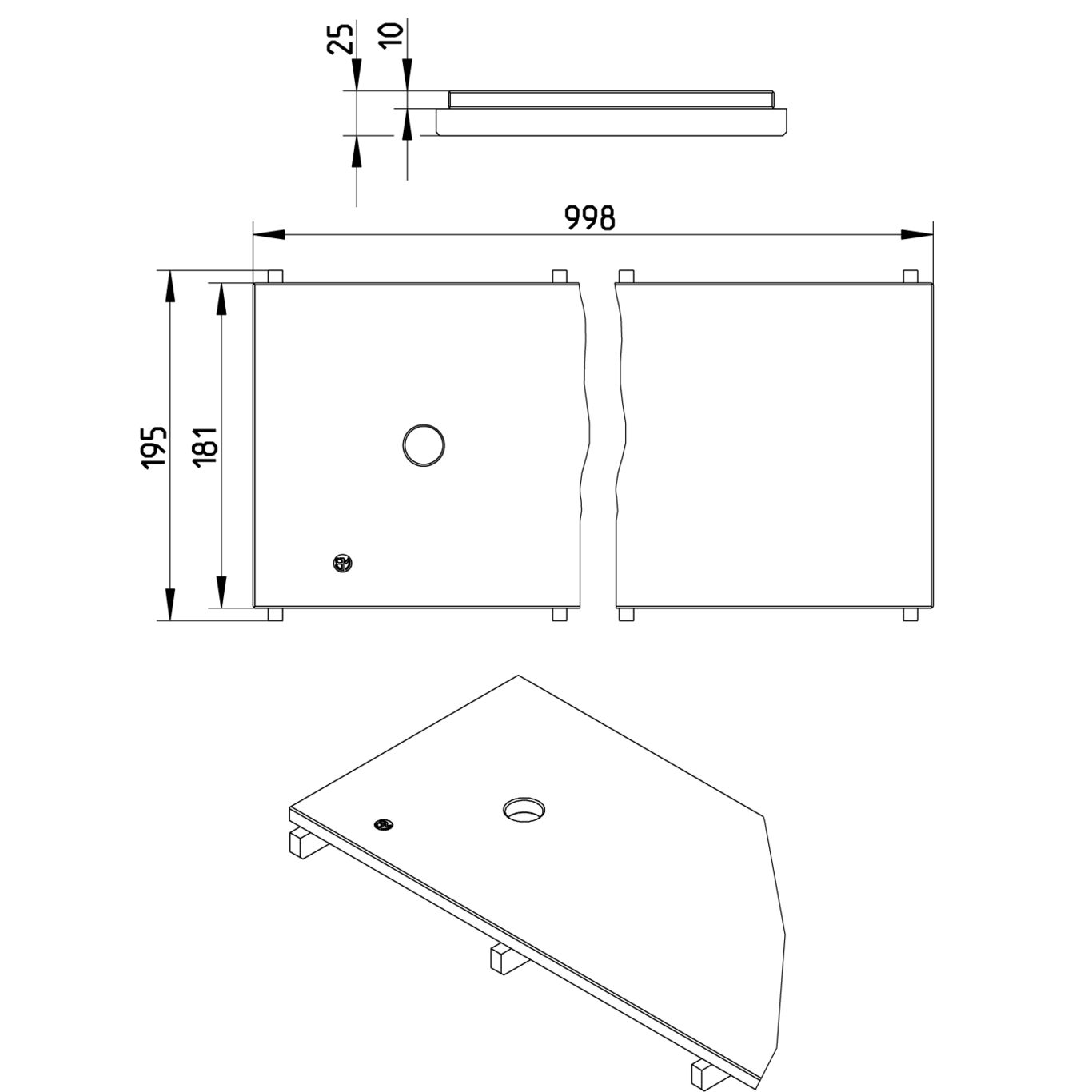

Size: 200x1000
SLOT GRATING CHANNEL
-Grating: 195x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | N250 |
| Load Class EN1253 (kg) | N250 (20000) |
| Load Class EN1433 | B125 |
| Load Class EN1433 (kg) | B125 (8.333) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x1000 |
| Weight (kg) | 14,72 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
