TILED/EPOXY GRATING CHANNEL - (697.020.200.49)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.020.200.49
EAN no.: 5705499128581
NRF no.: 3397159
Size: 200x500
TILED/EPOXY GRATING CHANNEL

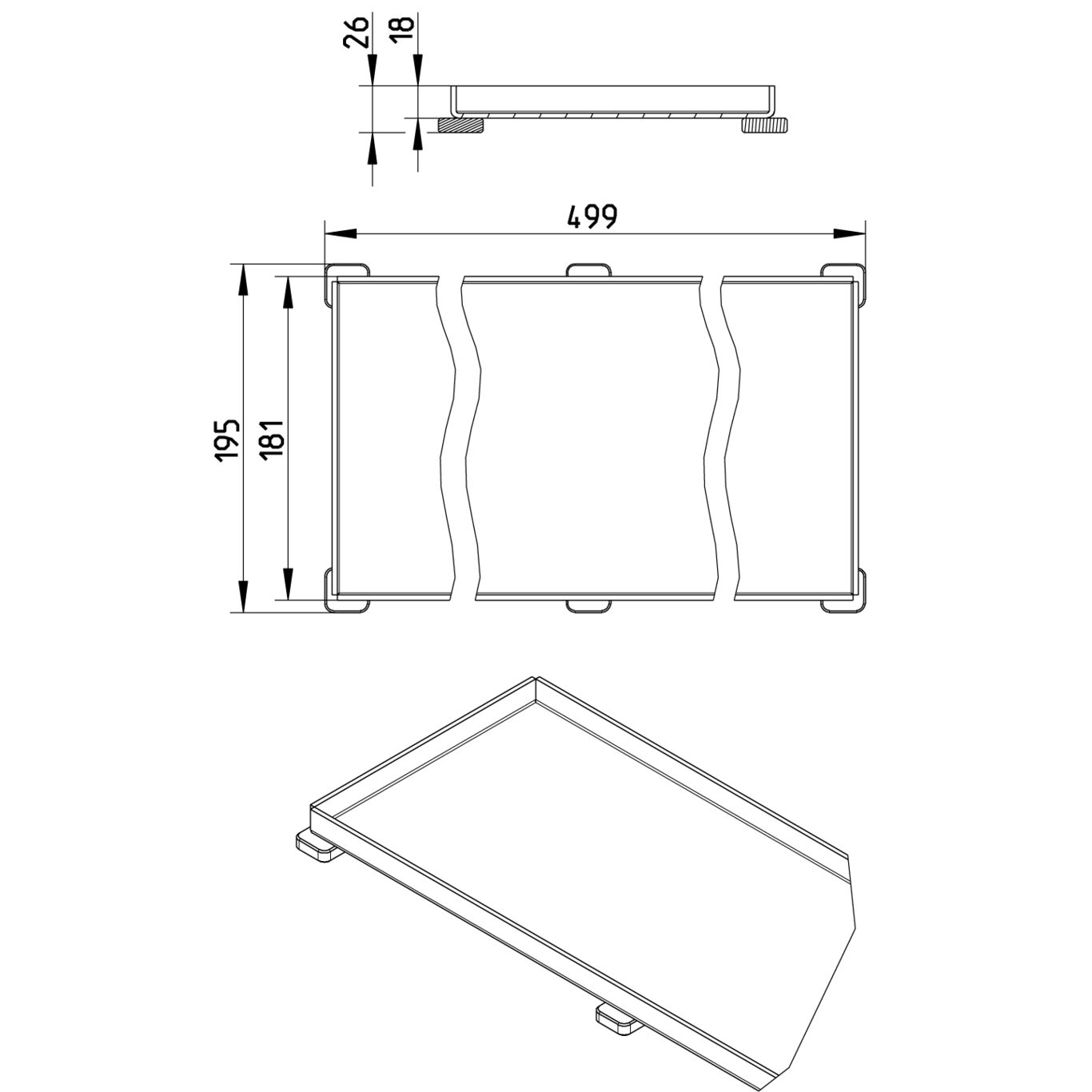

-Grating: 195x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1800) |
| Load Class EN1433 | A15 |
| Load Class EN1433 (kg) | A15 (1.400) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Weight (kg) | 2,71 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
