MESH GRATING CHANNEL - (696.223.394.99)
Part Of the Series: Grating-Channel-400
Type no.: 696.223.394.99
EAN no.: 5705499131536
NRF no.: 3397148
Size: 400x1000

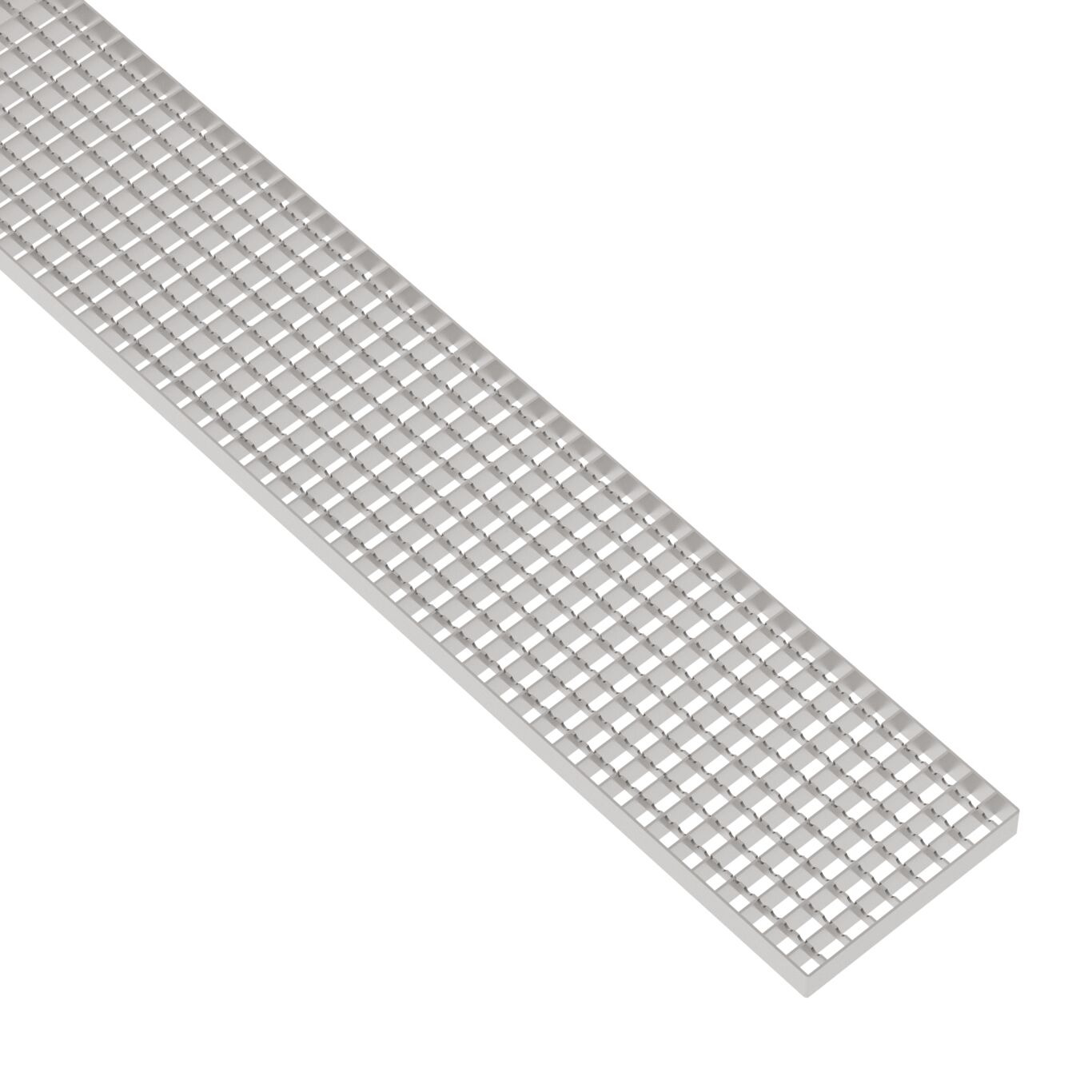

MESH GRATING CHANNEL

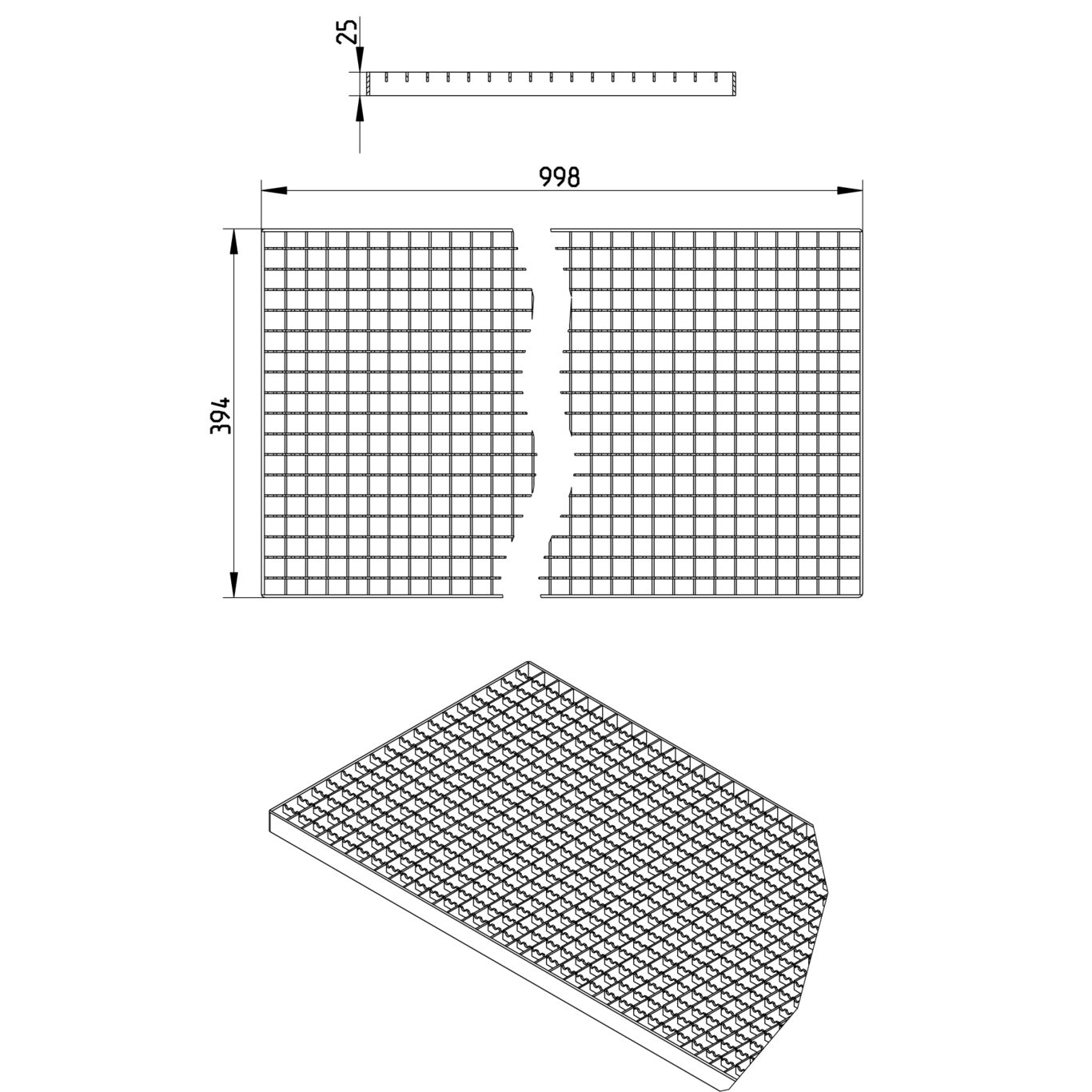

-Grating: 394x998mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Load Class EN1253 | L15 |
Load Class EN1253 (kg) | L15 (1500) |
Load Class EN1433 | A15 |
Load Class EN1433 (kg) | A15 (4.000) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 25 |
Non-slip | R12 |
Number of Screws | 0 |
Shape | Rectangular |
Size (mm) | 400x1000 |
Weight (kg) | 10,20 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
