GRATING LINE TOKYO 300 - (697.009.030)
Part Of the Series: Grating-Shower channel
Type no.: 697.009.030
EAN no.: 5705499126983
VVS no.: 155076103
RSK no.: 7121995
NRF no.: 3397153
LVI no.: 3304464
Size: 50x300
GRATING LINE TOKYO 300

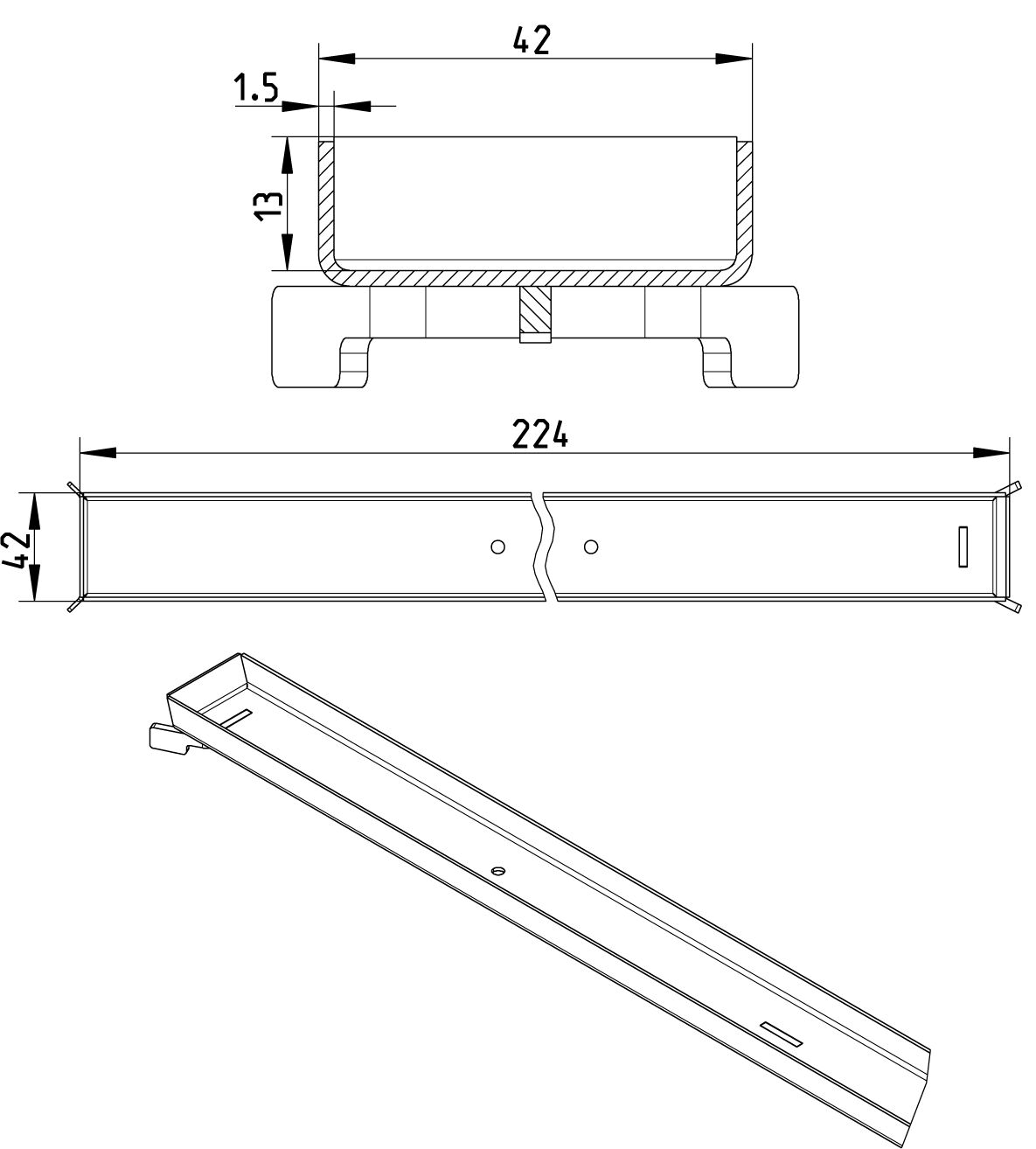

-Grating: 42x224mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 0.8 |
Number of Screws | 0 |
Size (mm) | 50x300 |
Weight (kg) | 0,19 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
