INTERMEDIATE SECTION FOR MOUNTING SETS - (145.200.113)
×
![]()
Part Of the Series: Intermediate section
Type no.: 145.200.113
EAN no.: 5705499127799
LVI no.: 3303570
INTERMEDIATE SECTION FOR MOUNTING SETS
-With side inlets
-Stainless steel: AISI304/EN1.4301

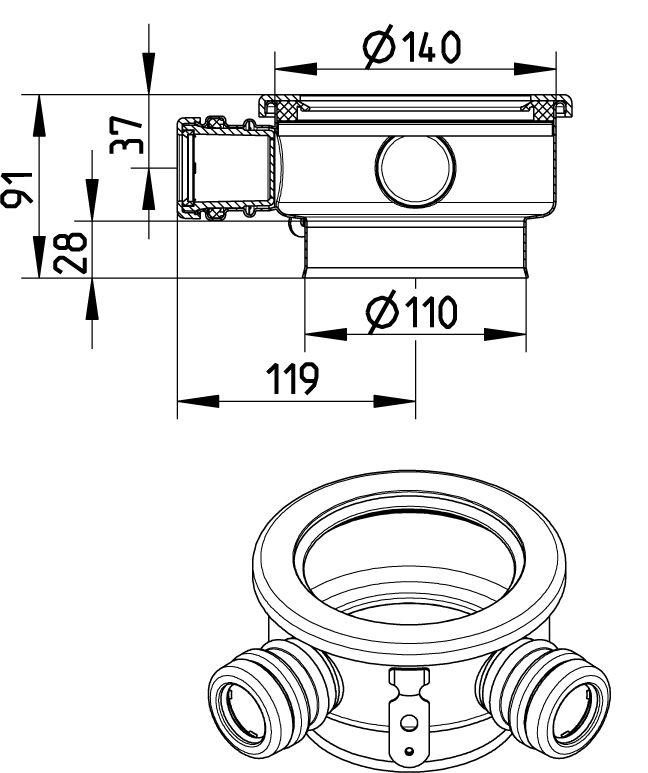

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 91 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,65 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
