LOWER PART - (110.000.050 S)
×
![]()
Part Of the Series: Lower part-110
Type no.: 110.000.050 S
EAN no.: 5705499126921

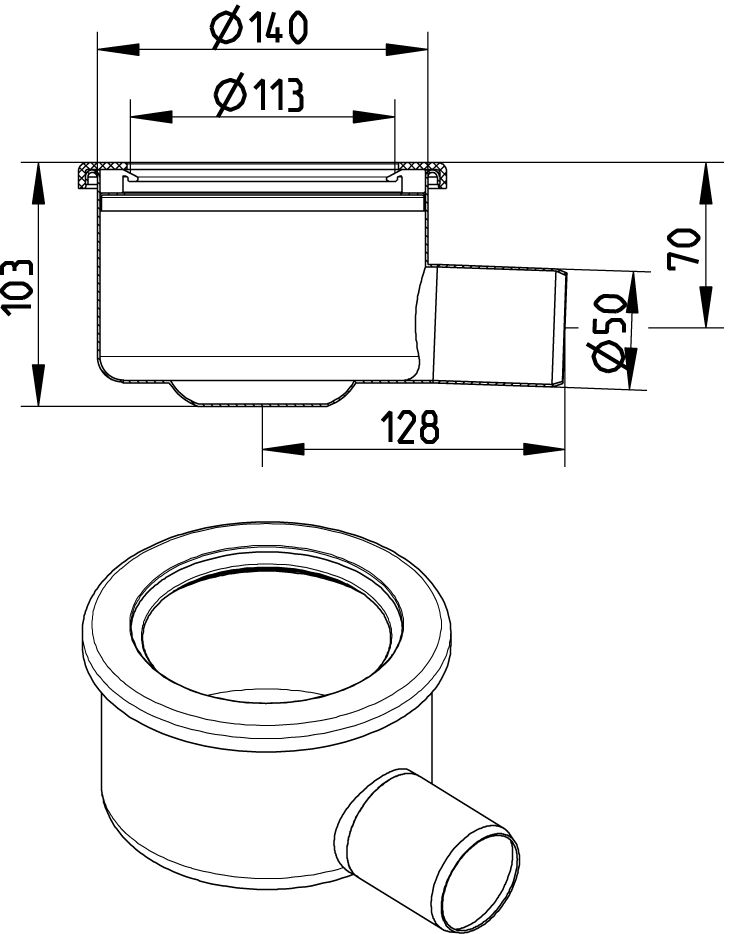

LOWER PART
-No membrane flange
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 103 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 0,66 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
