LOWER PART - (150.000.050)
×
![]()
Part Of the Series: Lower part-110
Type no.: 150.000.050
EAN no.: 5705499107524

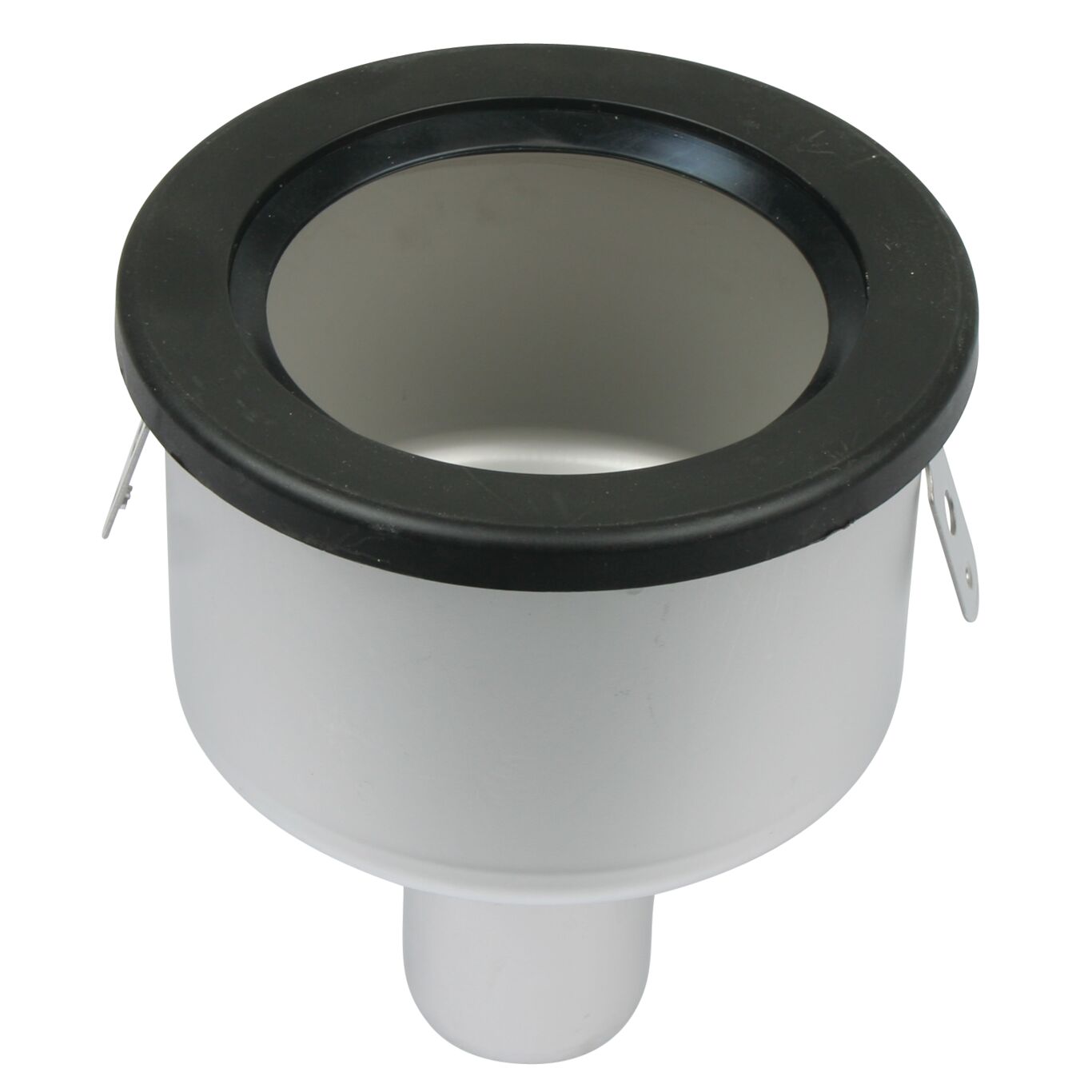

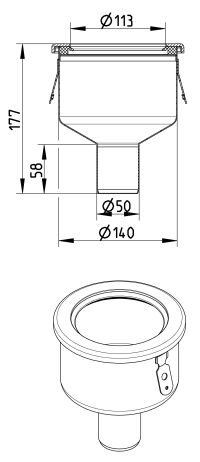

LOWER PART
-No membrane flange
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 177 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Weight (kg) | 0,94 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
