LOWER PART - (151.000.075 S)
Part Of the Series: Lower part-110
Type no.: 151.000.075 S
EAN no.: 5705499107128

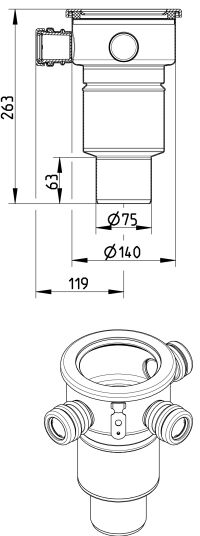

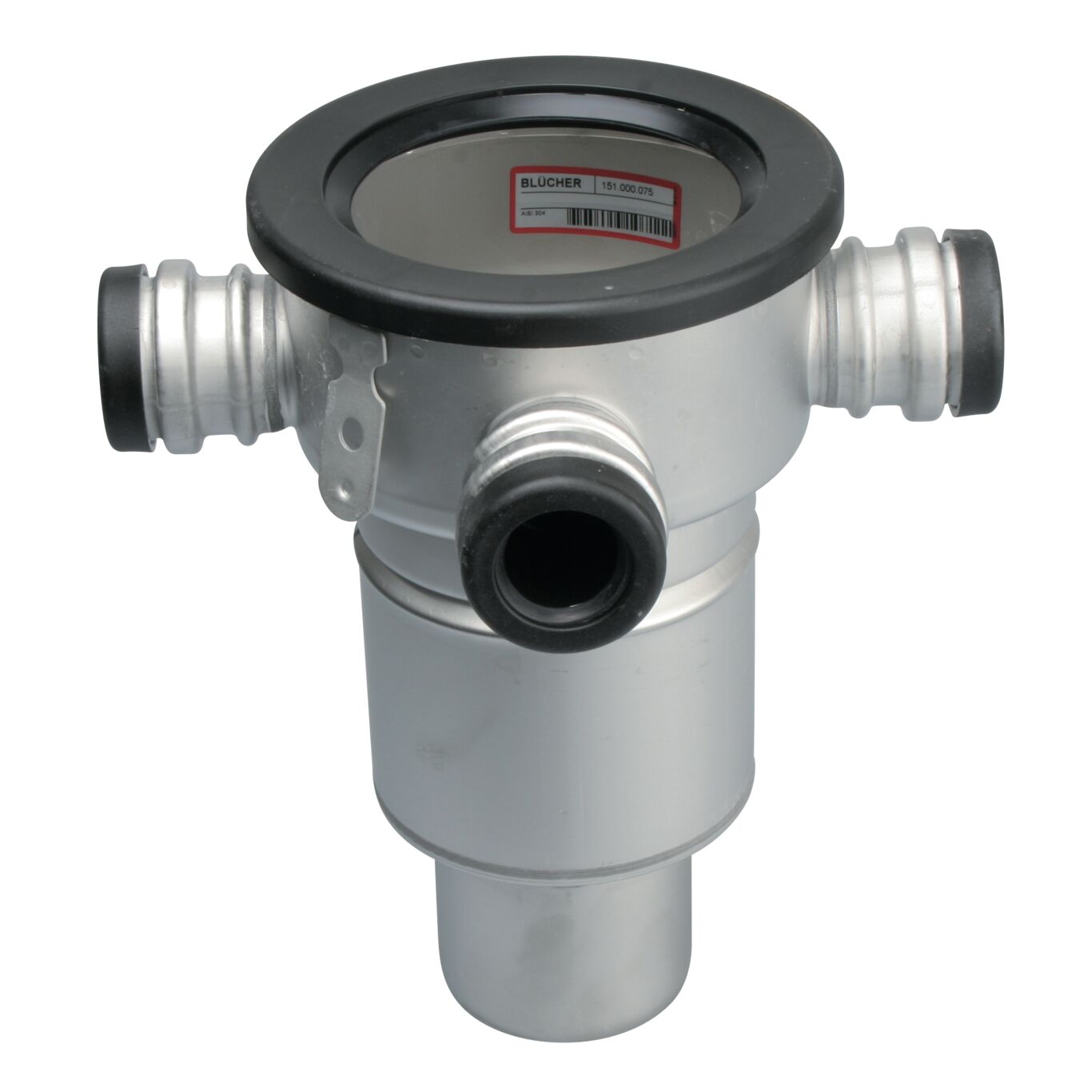

LOWER PART
-With side inlets
-No membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Minimum Height (mm) | 263 |
Number of Inlets | 3 (Ø32/40mm) |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Weight (kg) | 1,40 |
-
Approval Information
For approval information, please refer to the below approval certificates.
