LOWER PART MULTI - (100.000.110)
×
![]()
Part Of the Series: MULTI lower part-Liquid membrane-Channel
Type no.: 100.000.110
EAN no.: 5705499135442
LVI no.: 3304190

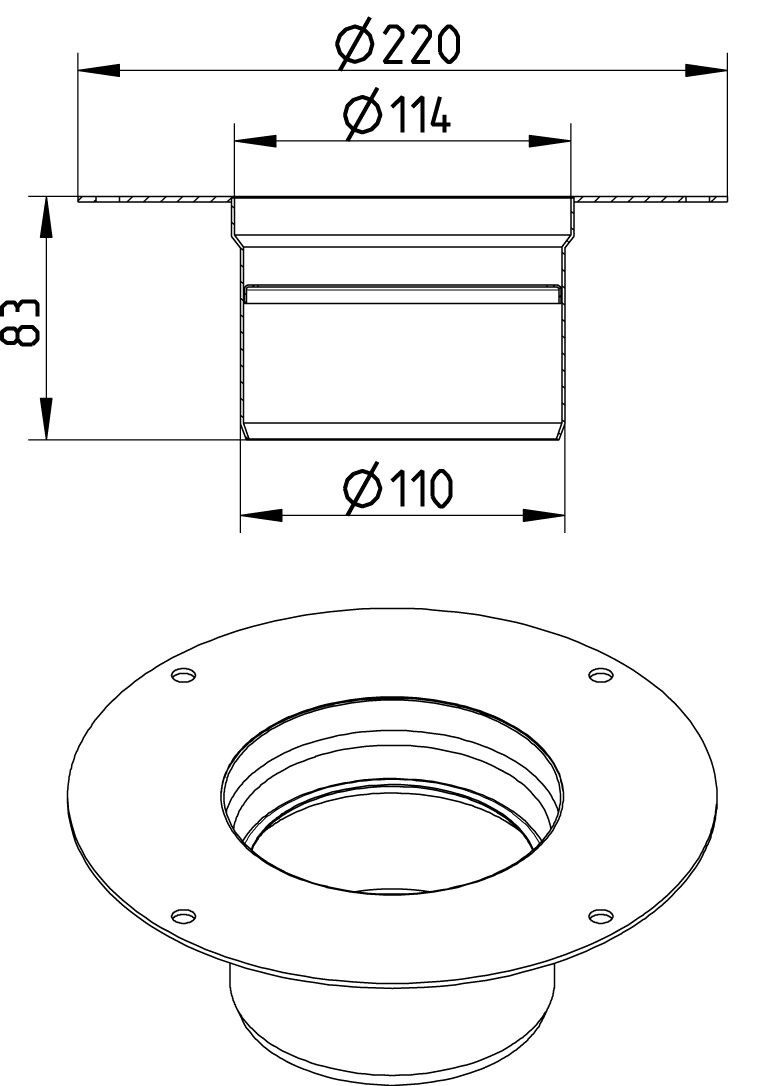

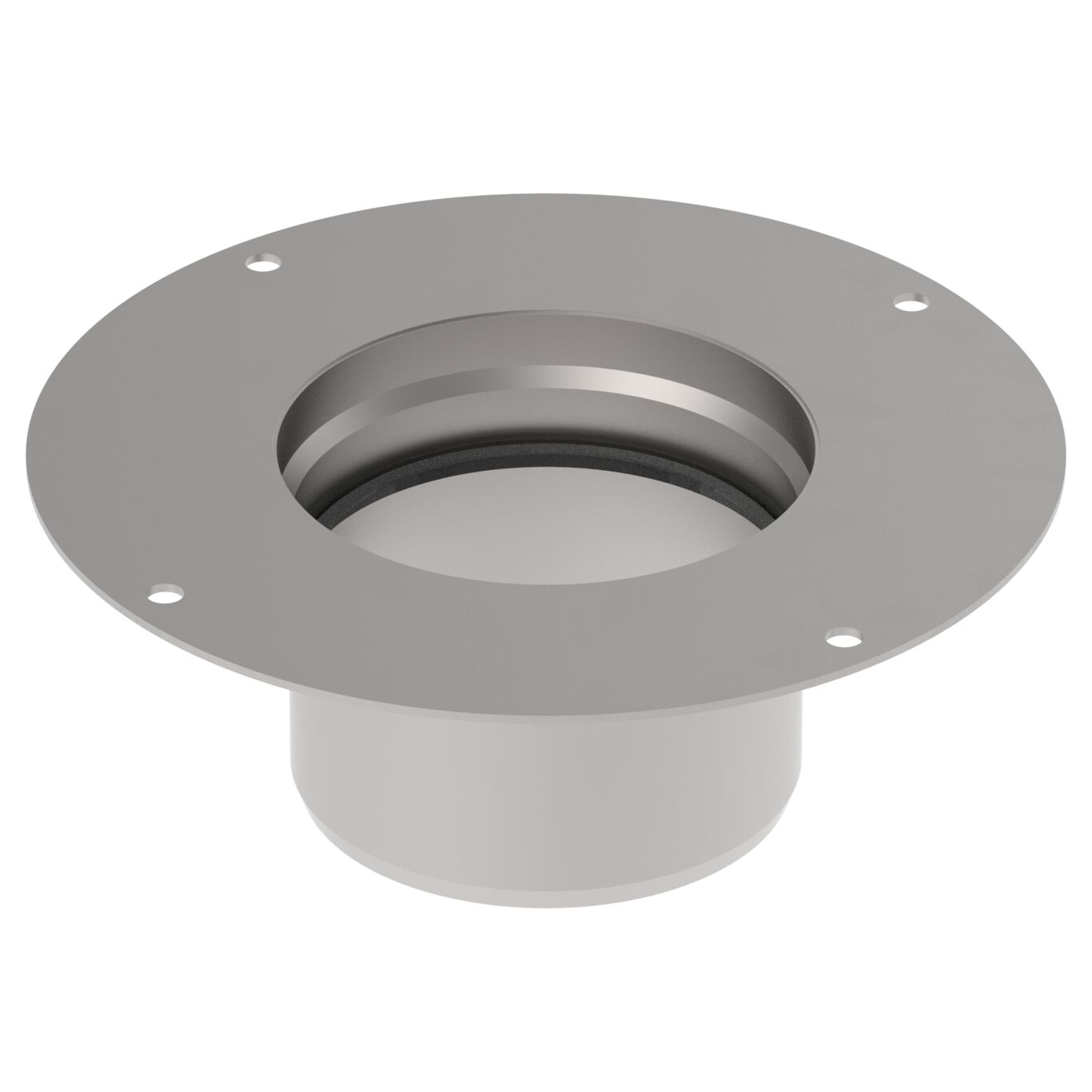

LOWER PART MULTI
-Liquid membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 83 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 0,68 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
