MOUNTING SET SQUARE HYGIENIC-PRO - (650.200.007)
Part Of the Series: MULTI top-200
Type no.: 650.200.007
EAN no.: 5705499129281
RSK no.: 7122117
Size: 200x200

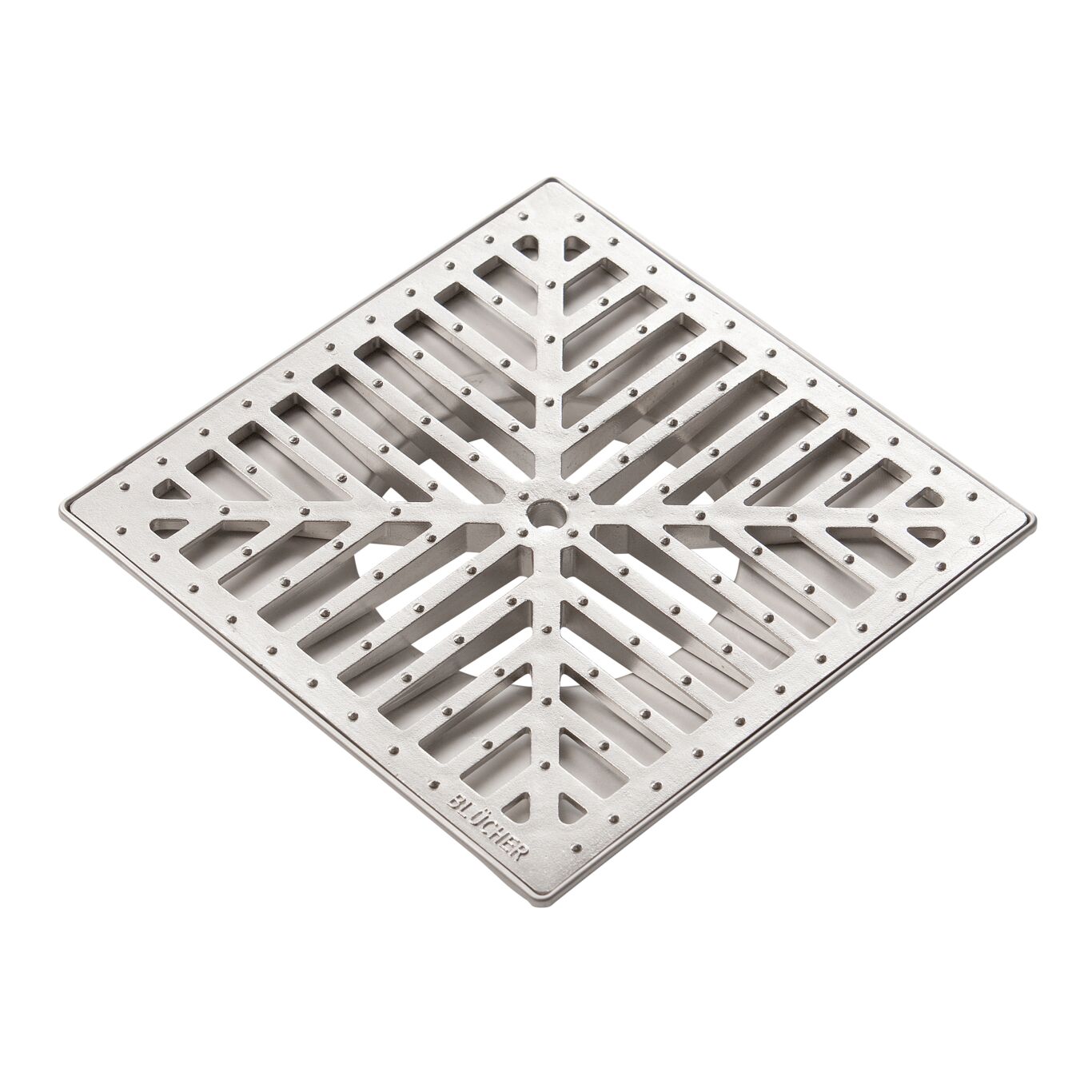

MOUNTING SET SQUARE HYGIENIC-PRO
-With clamping ring
-Floor: concrete and tiled
-Frame: 197x197mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Load Class EN1253 | L15 |
Load Class EN1253 (kg) | L15 (3000) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 26 |
Number of Screws | 0 |
Shape | Square |
Size (mm) | 200x200 |
Weight (kg) | 1,43 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
