MOUNTING SET TRIO VIENNA - (620.270.001)
×
![]()
Part Of the Series: MULTI top-Triangular
Type no.: 620.270.001
EAN no.: 5705499121483
RSK no.: 7122040

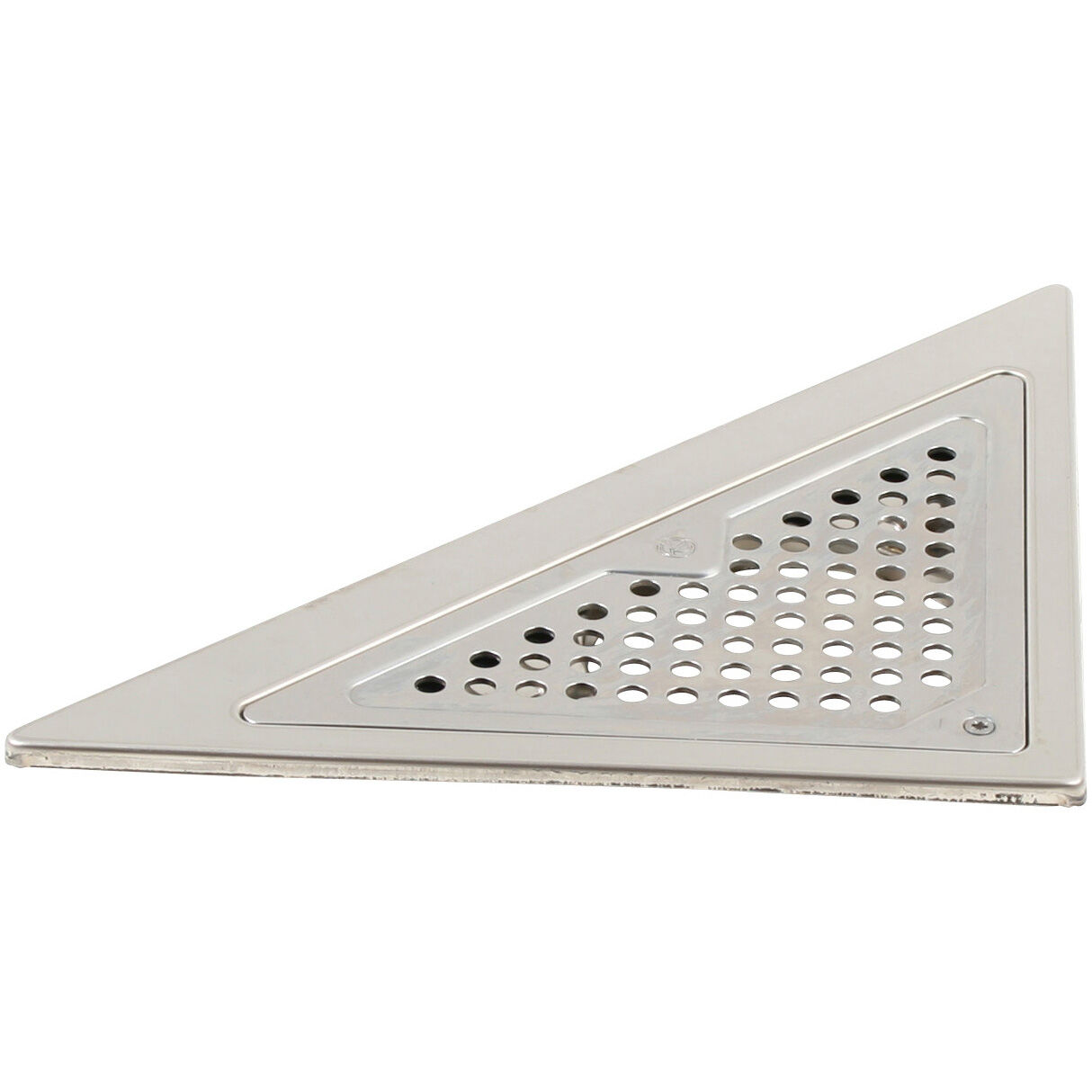

MOUNTING SET TRIO VIENNA
-With screw lock and clamping ring, for installation along wall
-Floor: concrete and tiled
-Frame: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Installation | Along wall |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 19 |
| Number of Screws | 1 |
| Outlet Diameter (mm) | 110 |
| Shape | Triangular |
| Weight (kg) | 0,68 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
