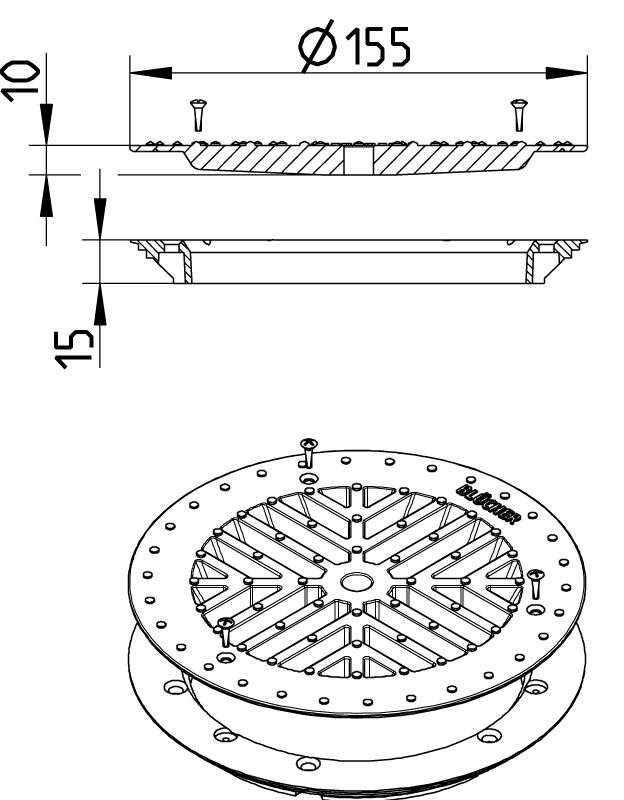

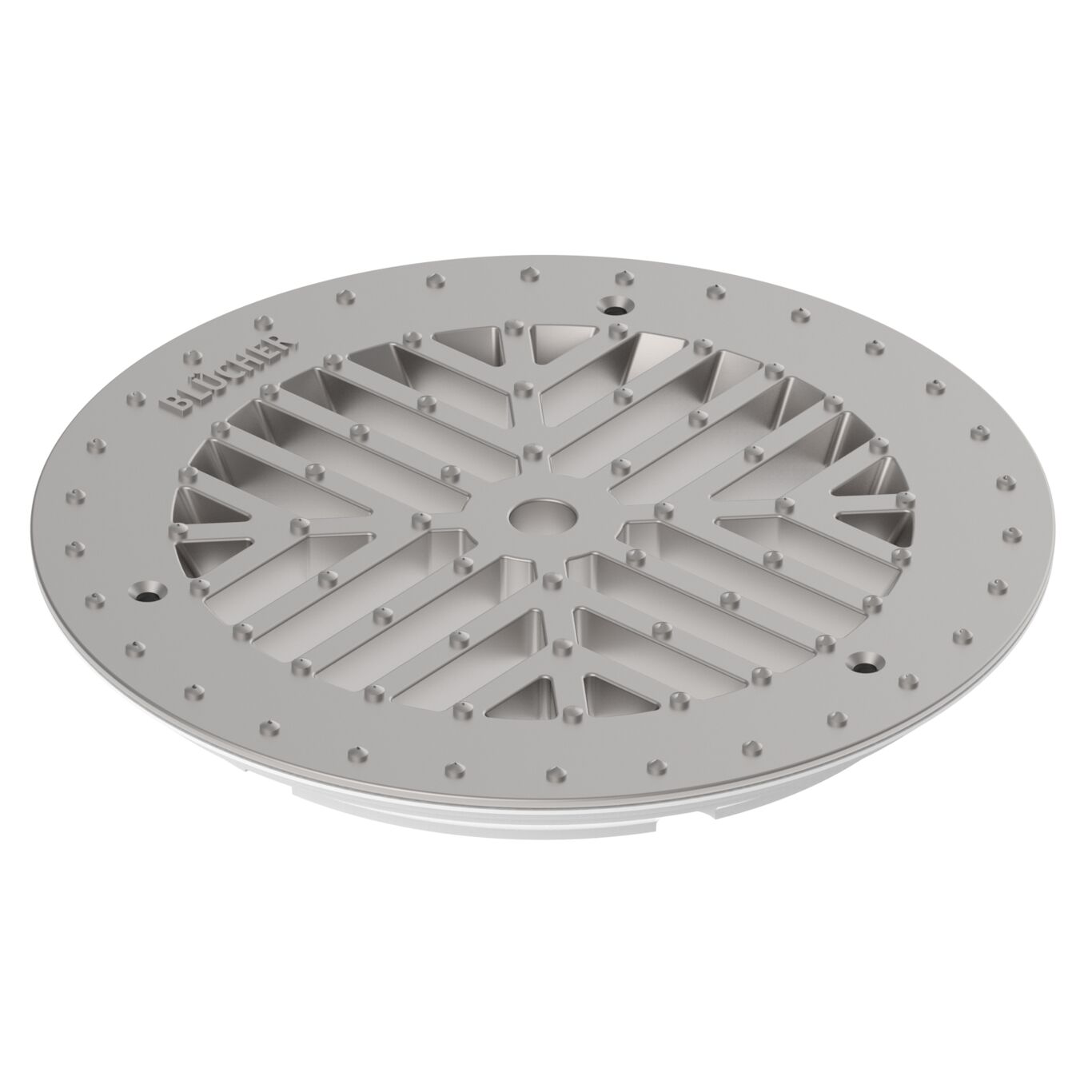

MOUNTING SET CIRCLE HYGIENIC-PRO - (620.300.045)
×
![]()
Part Of the Series: MULTI top-Vinyl-155
Type no.: 620.300.045
EAN no.: 5705499135299
LVI no.: 3304181
Size: Ø155
MOUNTING SET CIRCLE HYGIENIC-PRO
-With clamping ring
-Floor: vinyl
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (3000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 15 |
| Number of Screws | 3 |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,61 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
