MOUNTING SET CIRCLE VIENNA - (620.300.003 S)
×
![]()
Part Of the Series: MULTI top-Vinyl-155
Type no.: 620.300.003 S
EAN no.: 5705499107272
RSK no.: 7120182
LVI no.: 3304408
Size: Ø155

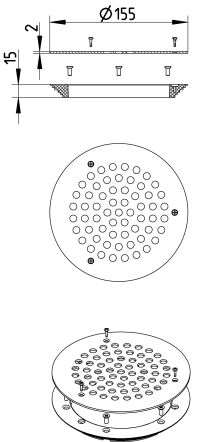

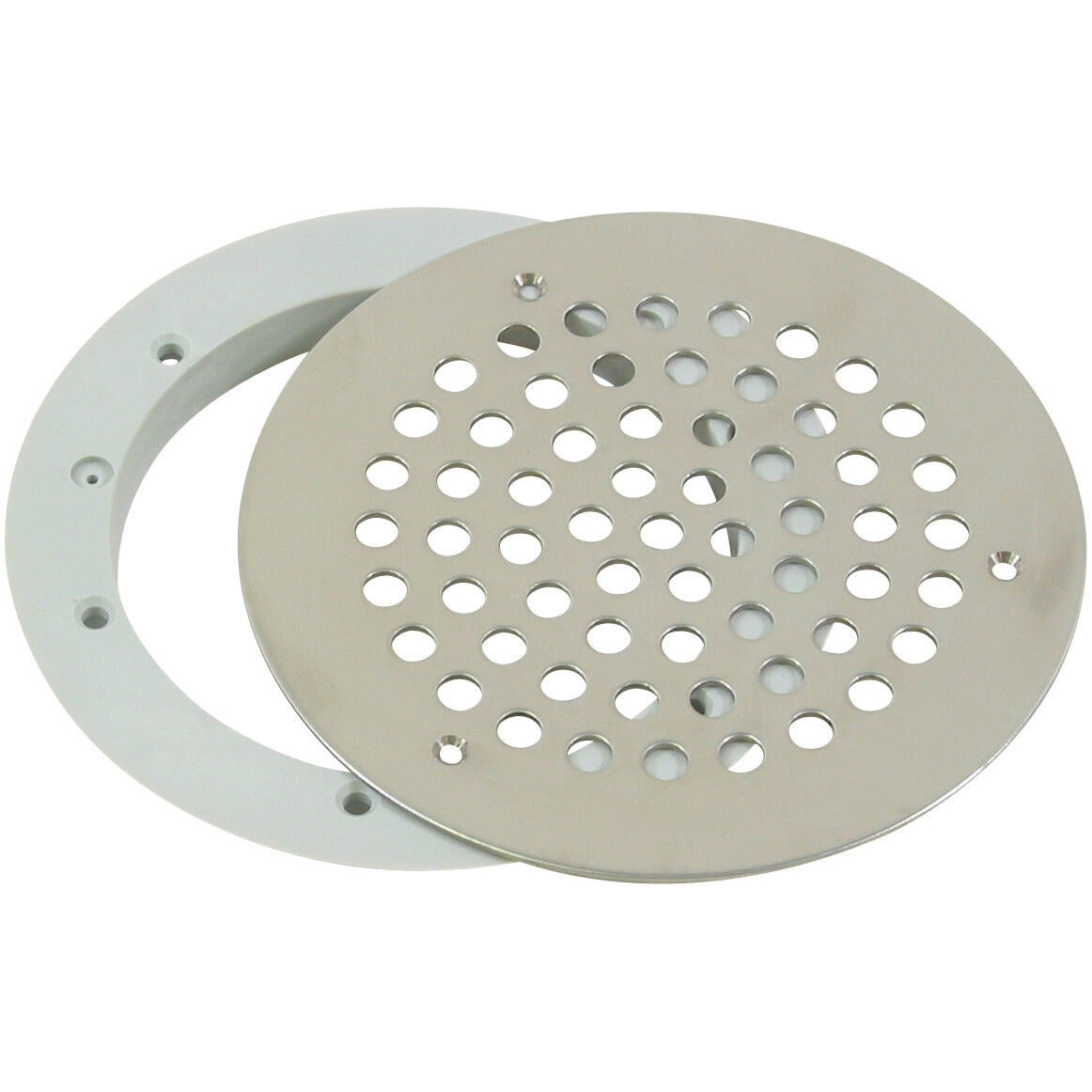

MOUNTING SET CIRCLE VIENNA
-With screw lock and clamping ring
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 15 |
| Number of Screws | 3 |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
