INSERT FOR SQUARE CAST IRON SHOWER DRAIN - (135.000.040)
×
![]()
Part Of the Series: RS82
Type no.: 135.000.040
EAN no.: 5705499100167
VVS no.: 160385240

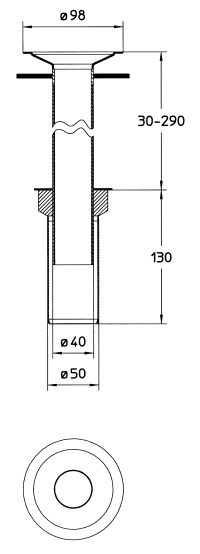

INSERT FOR SQUARE CAST IRON SHOWER DRAIN
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 420 |
| Minimum Height (mm) | 160 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 1,32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
