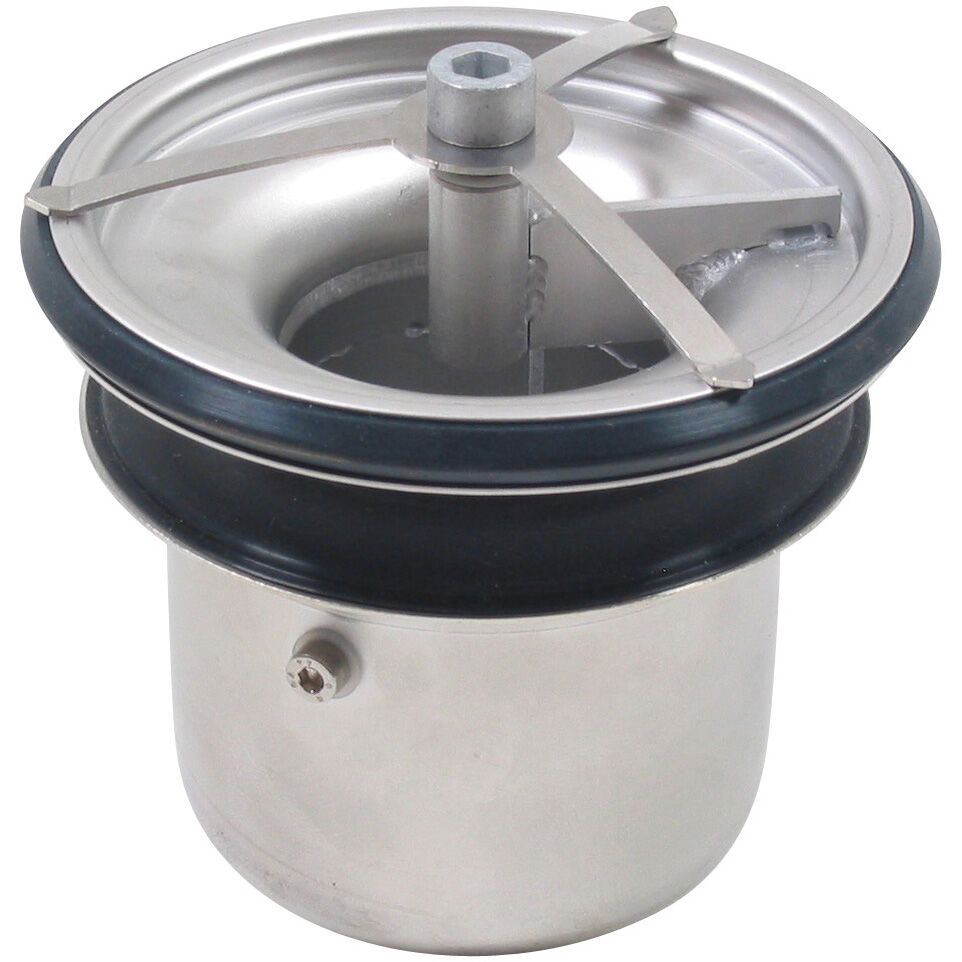

REMOVABLE MULTI WATER TRAP - (503.000.110 CR)
Part Of the Series: Water trap-110
Type no.: 503.000.110 CR
EAN no.: 5705499131918
REMOVABLE MULTI WATER TRAP
-With CR sealing ring
-Stainless steel: AISI304/EN1.4301

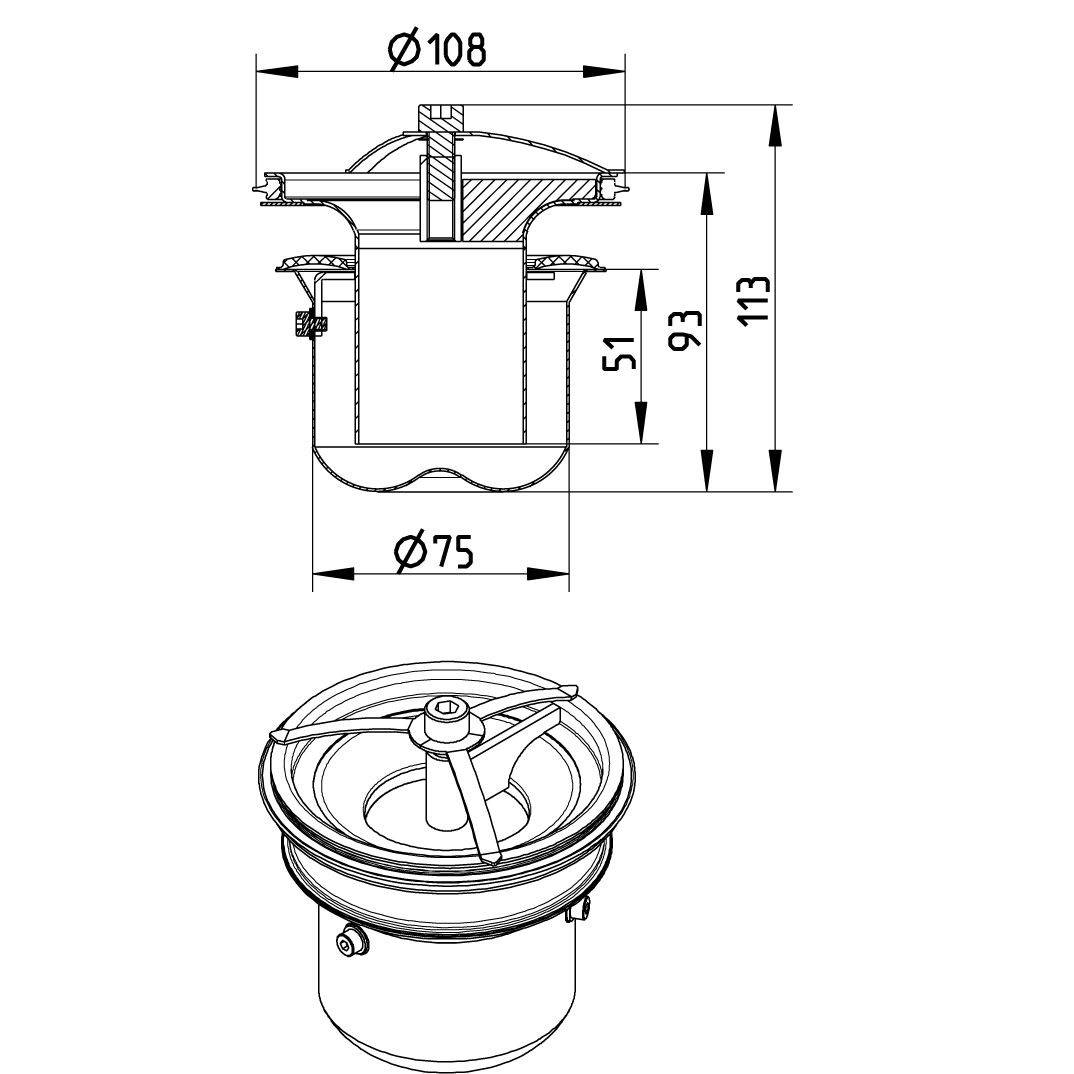

Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 1.2 |
Minimum Height (mm) | 113 |
Outlet Diameter (mm) | 108 |
Water Seal Height (mm) | 51 |
Weight (kg) | 0,39 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products Bureau Veritas - 03456-H0, ShipDrains KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes
