REMOVABLE TWO-PART WATER TRAP - (502.050.110 MS)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.050.110 MS
EAN no.: 5705499133257
NRF no.: 3397053

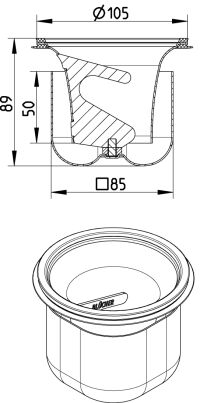

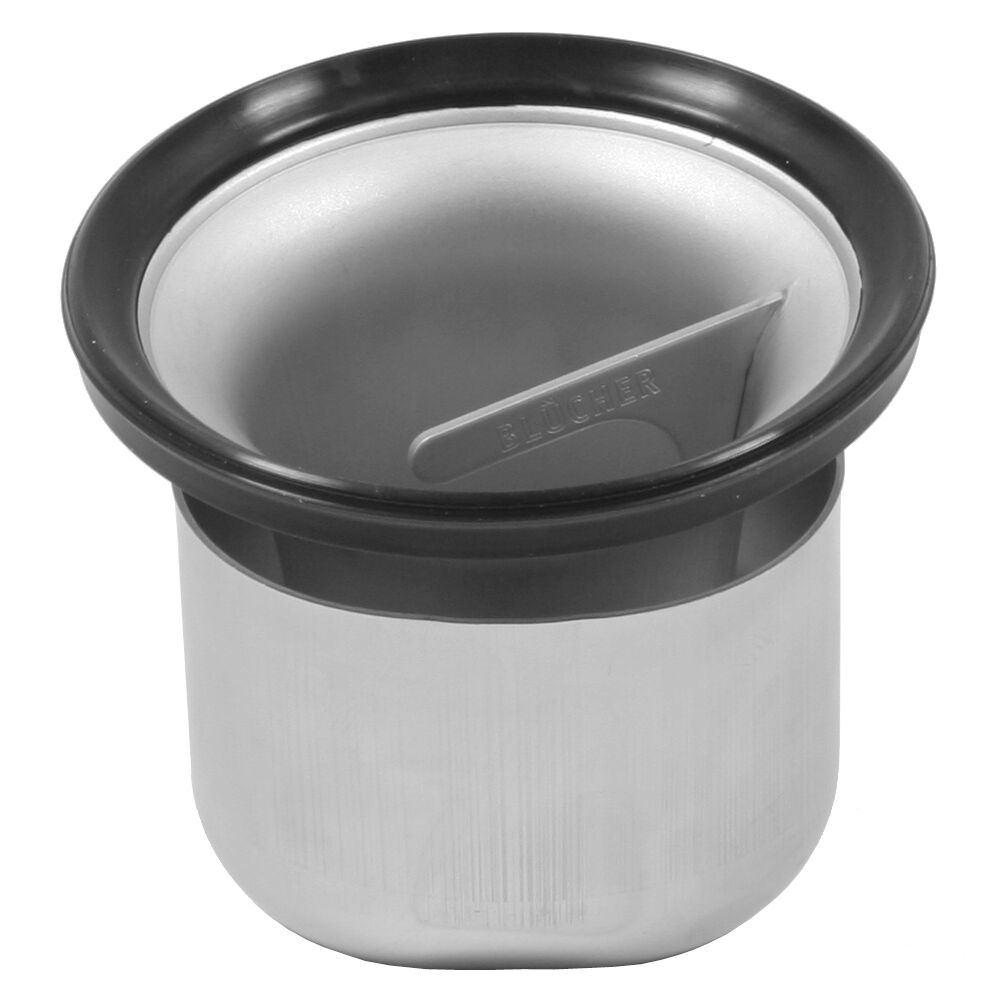

REMOVABLE TWO-PART WATER TRAP
-Water seal height = 50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.7 |
| Minimum Height (mm) | 89 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MERB0001N3Z, Rev0
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247
DNV - MEDB00000MA, Rev4, Marine Drains
BLÜCHER® Drains EPD Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702 PL - Hygienic Certificate - All Products Bureau Veritas - 03456-I0, ShipDrains
