REMOVABLE TWO-PART WATER TRAP, LOW - (506.050.110 S)
×
![]()
Part Of the Series: Water trap-110
Type no.: 506.050.110 S
EAN no.: 5705499131819
VVS no.: 153417526

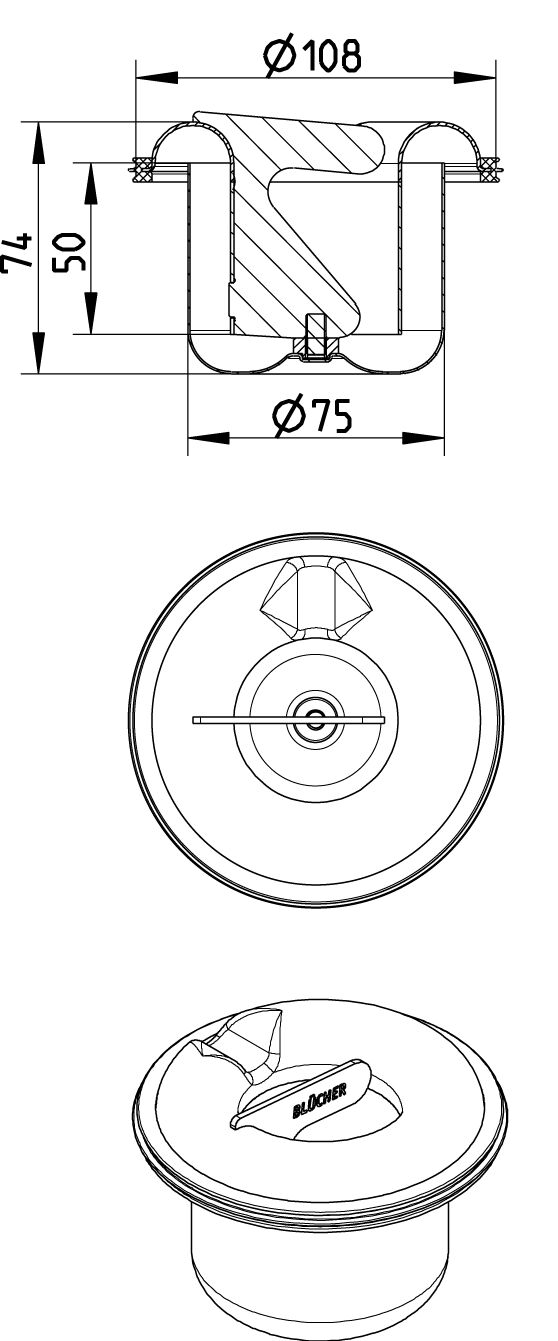

REMOVABLE TWO-PART WATER TRAP, LOW
-Water seal height = 50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 0.6 |
| Minimum Height (mm) | 74 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
