REMOVABLE WATER TRAP FIRE PROOF - (502.052.110 FS)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.052.110 FS
EAN no.: 5705499120509
VVS no.: 153415426
RSK no.: 7120174
NRF no.: 3394912

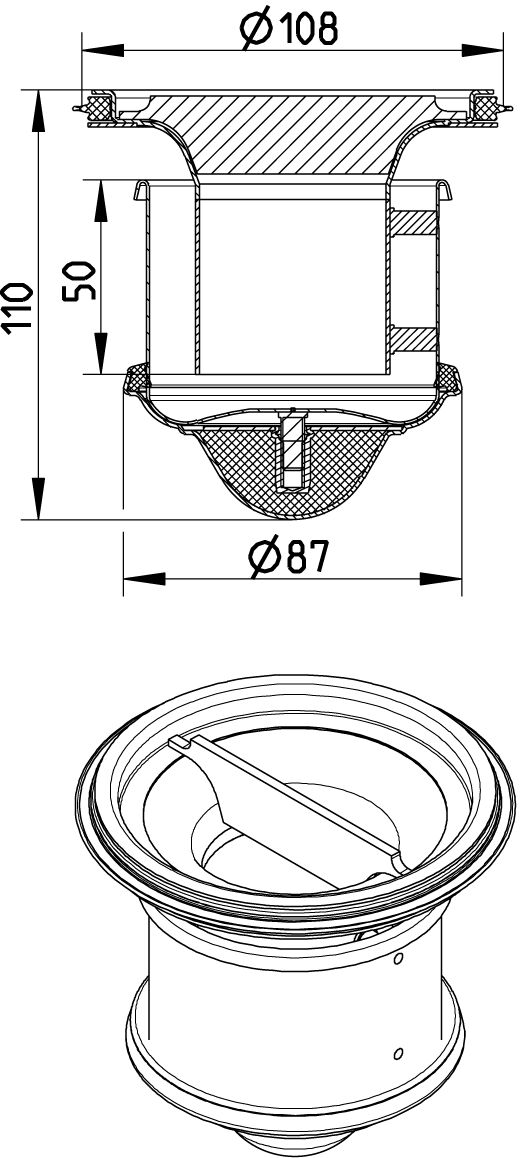

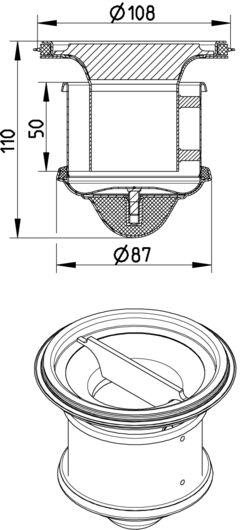

REMOVABLE WATER TRAP FIRE PROOF
-Water seal height = 50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.2 |
| Minimum Height (mm) | 110 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,45 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
