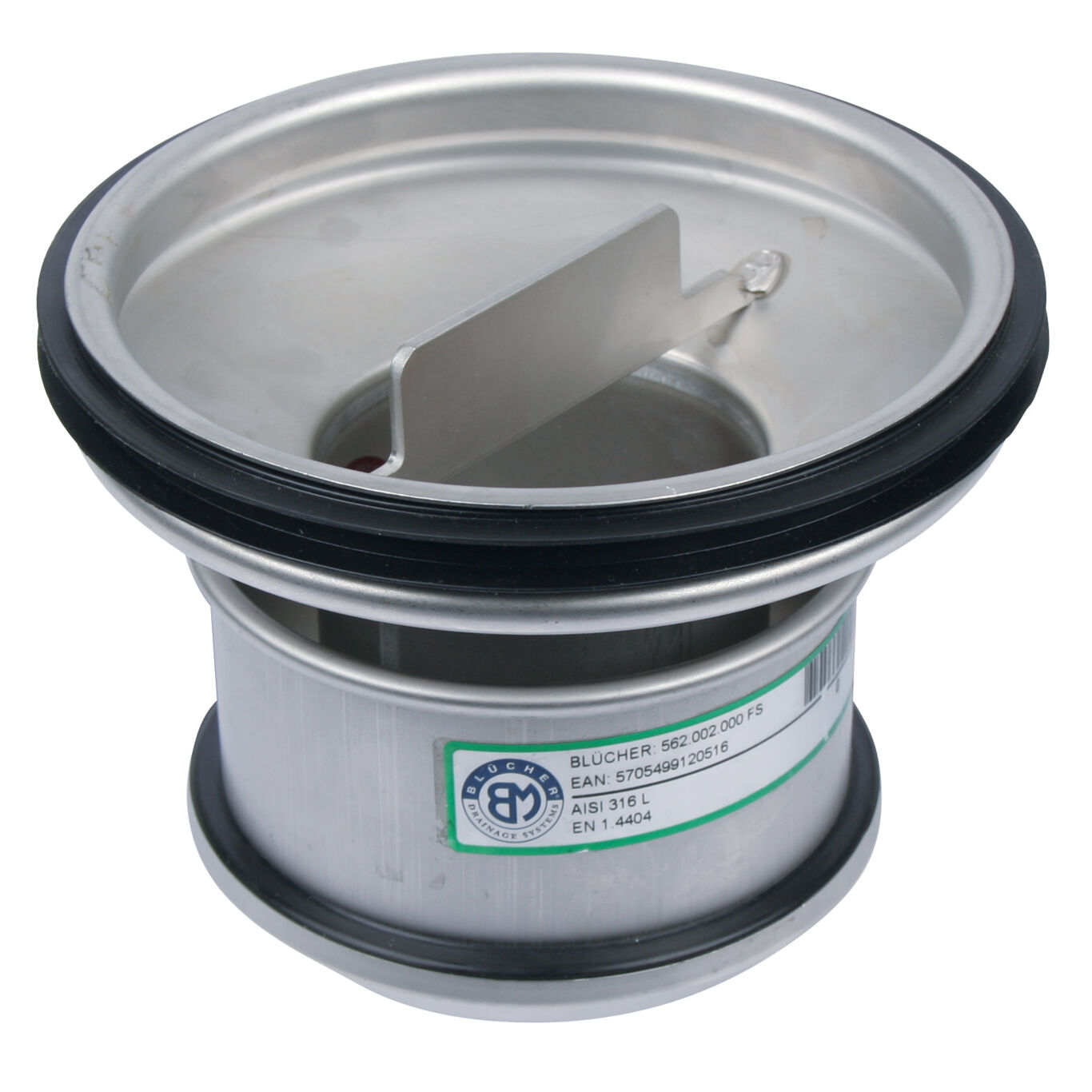

REMOVABLE WATER TRAP FIRE PROOF - (562.002.000 FS)
×
![]()
Part Of the Series: Water trap-160
Type no.: 562.002.000 FS
EAN no.: 5705499120516
VVS no.: 153019420
RSK no.: 7123466
REMOVABLE WATER TRAP FIRE PROOF

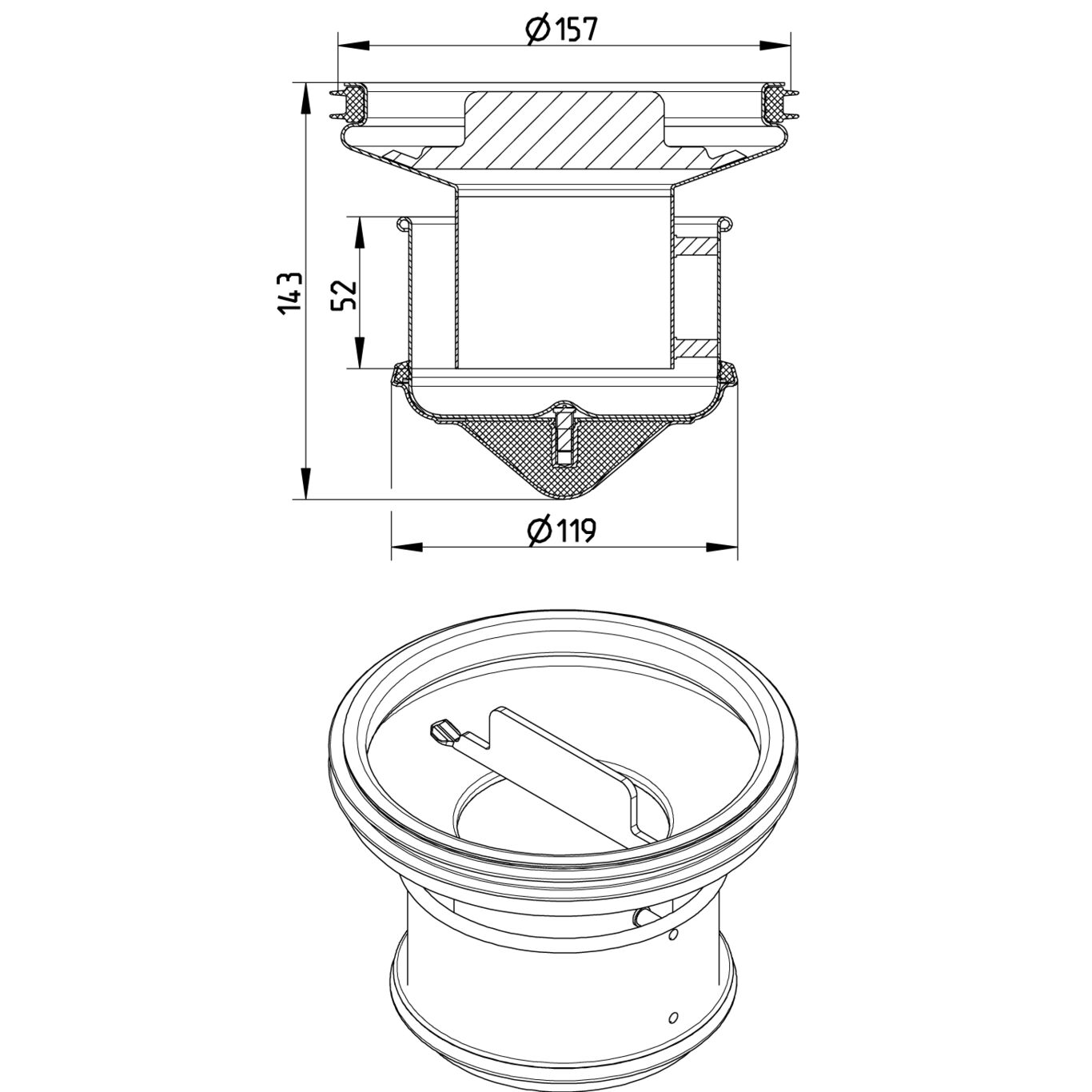

-Water seal height = 52mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 3.3 |
| Minimum Height (mm) | 143 |
| Water Seal Height (mm) | 52 |
| Weight (kg) | 1,08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
