P-TRAP 87.5° - (525.090.160 S)
Part Of the Series: Water trap-p
Type no.: 525.090.160 S
EAN no.: 5705499101492
VVS no.: 160381460
RSK no.: 1550394
LVI no.: 3304022

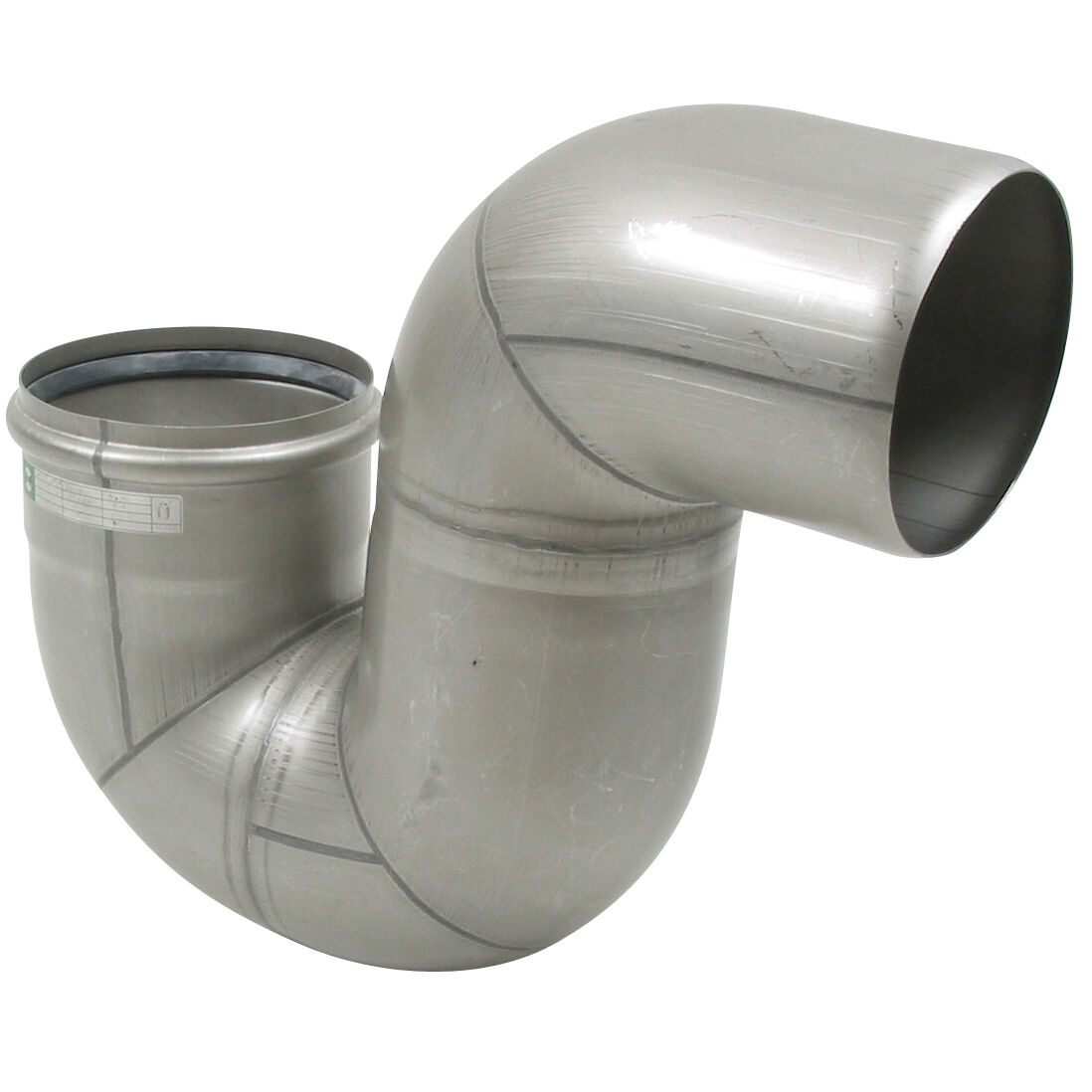

P-TRAP 87.5°
-Diameter: Ø160mm
-Water seal height = 105mm
-Stainless steel: AISI316L/EN1.4404

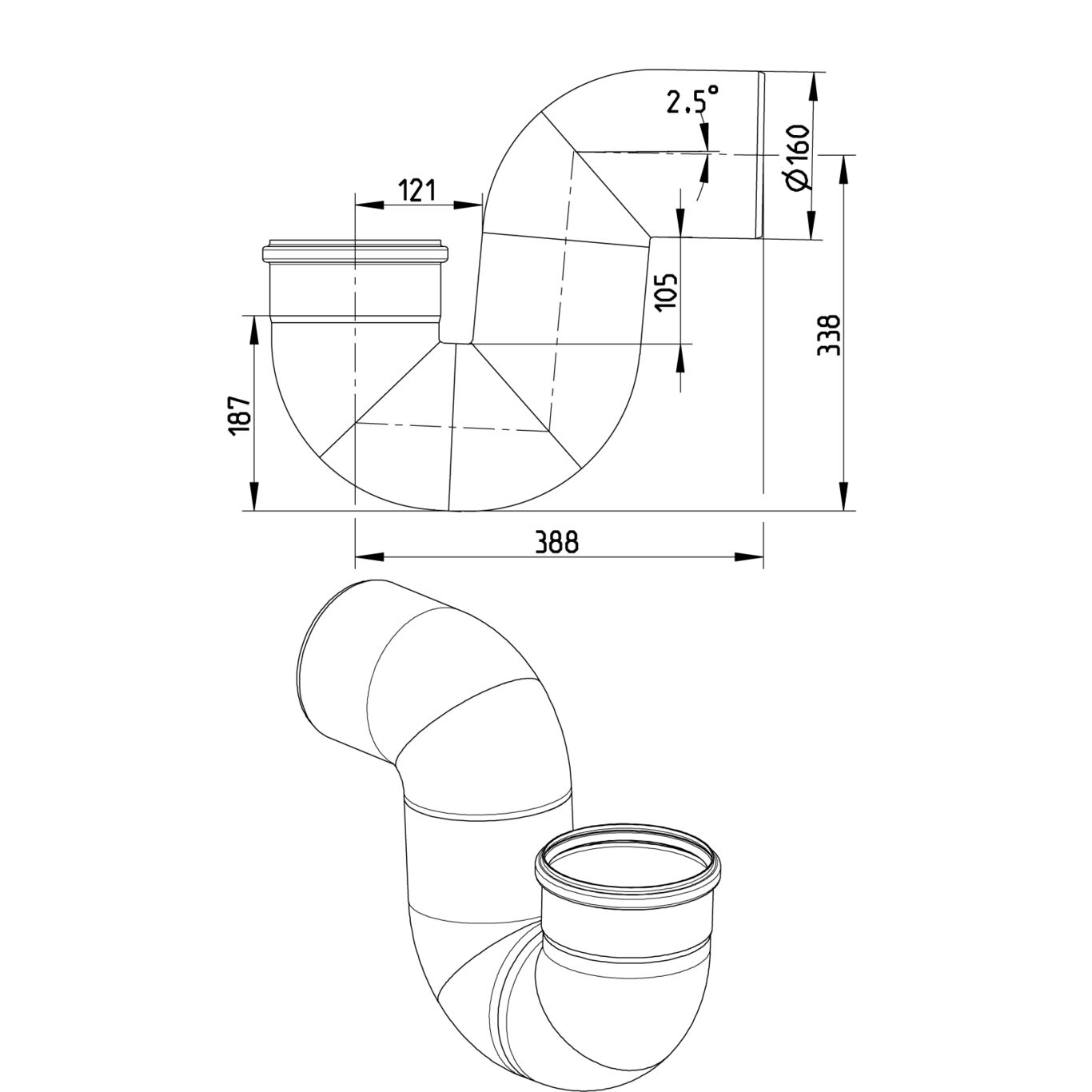

Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 187 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Max Flow (l/s) | 28.5 |
Minimum Flow (l/s) | 7.5 |
Outlet Diameter (mm) | 160 |
Water Seal Height (mm) | 105 |
Weight (kg) | 6,22 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 NO - 0692-22 EuroPipe DK VA 2.41/19631 P-Vandlås dim 50, 75, 110, 125, 160mm Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM
