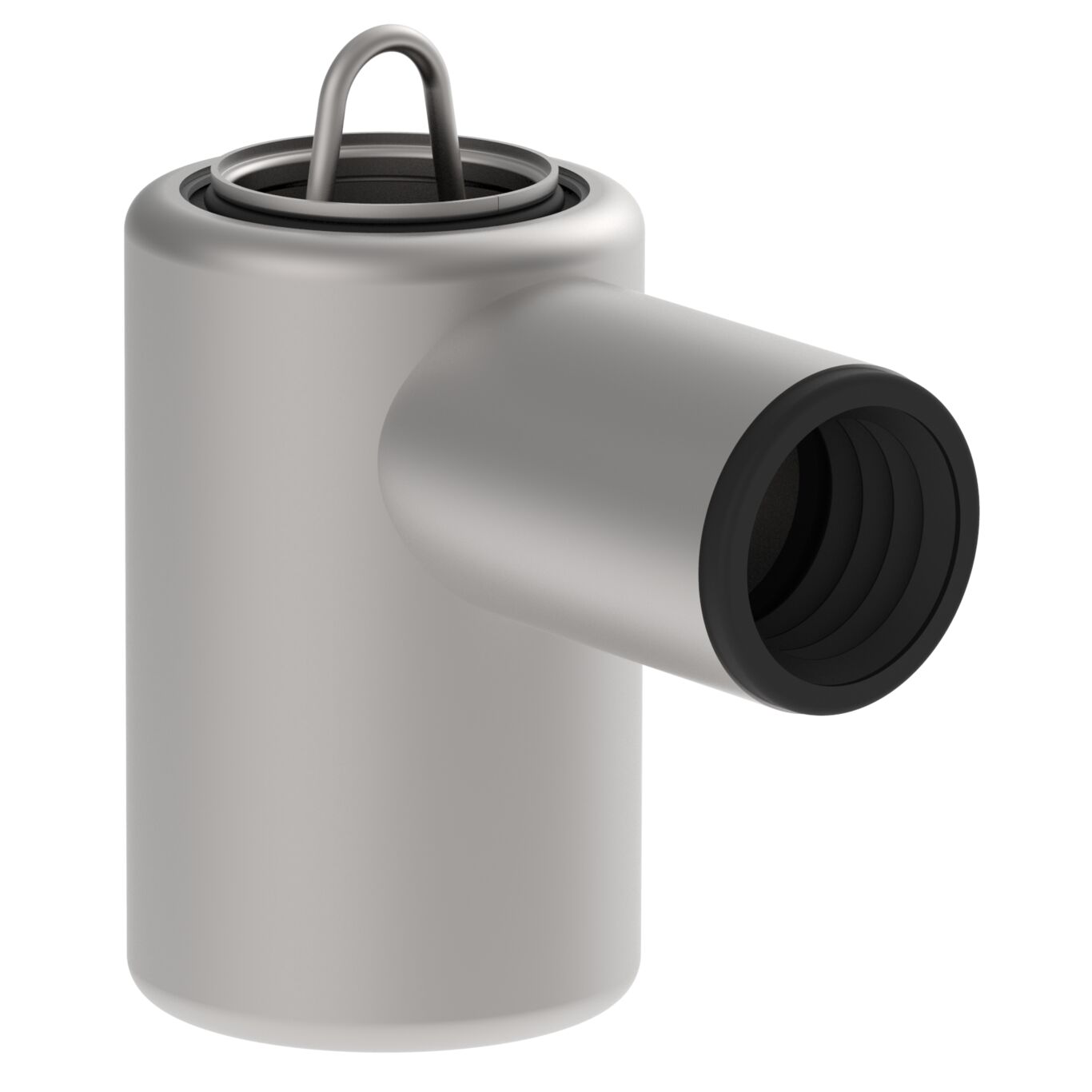

WATERLINE WATER TRAP - (510.000.059)
×
![]()
Part Of the Series: Water trap-Shower channel
Type no.: 510.000.059
EAN no.: 5705499126907
VVS no.: 155059155
WATERLINE WATER TRAP
-To be built in, no retro-fitting
-Water seal height = 50mm
-Outlet: 1½"/Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.7 |
| Minimum Height (mm) | 120 |
| Outlet Diameter (mm) | 50 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,95 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
