WATERLINE WATER TRAP, HIGH - (510.002.075)
Part Of the Series: Water trap-Shower channel
Type no.: 510.002.075
EAN no.: 5705499123067
VVS no.: 155059123
RSK no.: 7121708
NRF no.: 3394813

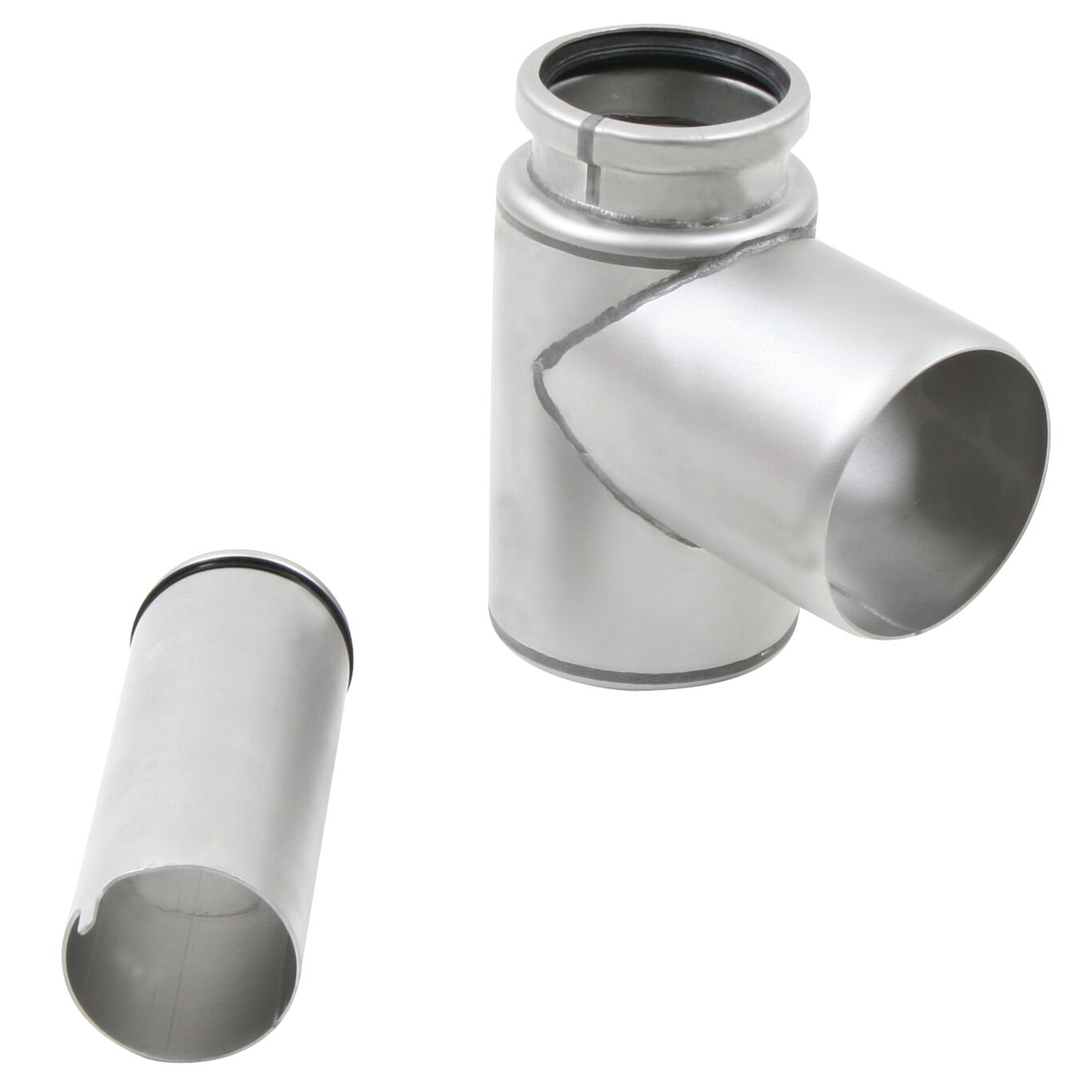

WATERLINE WATER TRAP, HIGH
-To be built in, no retro-fitting
-Water seal height = 50mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301

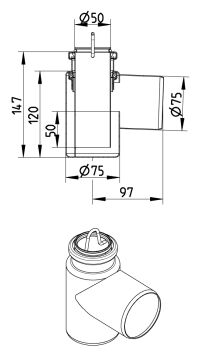

Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 0.8 |
Minimum Height (mm) | 147 |
Outlet Diameter (mm) | 75 |
Water Seal Height (mm) | 50 |
Weight (kg) | 0,58 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
