PENETRATION WITH BIMETAL FLANGE - (878.125.110FS)
Part Of the Series: Penetration-bimetal flange-aluminium
Type no.: 878.125.110FS
EAN no.: 5705499121834
NRF no.: 2172817

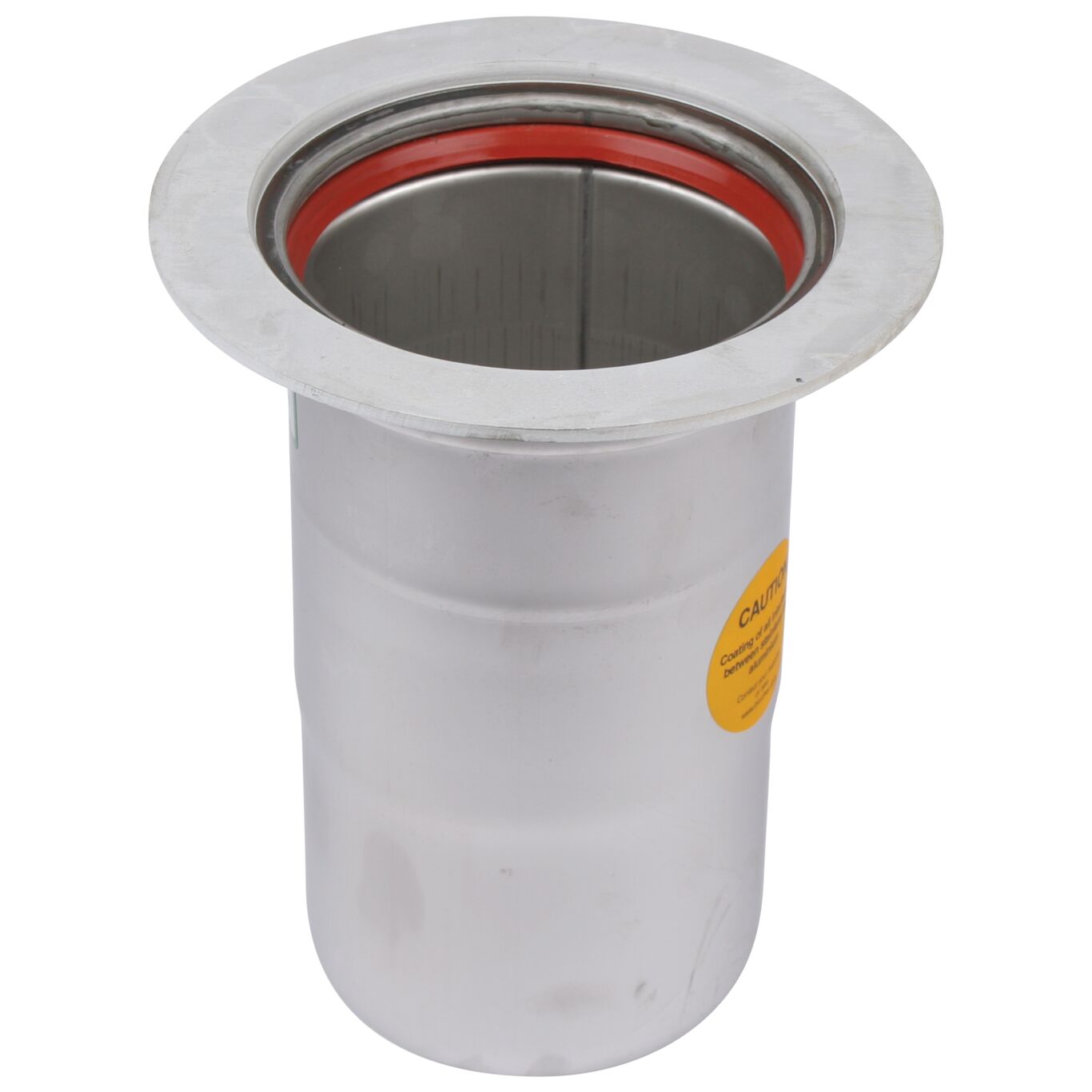

PENETRATION WITH BIMETAL FLANGE
-Diameter: Ø110mm
-With SI sealing
-Deck: aluminium
-Stainless steel: AISI316L/EN1.4404

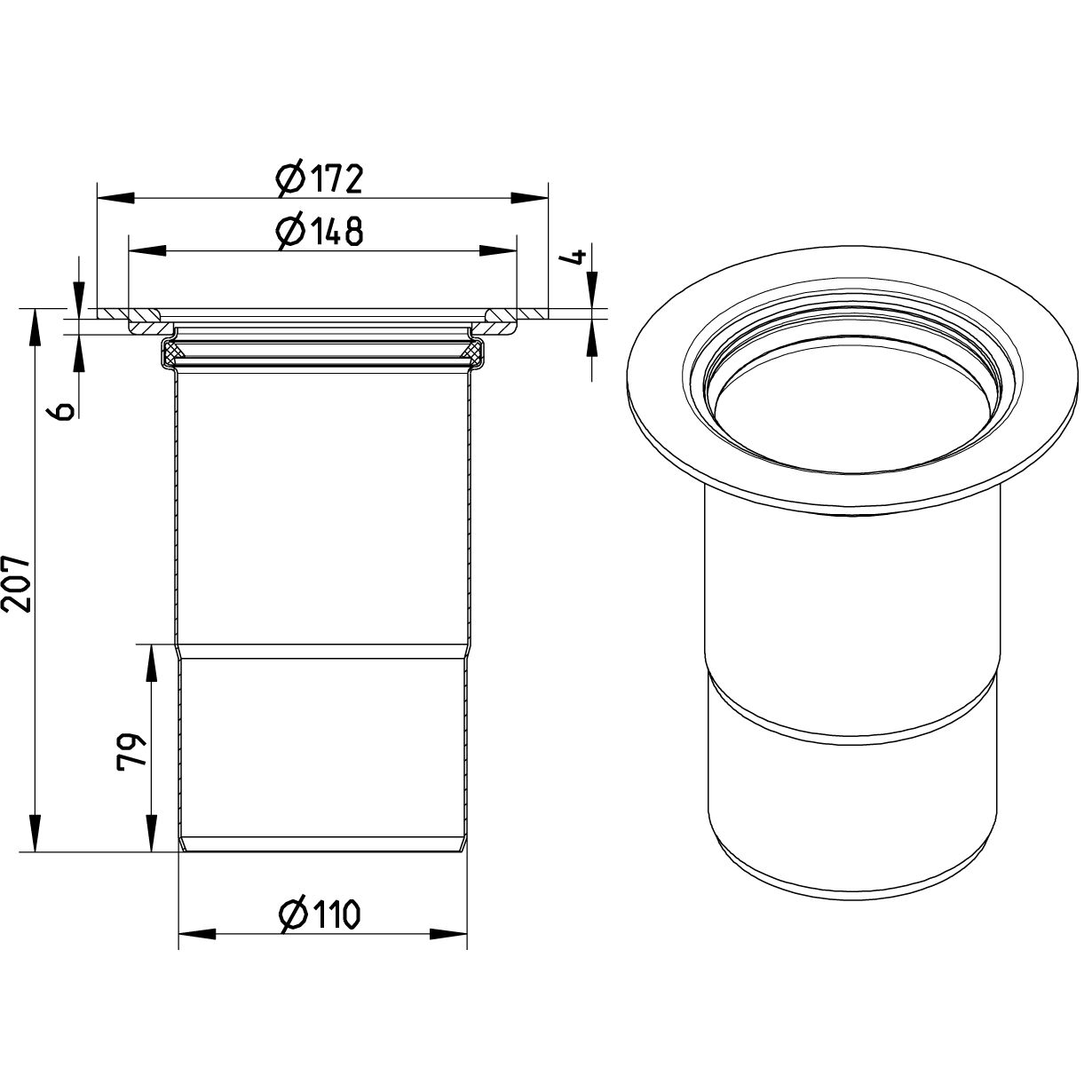

Product Specification | |
---|---|
Deck | Aluminium |
EC/MED (Bulkhead) | A0-A30 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 79 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 207 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,27 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNVGL - MEDB00004MD, Bimetal penetrations
HACCP Food Safety Programme - Europe
HACCP Food Safety Programme - Australasia Lloyds Register LR22419510TA_02 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Achilles Certificate - 46702-22
