PENETRATION FOR CABIN WITH SLEEVE - (870.000.050F)
×
![]()
Part Of the Series: Penetration-cabin-welding sleeve-steel
Type no.: 870.000.050F
EAN no.: 5705499411249
NRF no.: 2172425

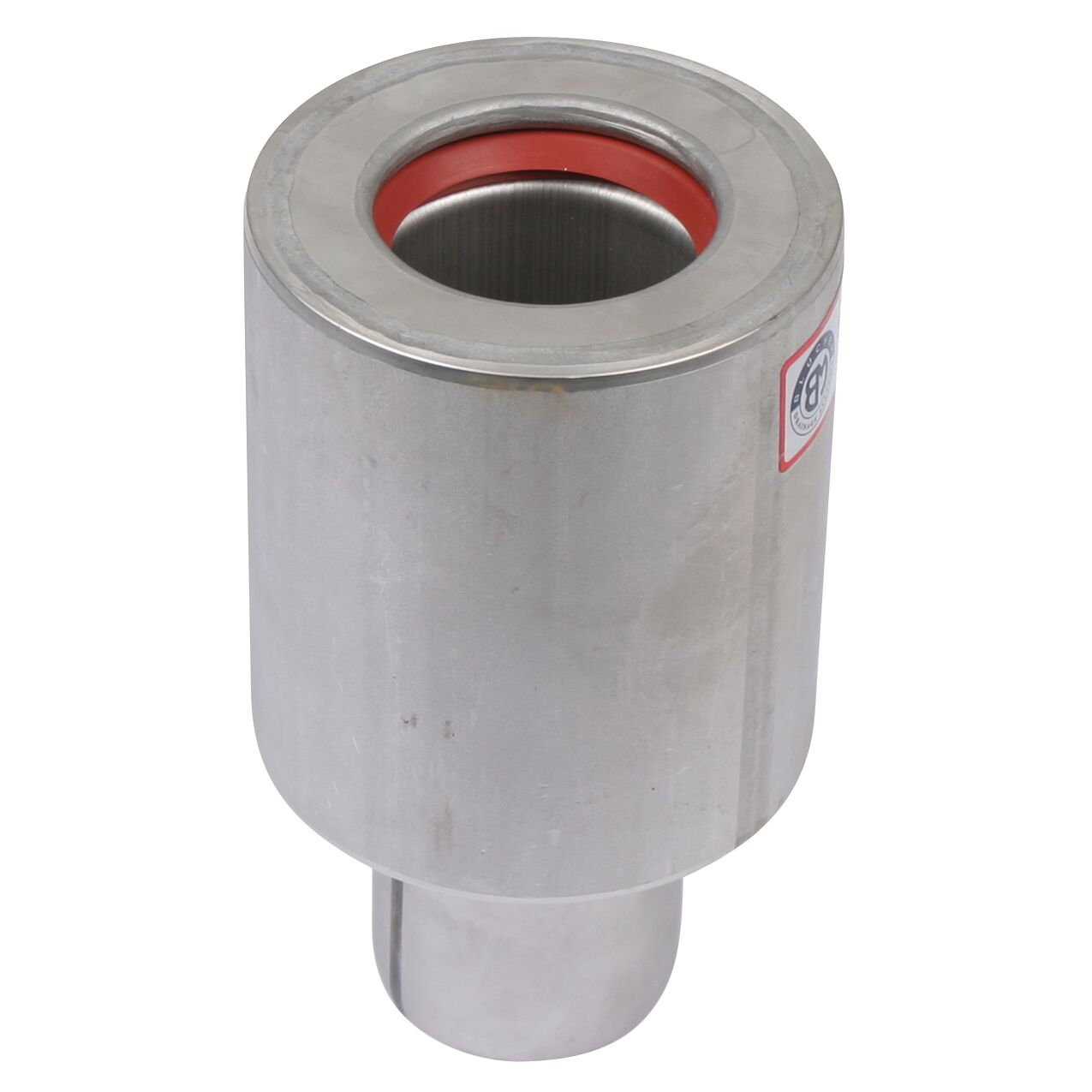

PENETRATION FOR CABIN WITH SLEEVE
-Diameter: Ø50mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 155 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 1,47 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
Declaration of Conformity Welded penetrations
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247
DNV - MERB0001N3Y, Rev0
