PENETRATION FOR CABIN WITH SLEEVE - (870.000.125F)

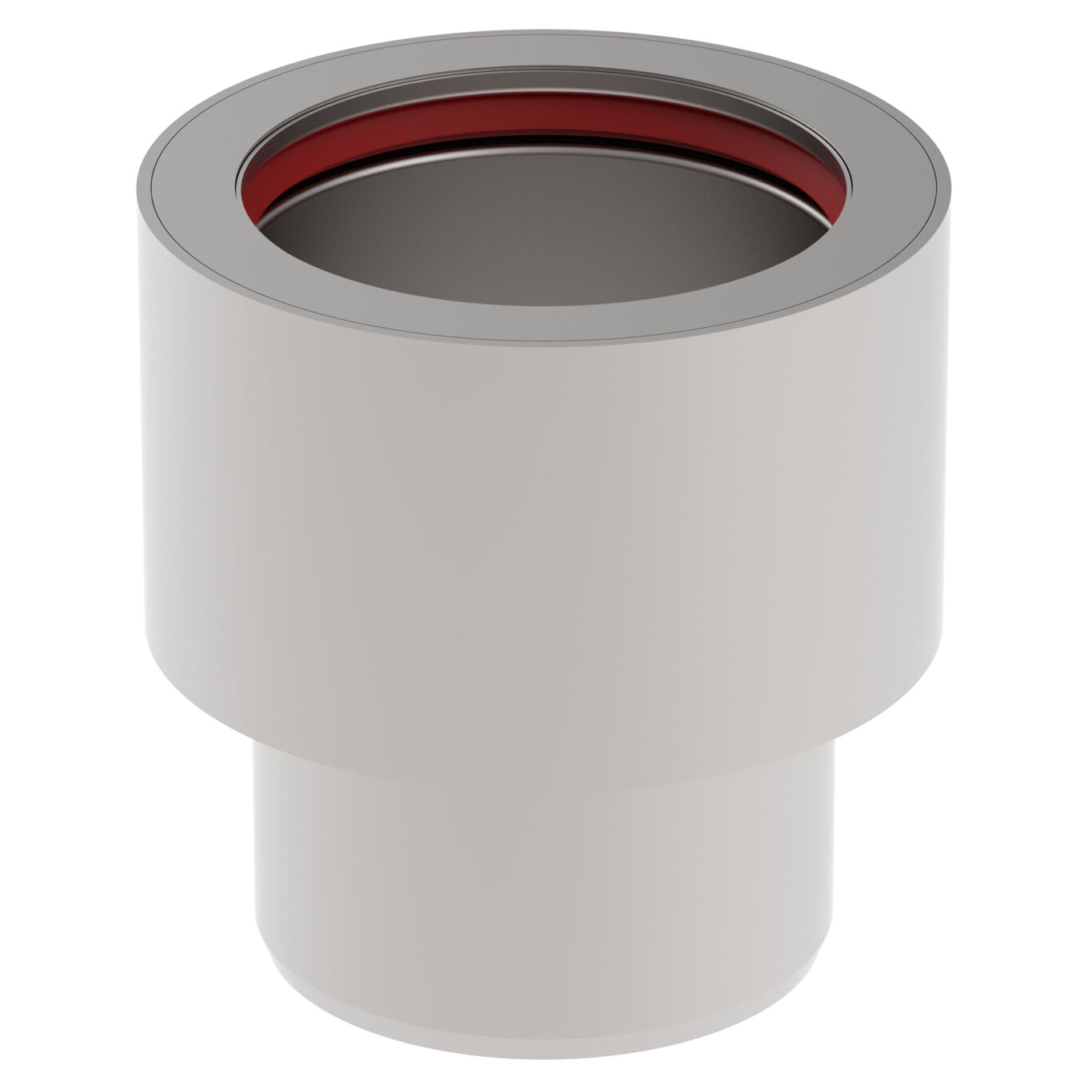

Product image of a penetration from the series Penetration-cabin-welding sleeve-steel.

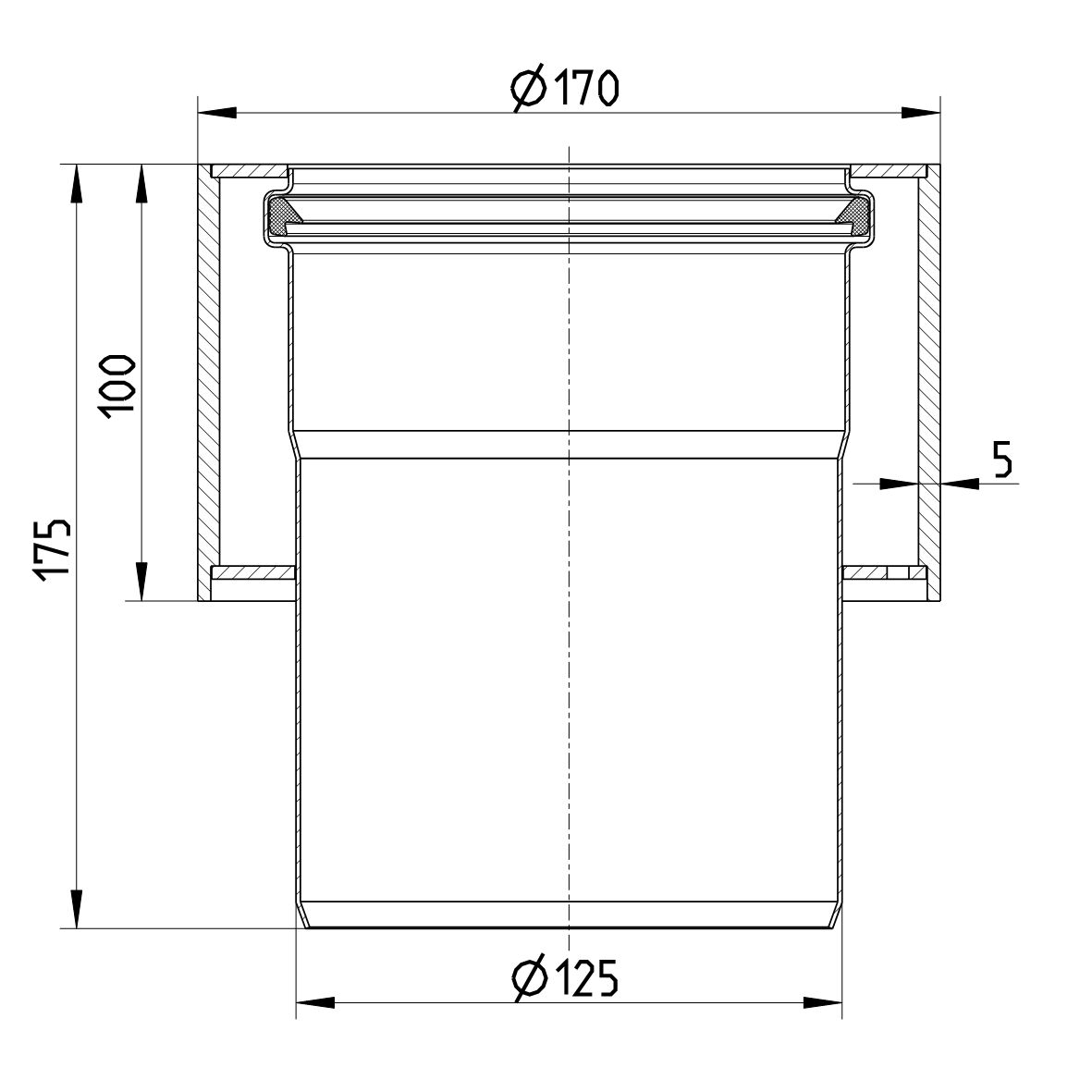

Line drawing of a penetration from the series Penetration-cabin-welding sleeve-steel.

Part Of the Series: Penetration-cabin-welding sleeve-steel

Type no.: 870.000.125F

EAN no.: 5705499140972

PENETRATION FOR CABIN WITH SLEEVE
-With SI sealing
-Diameter: Ø125mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

Product Specification
Deck	Steel
EC/MED (Deck)	A0-A60
Material	AISI 304
Material (EN)	EN 1.4301
Minimum Height (mm)	175
Outlet Diameter (mm)	125
Weight (kg)	2,95

Downloads
- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approval Information

For approval information, please refer to the below approval certificates.

HACCP Food Safety Programme - Europe DNV - MEDB000016W, Rev8, Penetrations with SI sealing TÜRK LOYDU - 25041616077231247 HACCP Food Safety Programme - Australasia DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Achilles Certificate - 46702 MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings ClassNK - Type870, TA21161E(N)_21FPA13DA Lloyds Register LR22419510TA_02
