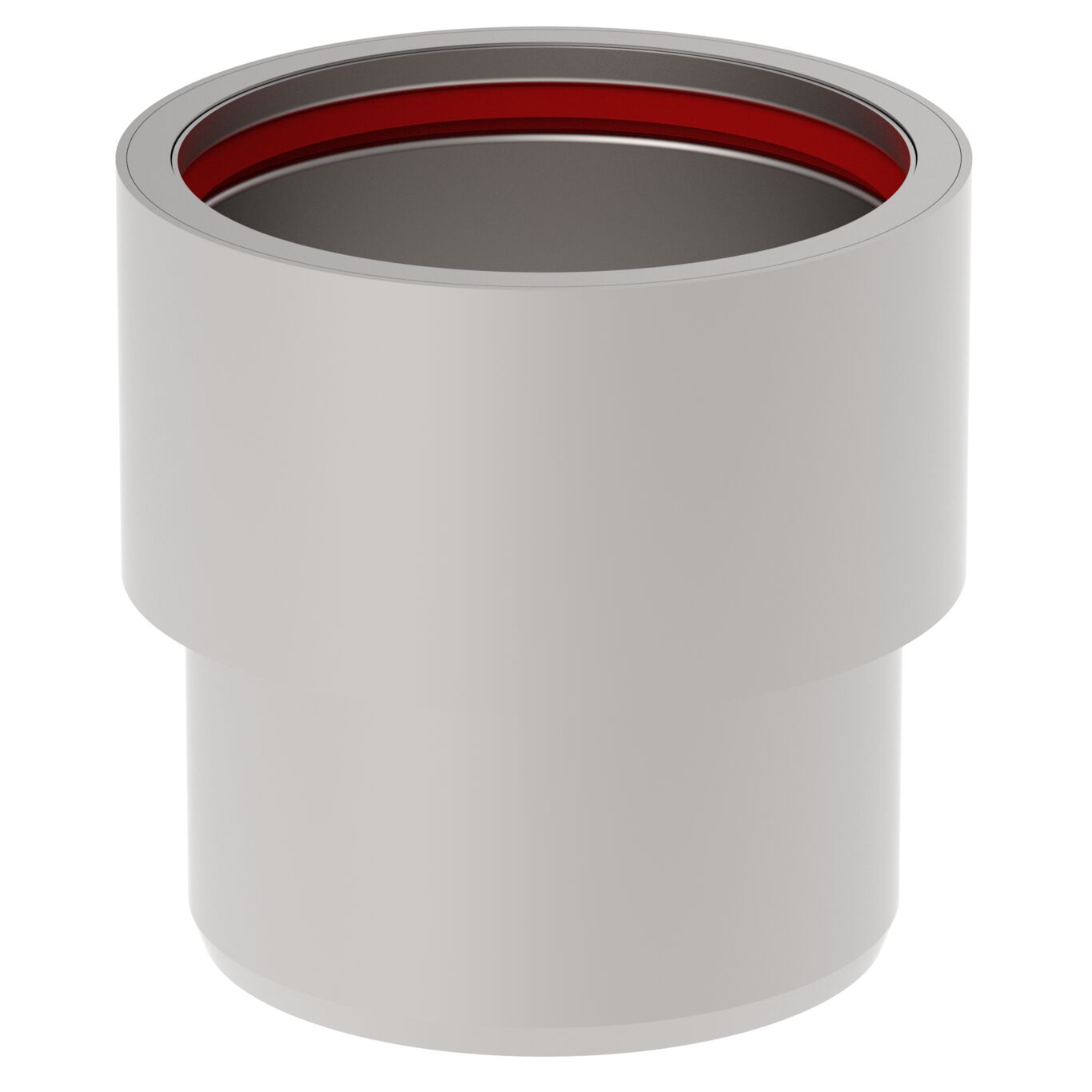

PENETRATION FOR CABIN WITH SLEEVE - (870.000.200F)
×
![]()
Part Of the Series: Penetration-cabin-welding sleeve-steel
Type no.: 870.000.200F
EAN no.: 5705499140996
PENETRATION FOR CABIN WITH SLEEVE
-With SI sealing
-Diameter: Ø200mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

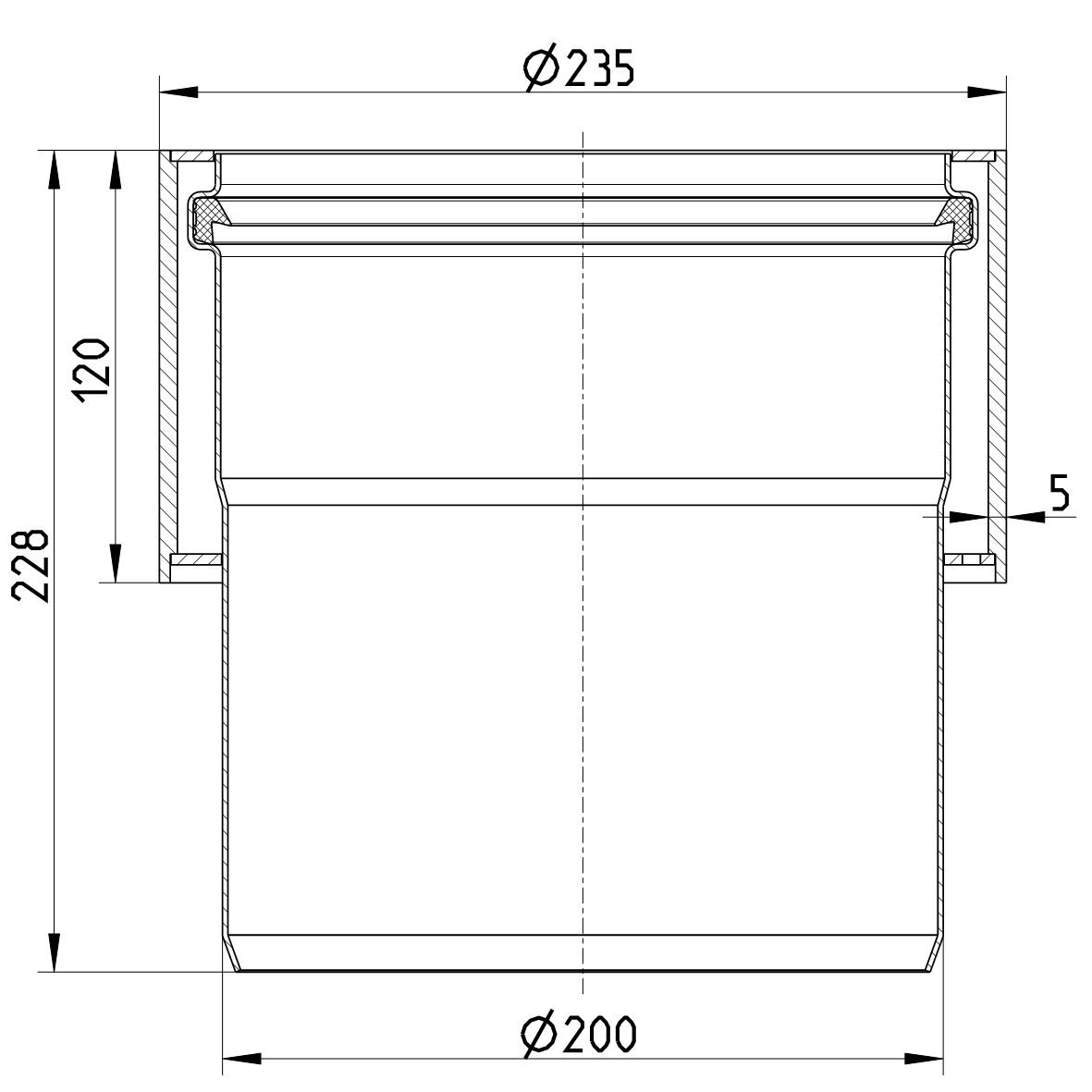

| Minimum Height (mm) | 228 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 5,57 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Achilles Certificate - 46702 ClassNK - Type870, TA21161E(N)_21FPA13DA KR - Type Approval CPH42135-PE001
