PENETRATION WITH FLANGE - (868.910.050 S)
×
![]()
Part Of the Series: Penetration-no welding
Type no.: 868.910.050 S
EAN no.: 5705499139525

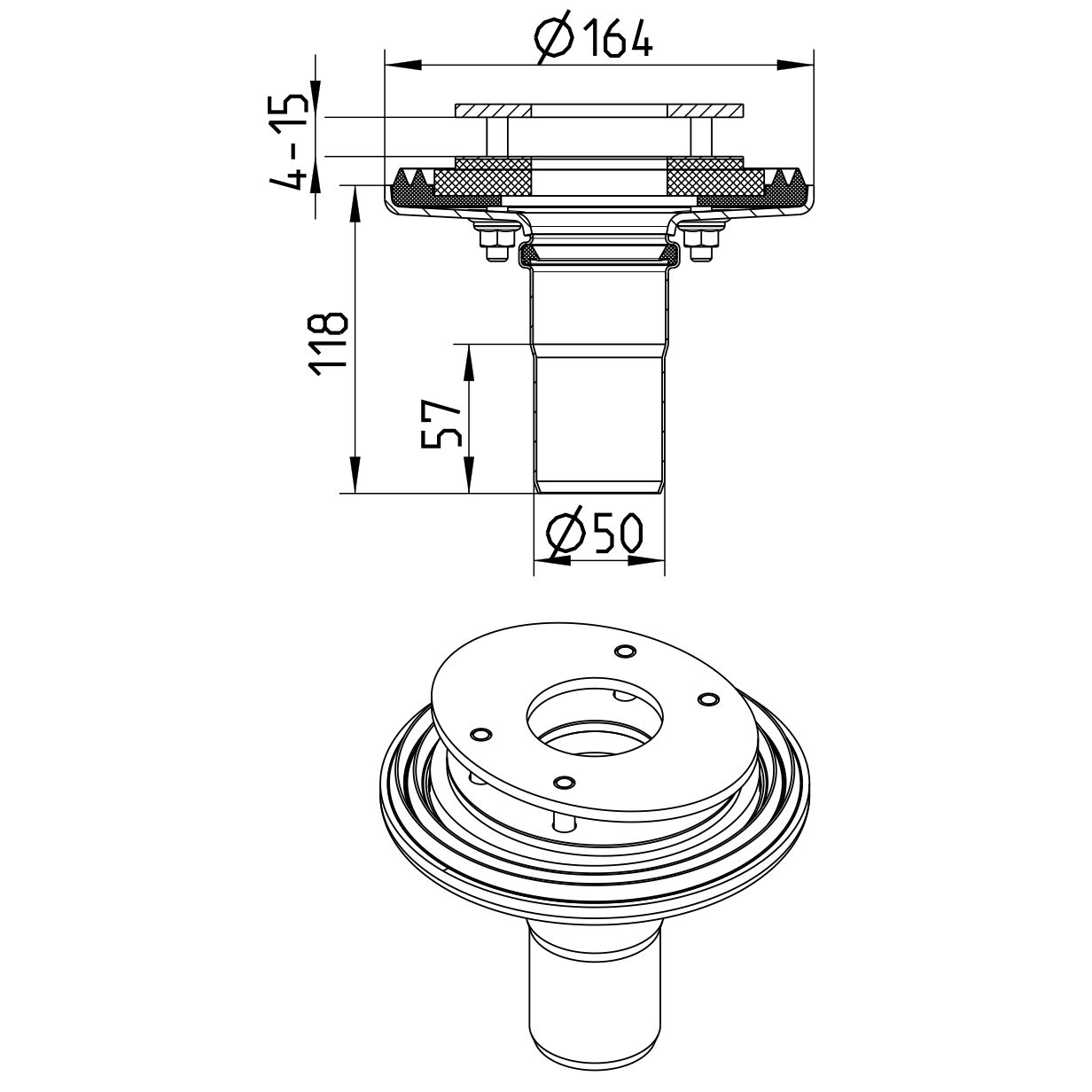

PENETRATION WITH FLANGE
-Non-welded, with EPDM sealing
-Diameter: Ø50mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 57 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 3,14 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
