PENETRATION WITH FLANGE - (868.910.125 S)

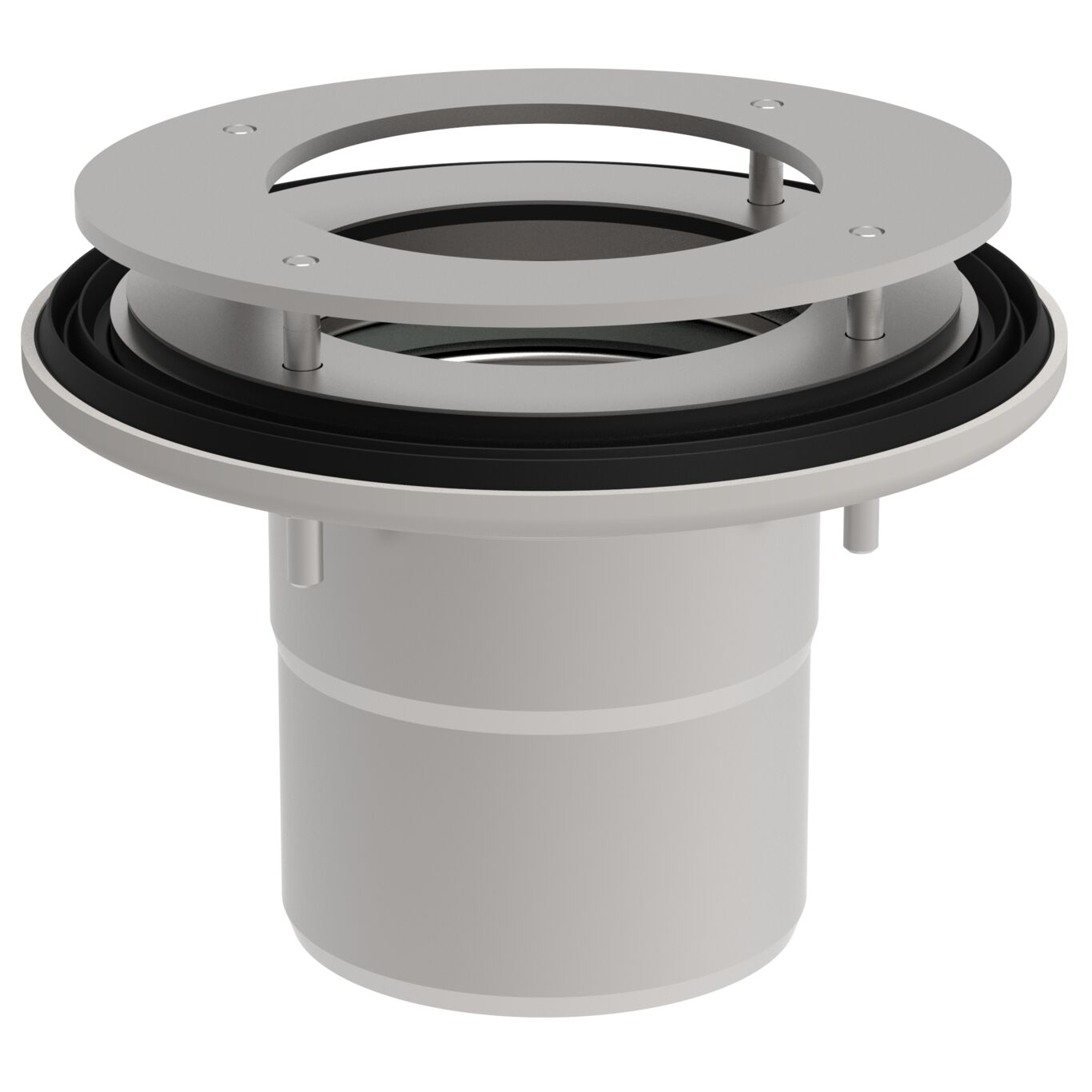

Product image of a penetration from the series Penetration-no welding.

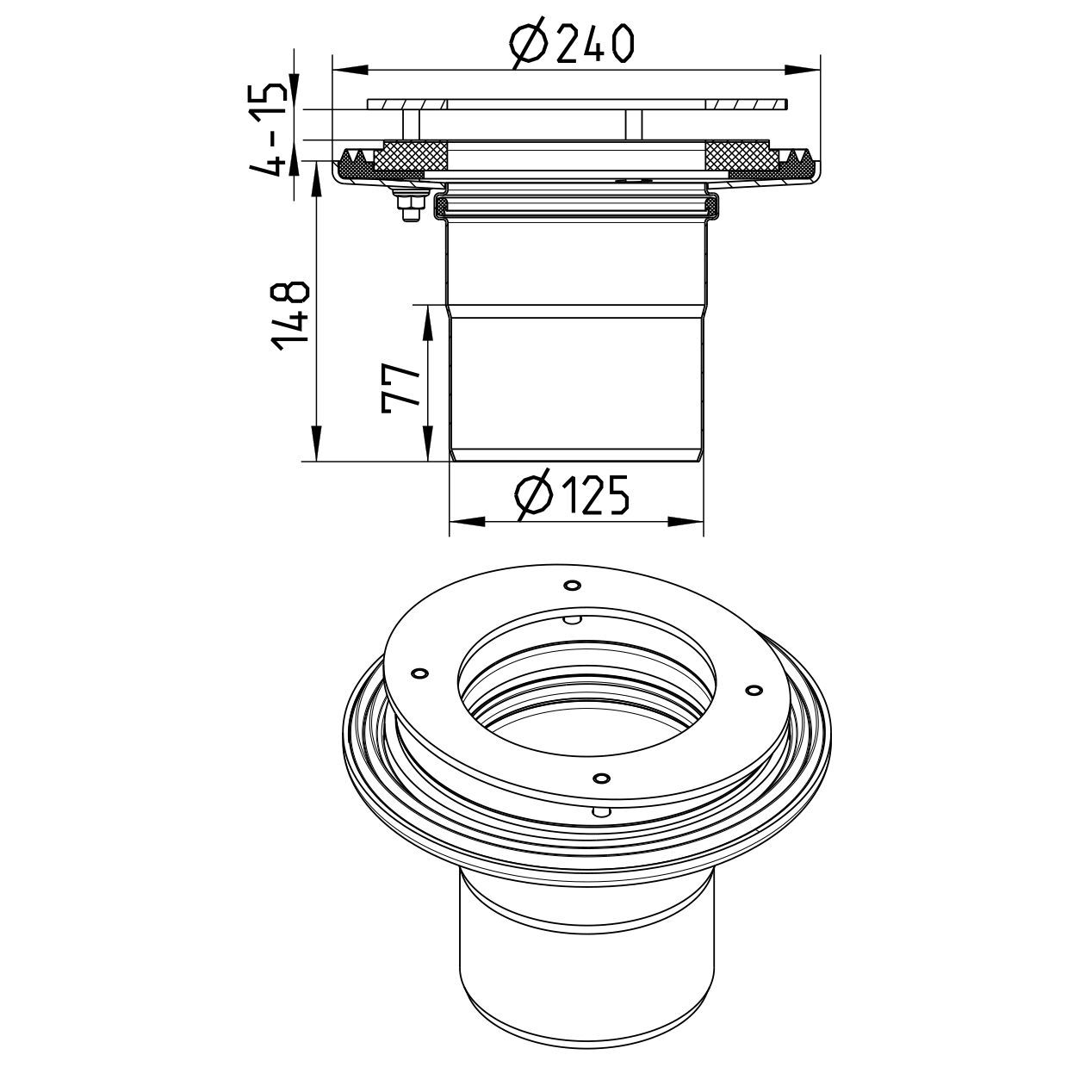

Line drawing of a penetration from the series Penetration-no welding.

Part Of the Series: Penetration-no welding

Type no.: 868.910.125 S

EAN no.: 5705499139556

PENETRATION WITH FLANGE
-Non-welded, with EPDM sealing
-Diameter: Ø125mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404

Product Specification
Deck	Steel
EC/MED (Deck)	A0-A60
Length (mm)	77
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	125
Weight (kg)	5,61

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

HACCP Food Safety Programme - Europe BLÜCHER® EuroPipe EPD DNVGL - MEDB00006YG, Plug n' Play penetrations HACCP Food Safety Programme - Australasia Declaration of Conformity Welded penetrations Declaration of Conformity Non-welded penetrations TÜRK LOYDU - 25041616077231247 DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings

Share this Product

Product Accessories

Clamps

PIPE JOINT CLAMP - (847.125.125)

Oil and Lubricants

JOINTING LUBRICANT 0.5 L - (007.100.050)

GLIDEX SILICONE LUBRICANT - (007.200.040)

JOINTING LUBRICANT 0.5 L - (007.100.050 SIL)

Plugs

SOCKET PLUG - (844.000.125 S)

Sealing Rings

NBR SEAL BLACK/YELLOW - (801.NBR.125)

FPM LIP SEALING GREEN, Ø125MM - (801.FPM.125)

EPDM LIP SEALING BLACK, Ø125MM - (801.EPDM.125)
