PENETRATION WITH FLANGE - (868.910.160 S)

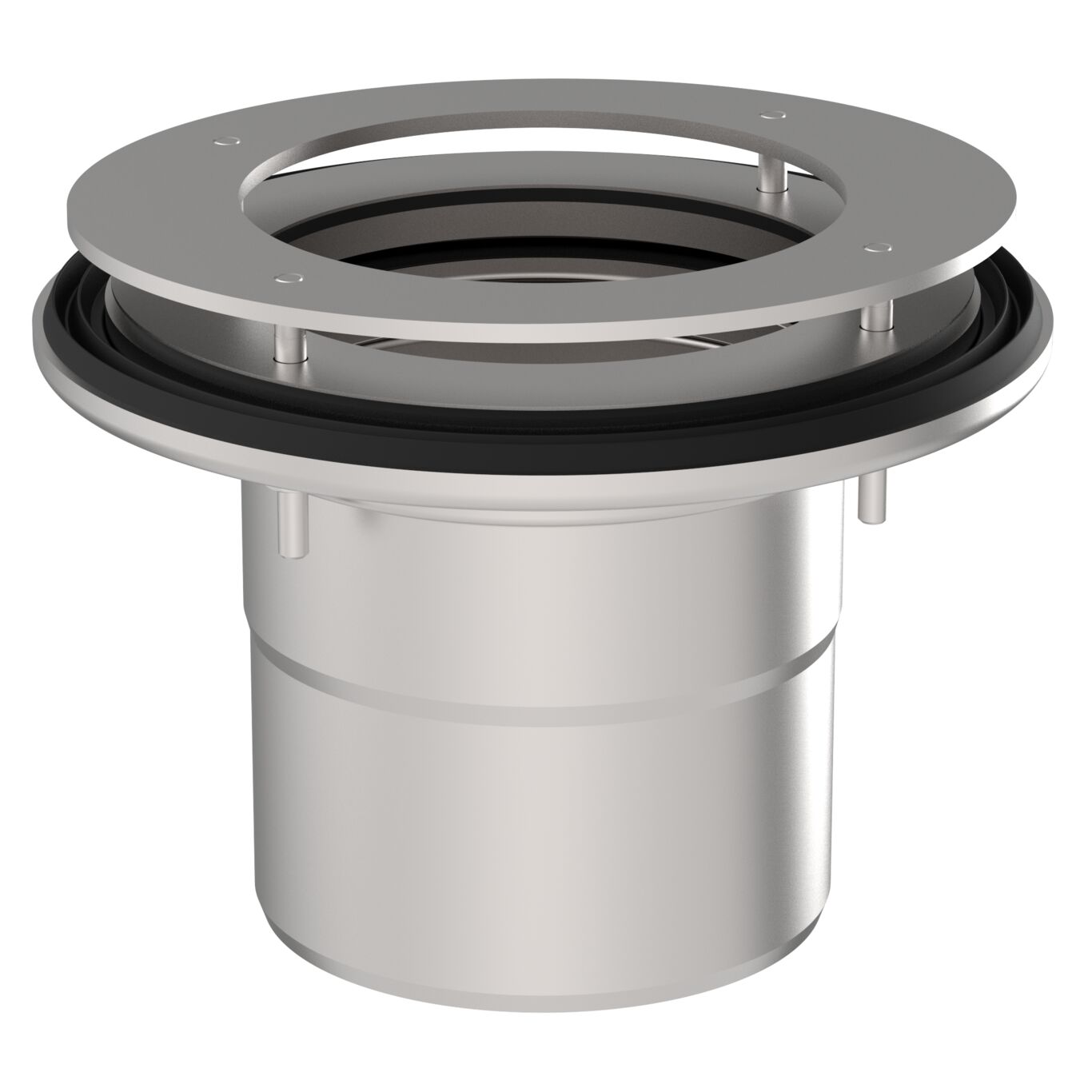

Product image of a penetration from the series Penetration-no welding.

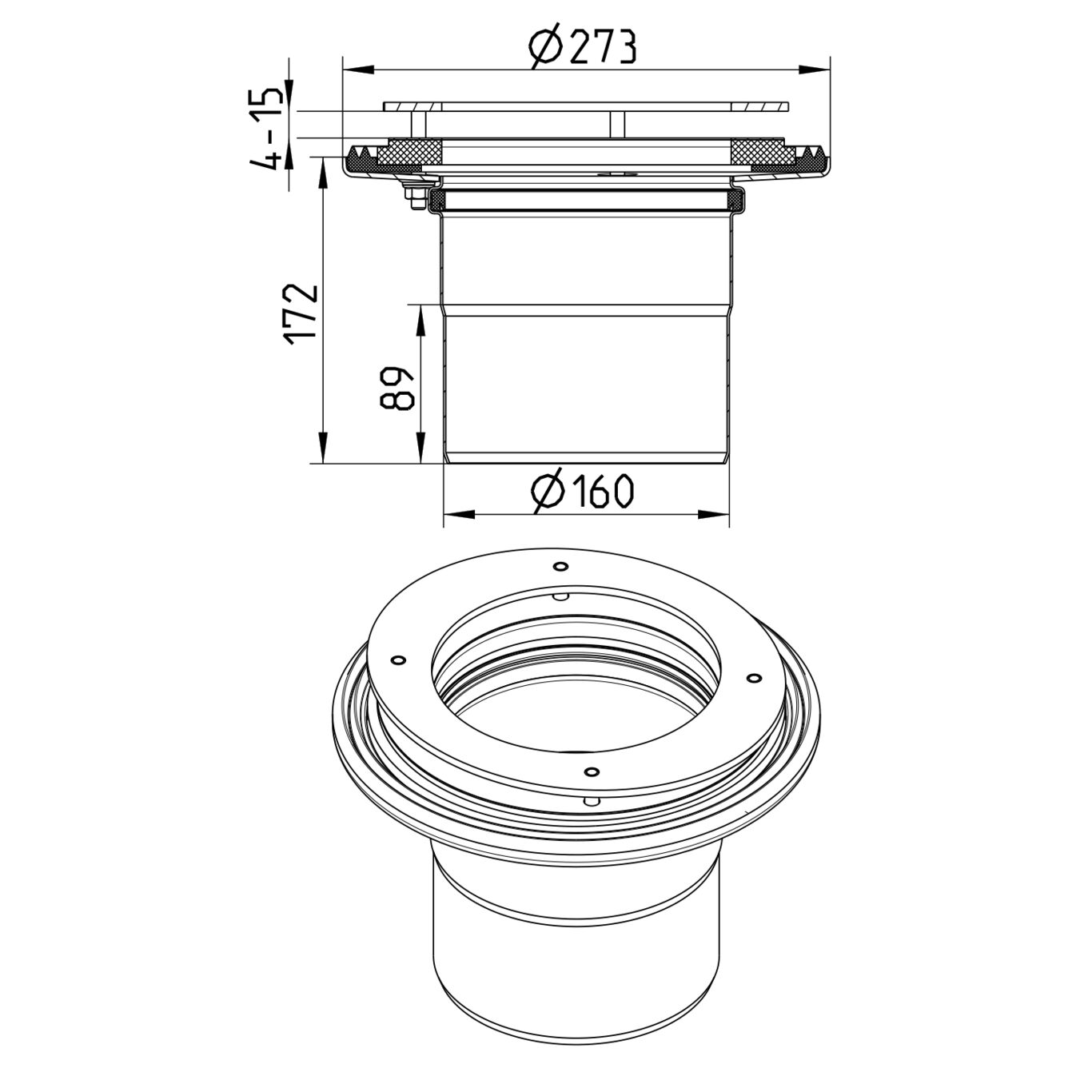

Line drawing of a penetration from the series Penetration-no welding.

Part Of the Series: Penetration-no welding

Type no.: 868.910.160 S

EAN no.: 5705499139563

PENETRATION WITH FLANGE
-Non-welded, with EPDM sealing
-Diameter: Ø160mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404

Product Specification
Deck	Steel
EC/MED (Deck)	A0-A60
Length (mm)	89
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	160
Weight (kg)	7,02

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

BLÜCHER® EuroPipe EPD DNVGL - MEDB00006YG, Plug n' Play penetrations Declaration of Conformity Non-welded penetrations HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe TÜRK LOYDU - 25041616077231247 Declaration of Conformity Welded penetrations ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe
