PENETRATION WITH FLANGE - (868.000.040F)
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.040F
EAN no.: 5705499140781

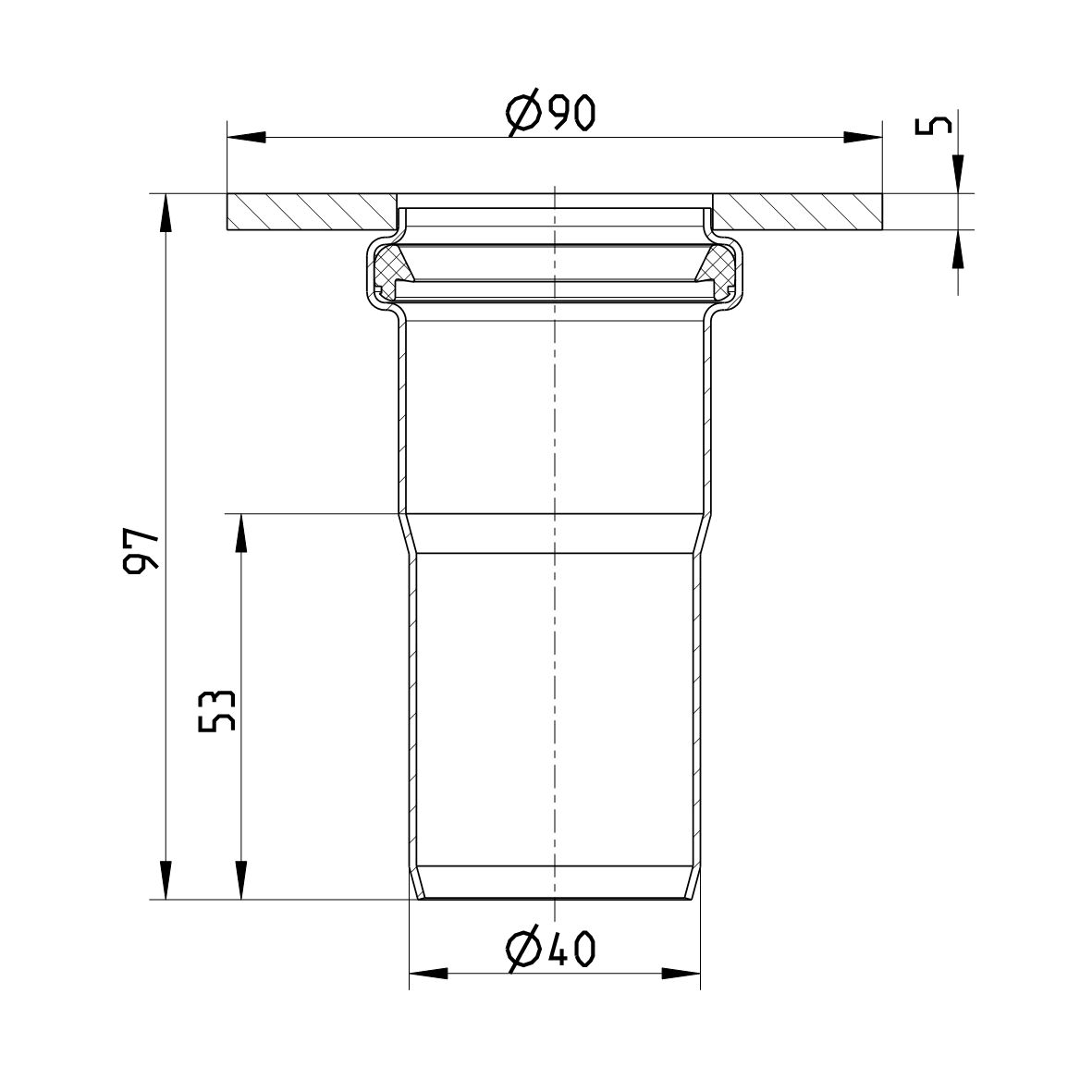

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø40mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 53 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 97 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Europe RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 ClassNK - Type868, TA21160E(N)_21FPA12DA Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA
