PENETRATION WITH FLANGE - (868.000.050FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.050FS
EAN no.: 5705499140828

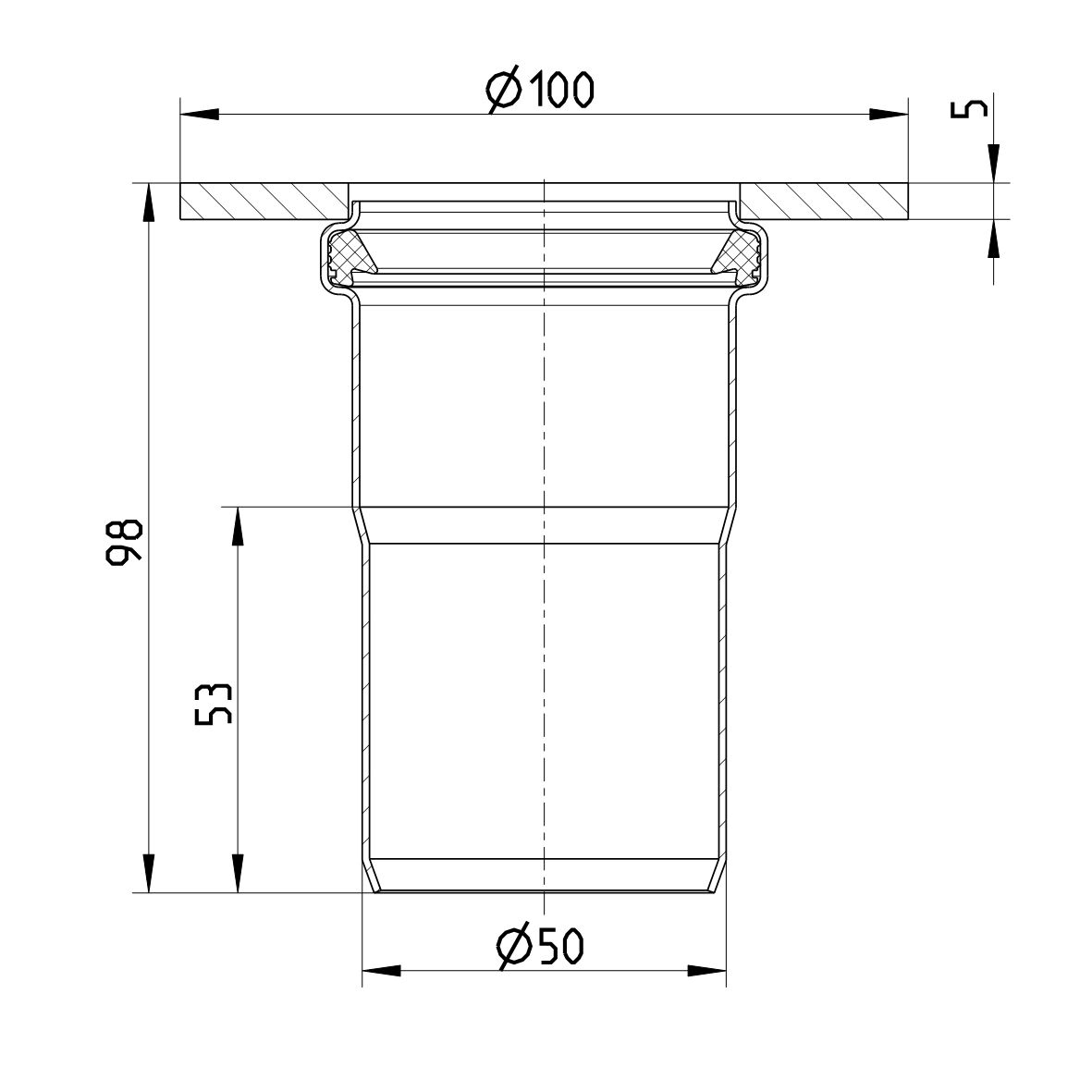

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø50mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 53 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 98 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MERB0001N3Y, Rev0
HACCP Food Safety Programme - Australasia
BLÜCHER® EuroPipe EPD
Declaration of Conformity Welded penetrations
TÜRK LOYDU - 25041616077231247 DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Achilles Certificate - 46702 Lloyds Register LR22419510TA_02
