PENETRATION WITH FLANGE - (868.000.075FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.075FS
EAN no.: 5705499140842

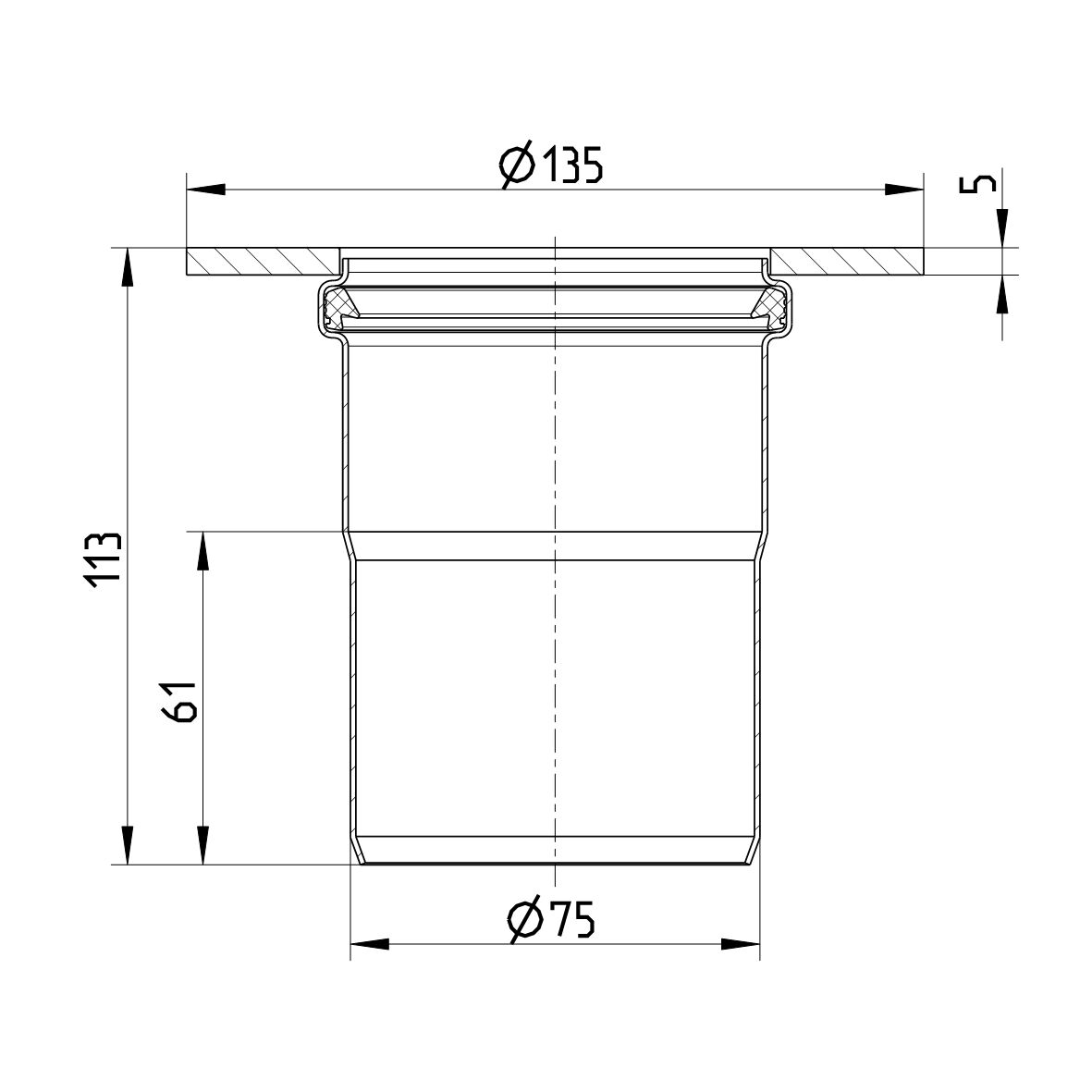

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø75mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 61 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 113 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,61 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings ClassNK - Type868, TA21160E(N)_21FPA12DA Lloyds Register LR22419510TA
