PENETRATION WITH FLANGE - (868.000.110F)

Product image of a penetration from the series Penetration-welding flange-steel.

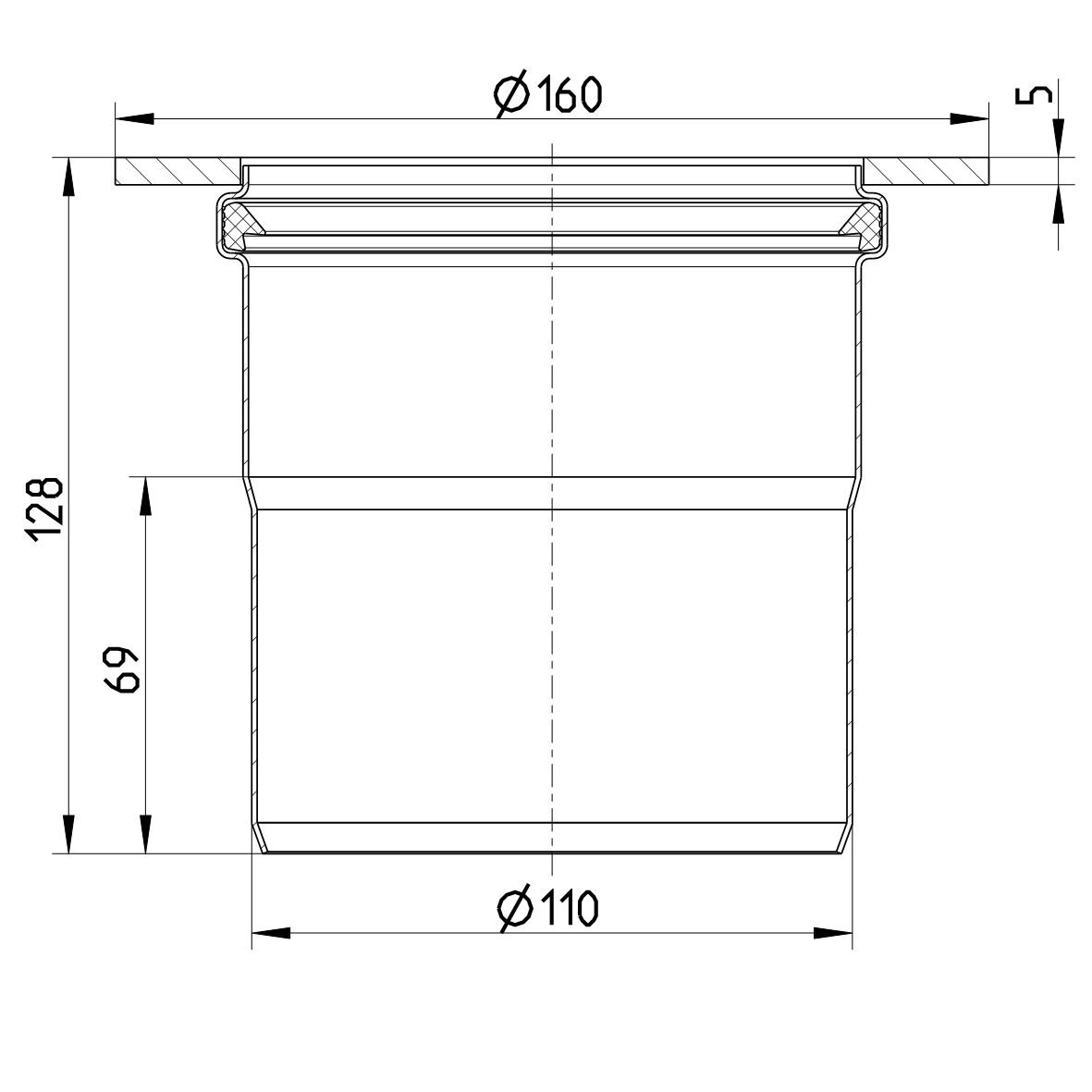

Line drawing of a penetration from the series Penetration-welding flange-steel.

Part Of the Series: Penetration-welding flange-steel

Type no.: 868.000.110F

EAN no.: 5705499140859

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø110mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

Product Specification
Deck	Steel
EC/MED (Bulkhead)	A0-A60
EC/MED (Deck)	A0-A60
Length (mm)	69
Material	AISI 304
Material (EN)	EN 1.4301
Minimum Height (mm)	128
Outlet Diameter (mm)	110
Weight (kg)	0,78

Downloads
- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approval Information

For approval information, please refer to the below approval certificates.

TÜRK LOYDU - 25041616077231247 DNV - MEDB000016W, Rev8, Penetrations with SI sealing Declaration of Conformity Welded penetrations DNV - MERB0001N3Y, Rev0 HACCP Food Safety Programme - Australasia BLÜCHER® EuroPipe EPD HACCP Food Safety Programme - Europe MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA
