PENETRATION WITH FLANGE - (868.125.110FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.125.110FS
EAN no.: 5705499411232
NRF no.: 2172786

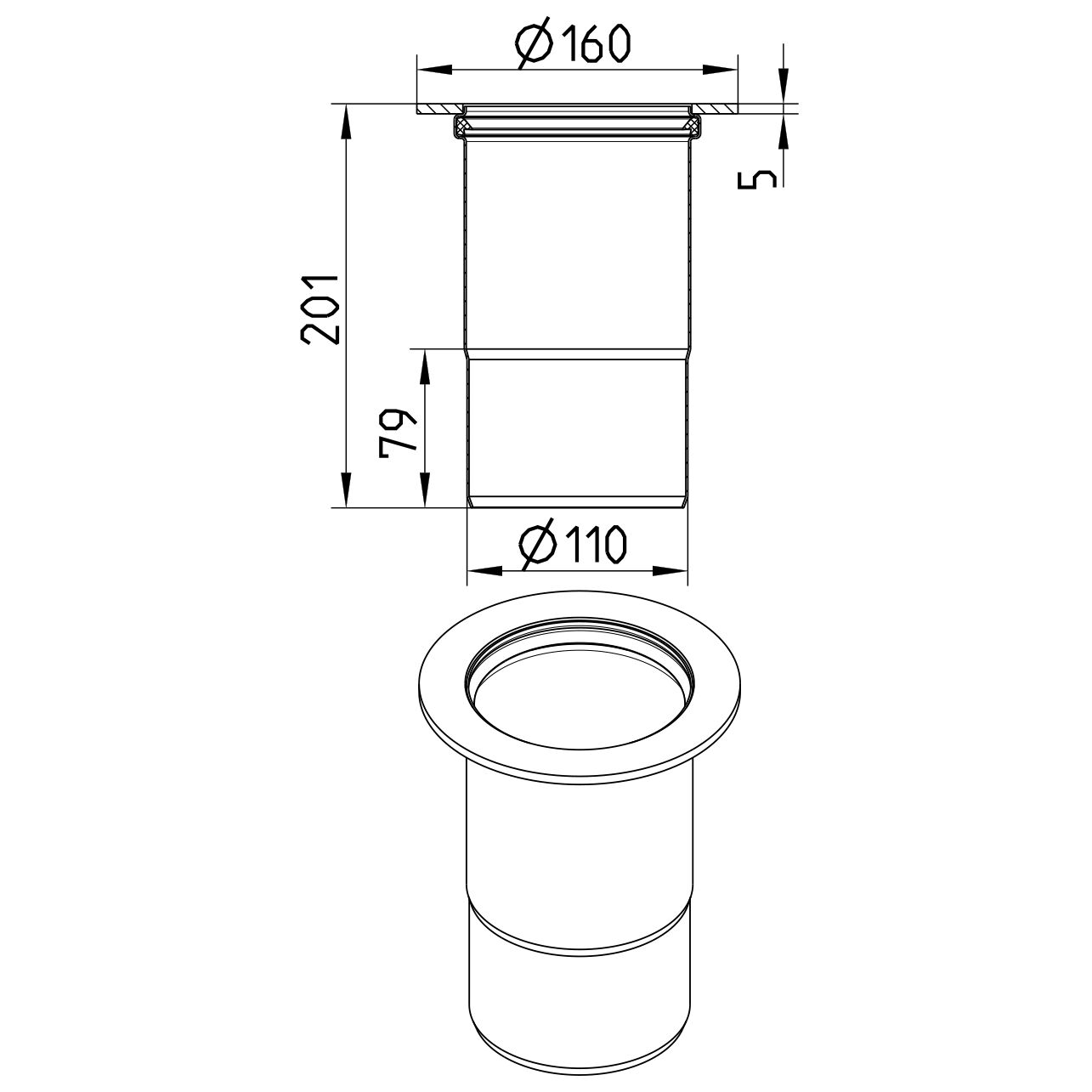

PENETRATION WITH FLANGE
-Diameter: Ø110mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 79 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 201 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247
DNV - MERB0001N3Y, Rev0
BLÜCHER® EuroPipe EPD MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702 Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA ABS - 23-2329630-PDA
