PENETRATION WITH FLANGE - (868.182.160F)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.182.160F
EAN no.: 5705499140927
PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø160mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

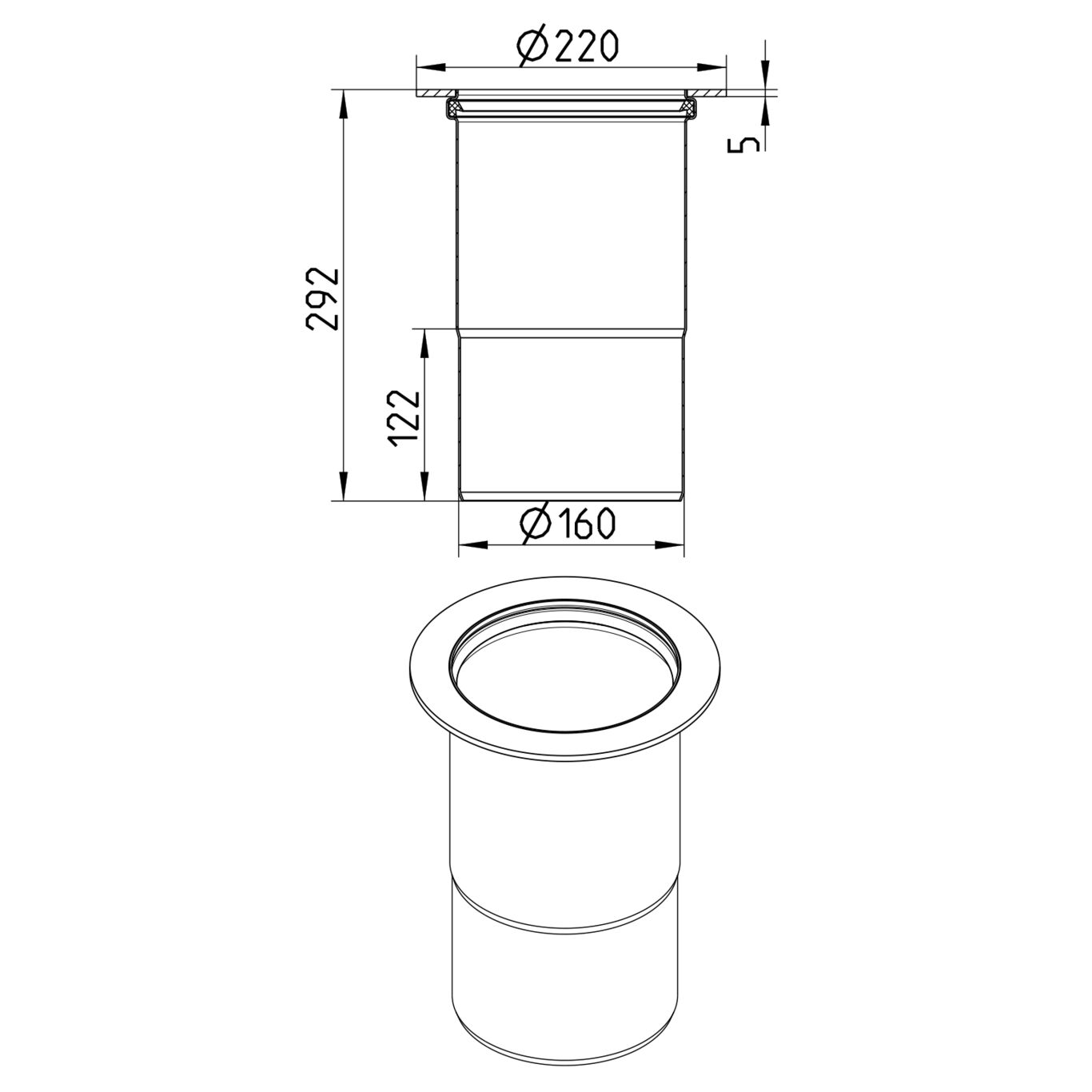

| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 122 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 292 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,23 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing Lloyds Register LR22419510TA ClassNK - Type868, TA21160E(N)_21FPA12DA KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings
