PENETRATION WITH FLANGE - (868.182.160FS)
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.182.160FS
EAN no.: 5705499139662

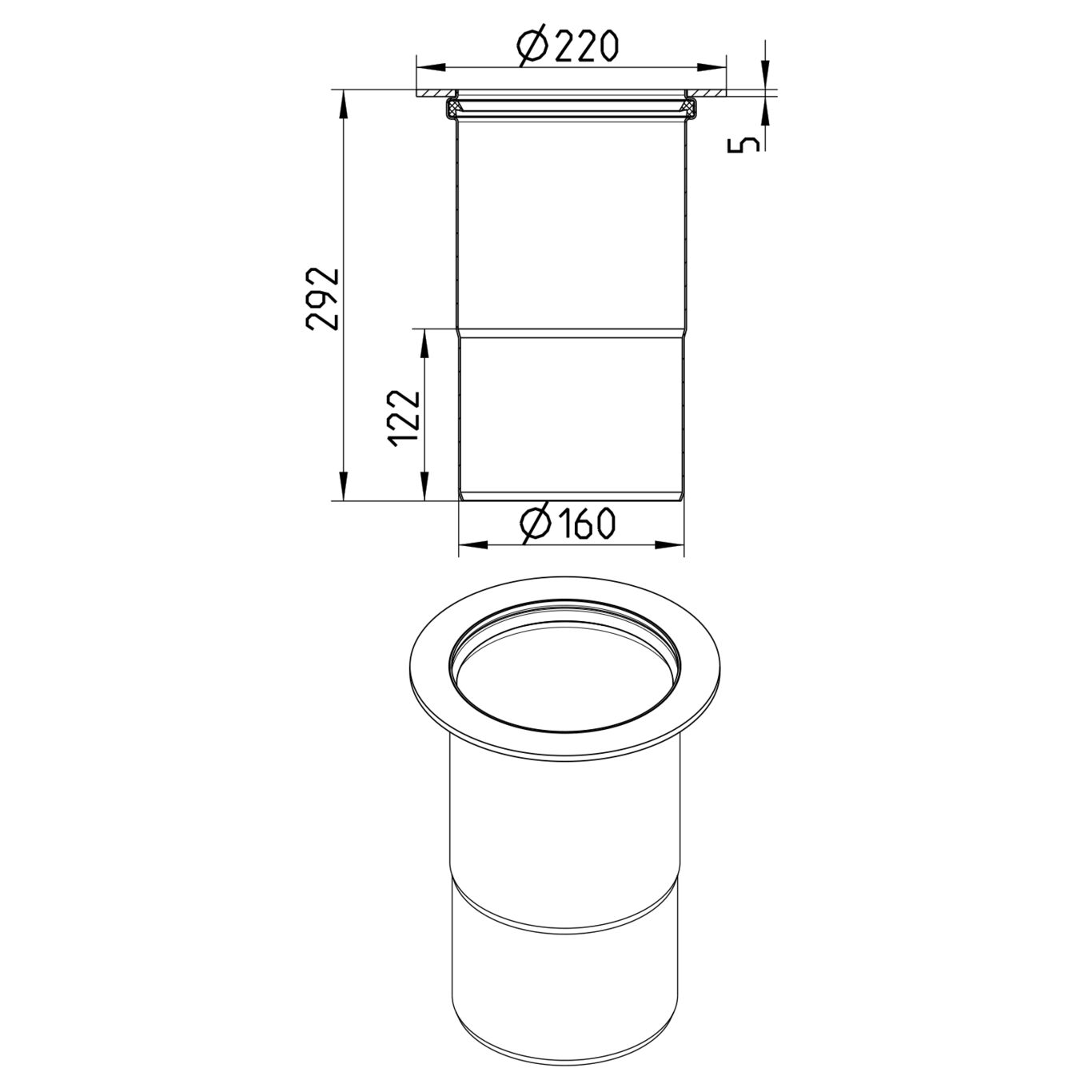

PENETRATION WITH FLANGE
-Diameter: Ø160mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 122 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 292 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 2,22 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Lloyds Register LR22419510TA ClassNK - Type868, TA21160E(N)_21FPA12DA
