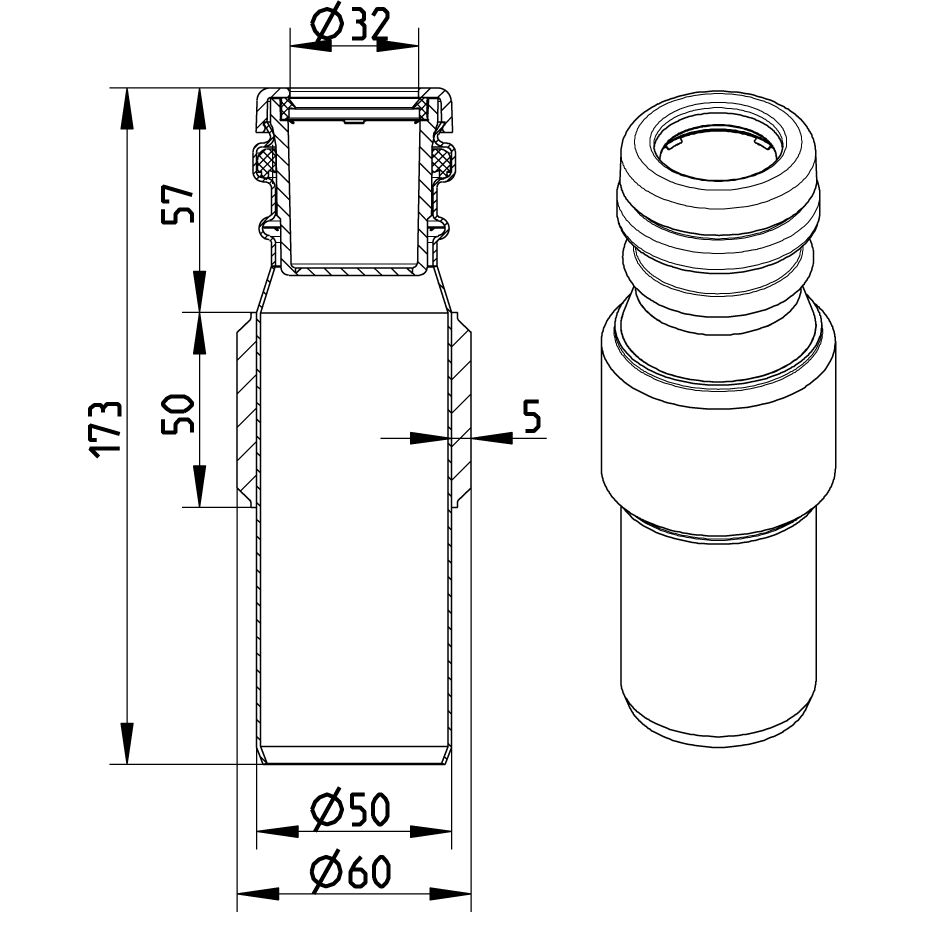

PENETRATION WITH SLEEVE - (866.032.050.05 S)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel-wash basin
Type no.: 866.032.050.05 S
EAN no.: 5705499403992
NRF no.: 2172763
PENETRATION WITH SLEEVE
-Diameter: Ø32/50mm
-For wash basin
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 128 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 173 |
| Outlet Diameter (mm) | 32 |
| Weight (kg) | 0,60 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
