PENETRATION WITH SLEEVE - (866.015.040.05F)
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.015.040.05F
EAN no.: 5705499140613

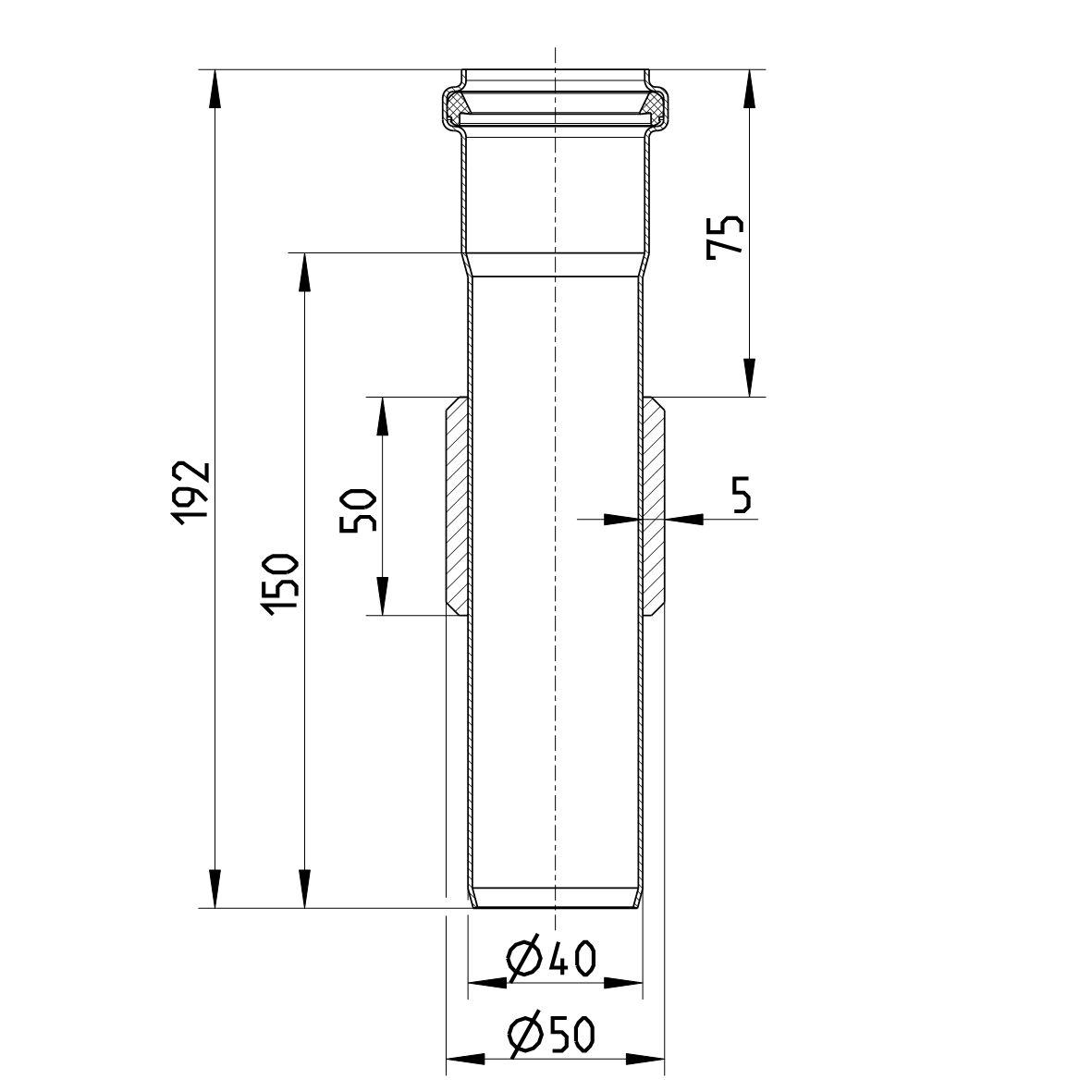

PENETRATION WITH SLEEVE
- Diameter: Ø40mm
- With SI sealing
- Diameter: Ø40mm
- Deck: Steel
- Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 150 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,47 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe Achilles Certificate - 46702-22 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA ClassNK - Type866, TA21159E(N)_21FPA11DA
