PENETRATION WITH SLEEVE - (866.015.050.05F)

Product image of a penetration from the series Penetration-welding sleeve-steel.

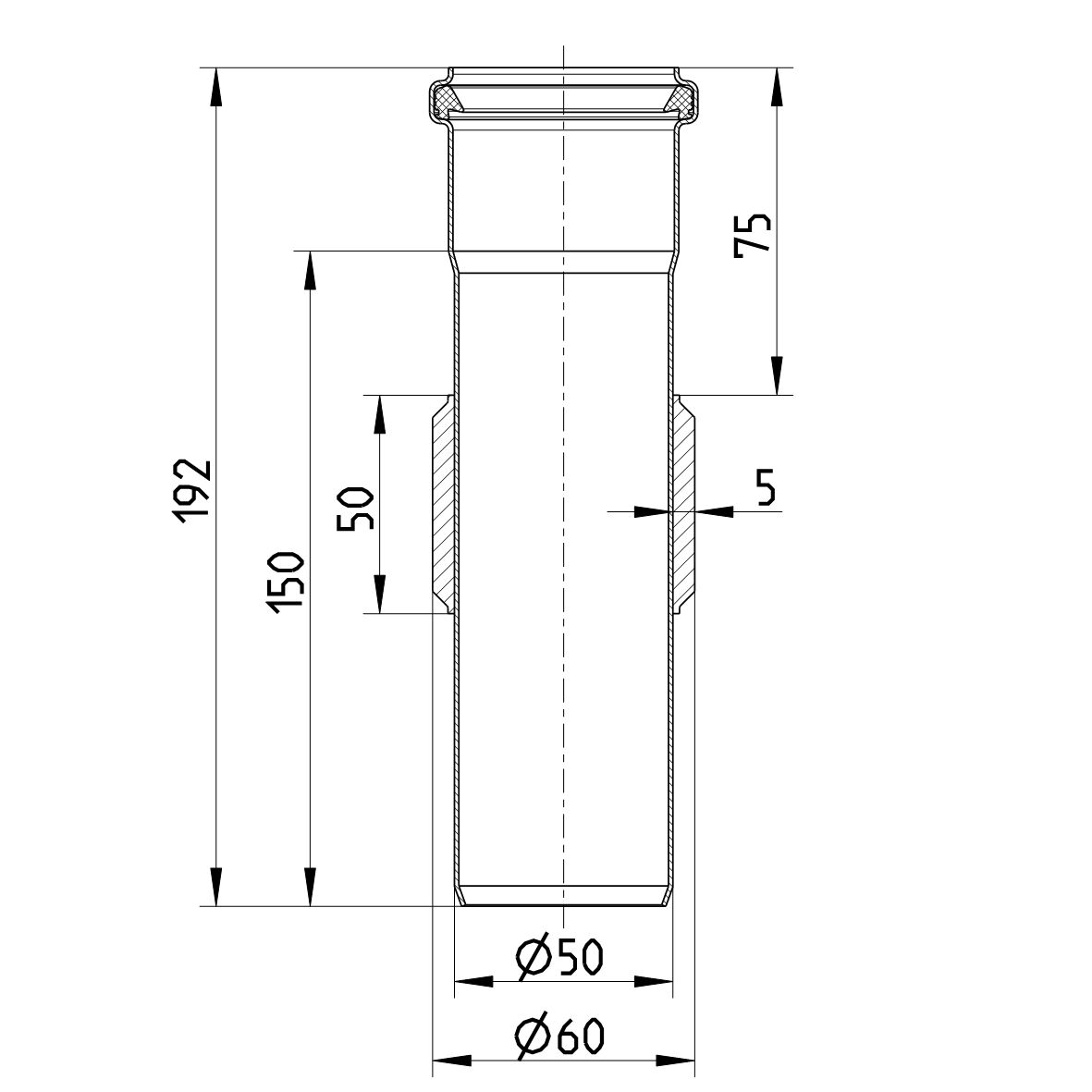

Line Drawing - Penetration-welding sleeve-steel

Part Of the Series: Penetration-welding sleeve-steel

Type no.: 866.015.050.05F

EAN no.: 5705499140644

PENETRATION WITH SLEEVE
- Diameter: Ø50mm
- With SI sealing
- Diameter: Ø50mm
- Deck: Steel
- Stainless steel: AISI304/EN1.4301

Product Specification
Deck	Steel
EC/MED (Bulkhead)	A0-A60
EC/MED (Deck)	A0-A60
Length (mm)	150
Material	AISI 304
Material (EN)	EN 1.4301
Outlet Diameter (mm)	50
Weight (kg)	0,56

Downloads
- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approval Information

For approval information, please refer to the below approval certificates.

HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia DNV - MEDB000016W, Rev8, Penetrations with SI sealing BLÜCHER® EuroPipe EPD DNV - MERB0001N3Y, Rev0 TÜRK LOYDU - 25041616077231247 Declaration of Conformity Welded penetrations KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Achilles Certificate - 46702 Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Bureau Veritas, 02375-I0 Pipes & Fittings
